Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 3 illustrations

Illustrations

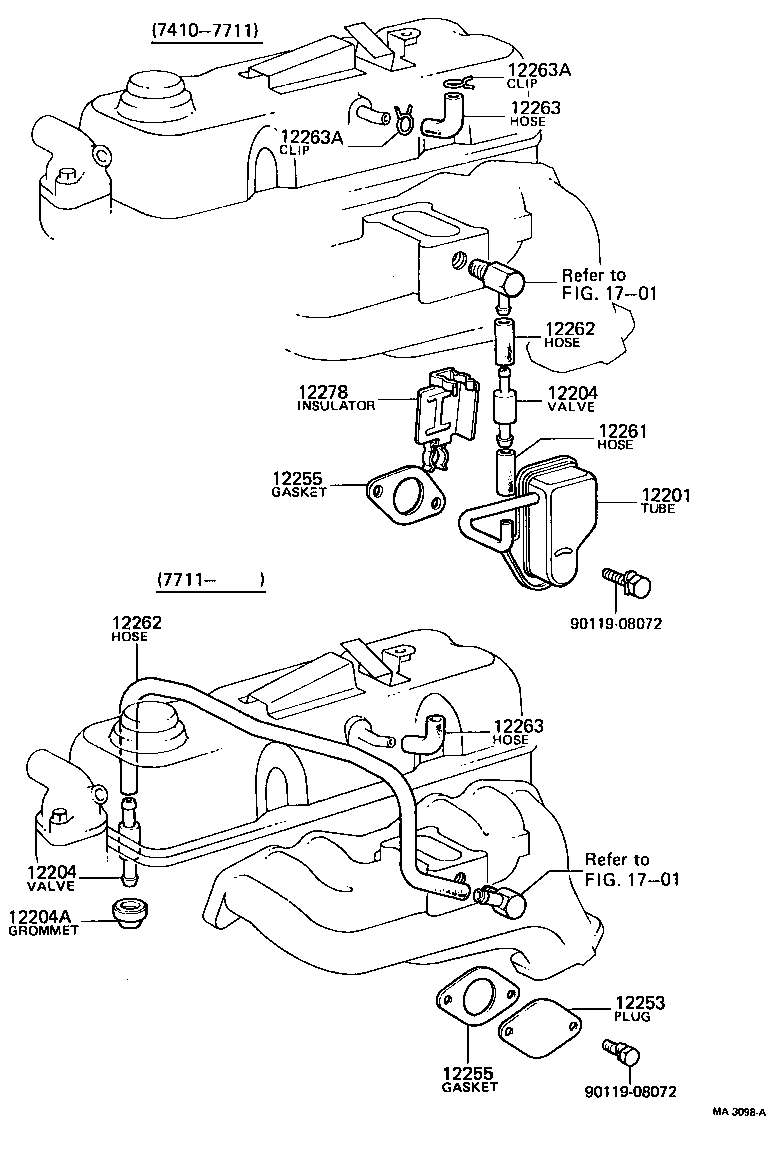

Figure MA3179 MA3179 1974-10 → 1978-02 Figure MA3189B MA3189B 1978-02 → 1979-08 Figure MA3098A MA3098A 1974-10 → 1979-08

Part groups

PNCDescription
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12253 Plug, Ventilation Hole
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12278 Insulator, Ventilation Hose Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
