Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

20 part groups · 4 illustrations

Illustrations

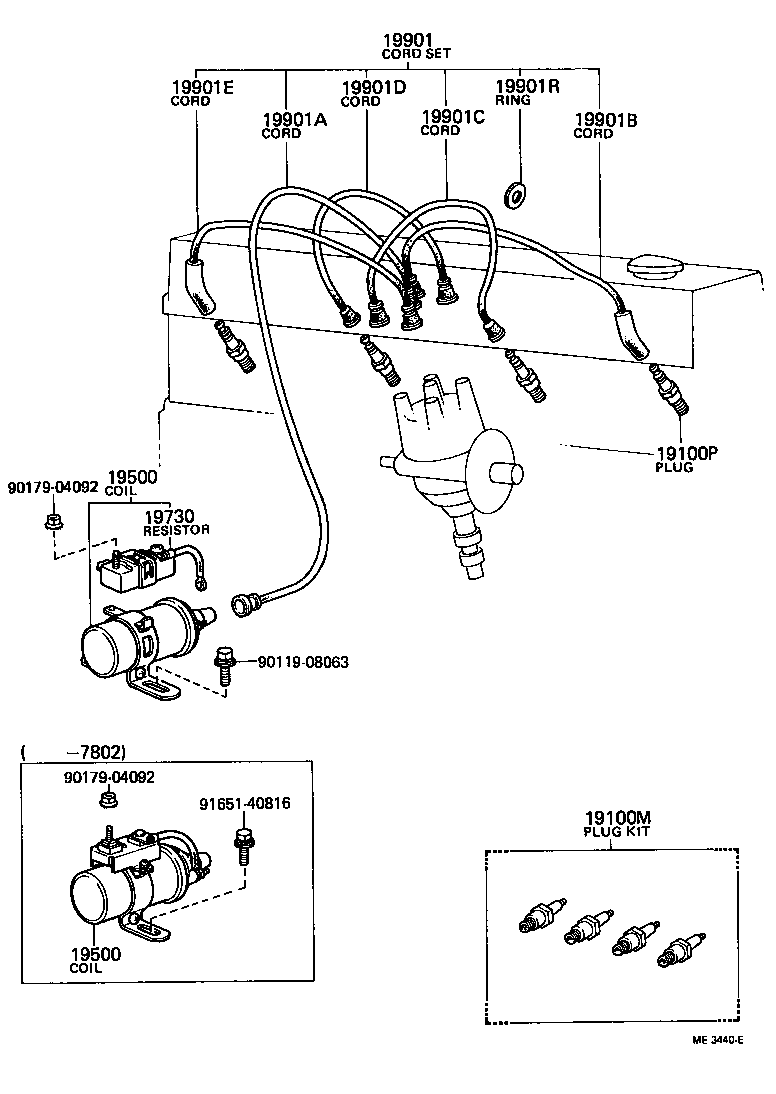

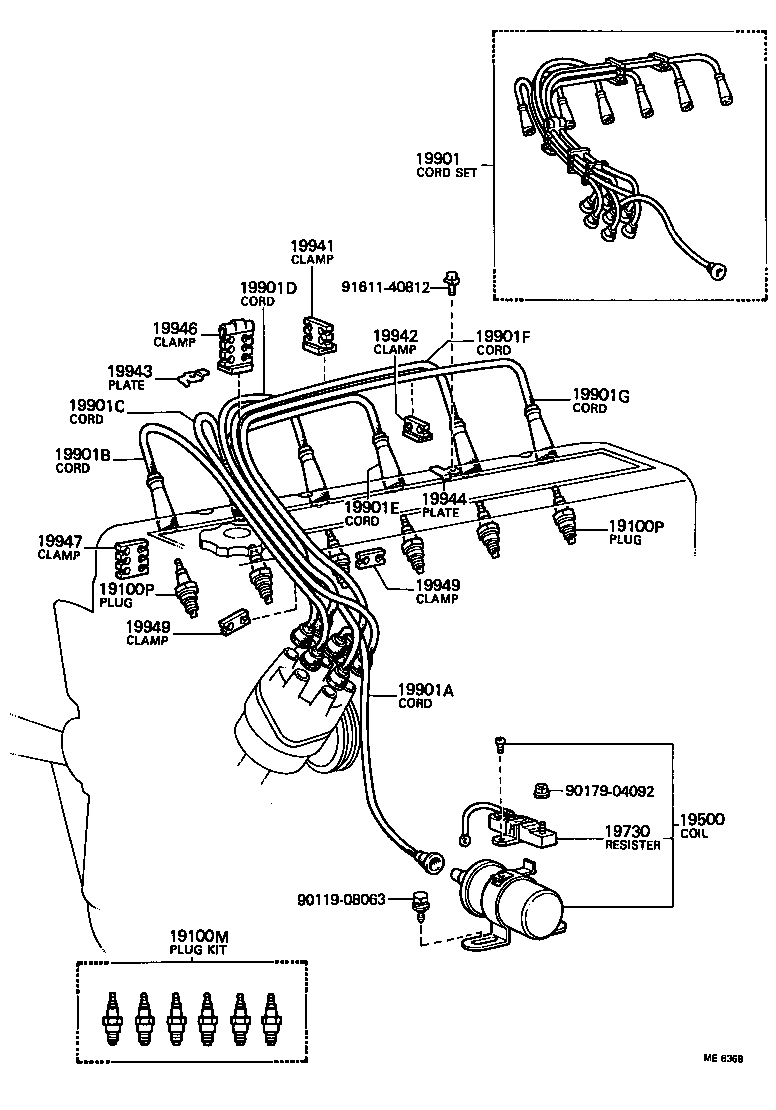

Figure ME3393E ME3393E 1974-10 → 1976-04 Figure ME6368 ME6368 1976-04 → 1976-11 Figure ME6368 ME6368 1976-11 → 1979-08 Figure ME3440E ME3440E 1974-10 → 1979-08

Part groups

PNCDescription
19100M Plug Kit, Spark
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19944 Plate, Resistive Cord Clamp Support, NO.2
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
