Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

11 part groups · 2 illustrations

Illustrations

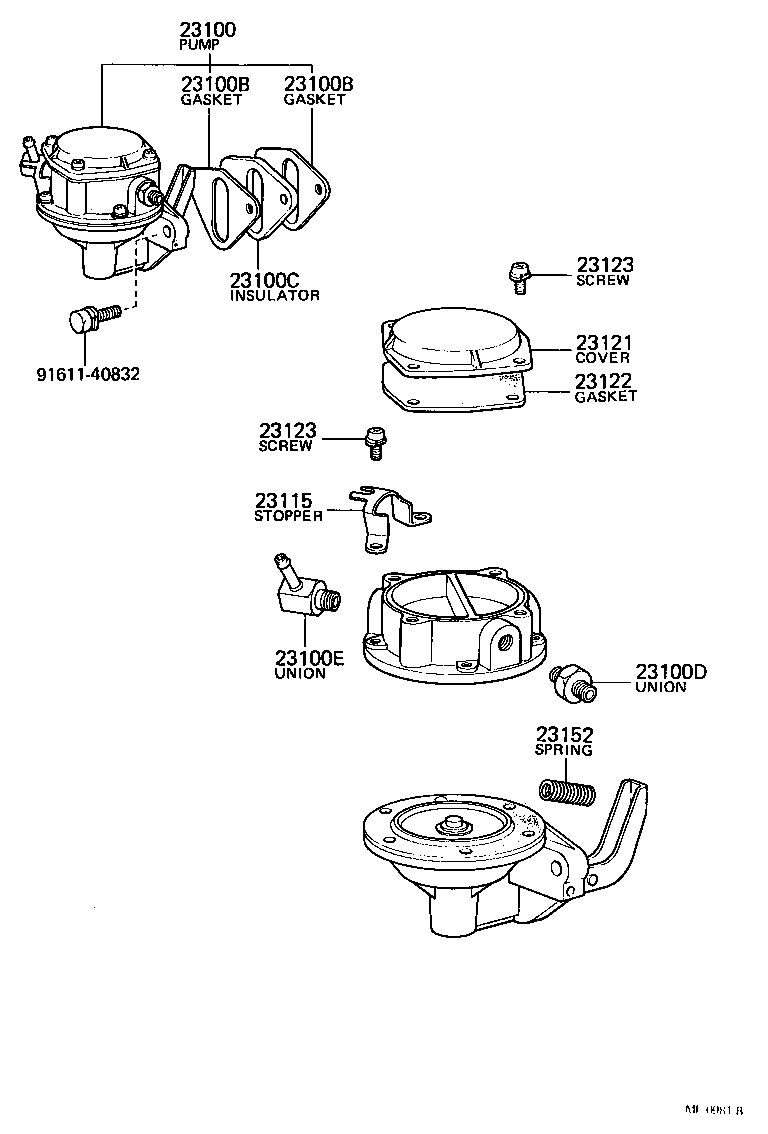

Figure MF1066D MF1066D 1974-10 → 1979-08 Figure MF0981B MF0981B 1974-10 → 1979-08

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23115 Stopper, Union Nipple
23121 Cover, Fuel Pump
23122 Gasket, Fuel Pump Cover
23123 Screw, Cover Set, NO.1
23124 Washer, Cover Set, NO.2
23152 Spring, Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
