Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General
Discontinued model
Data version 1980-01

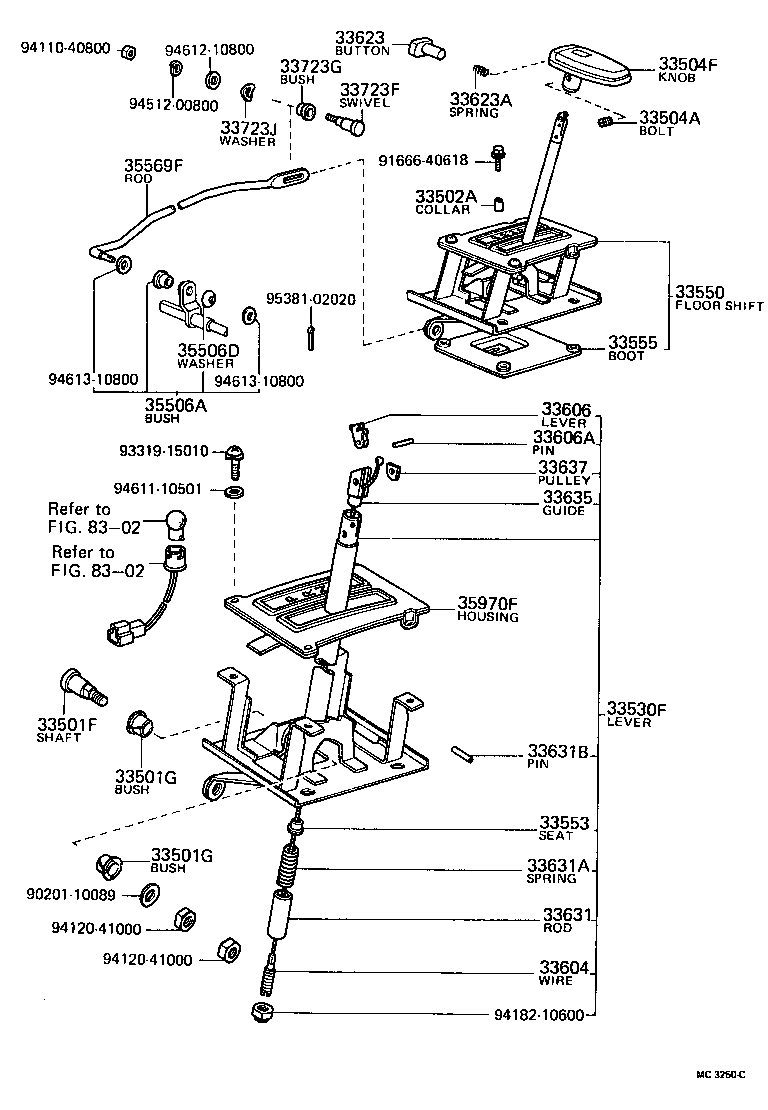

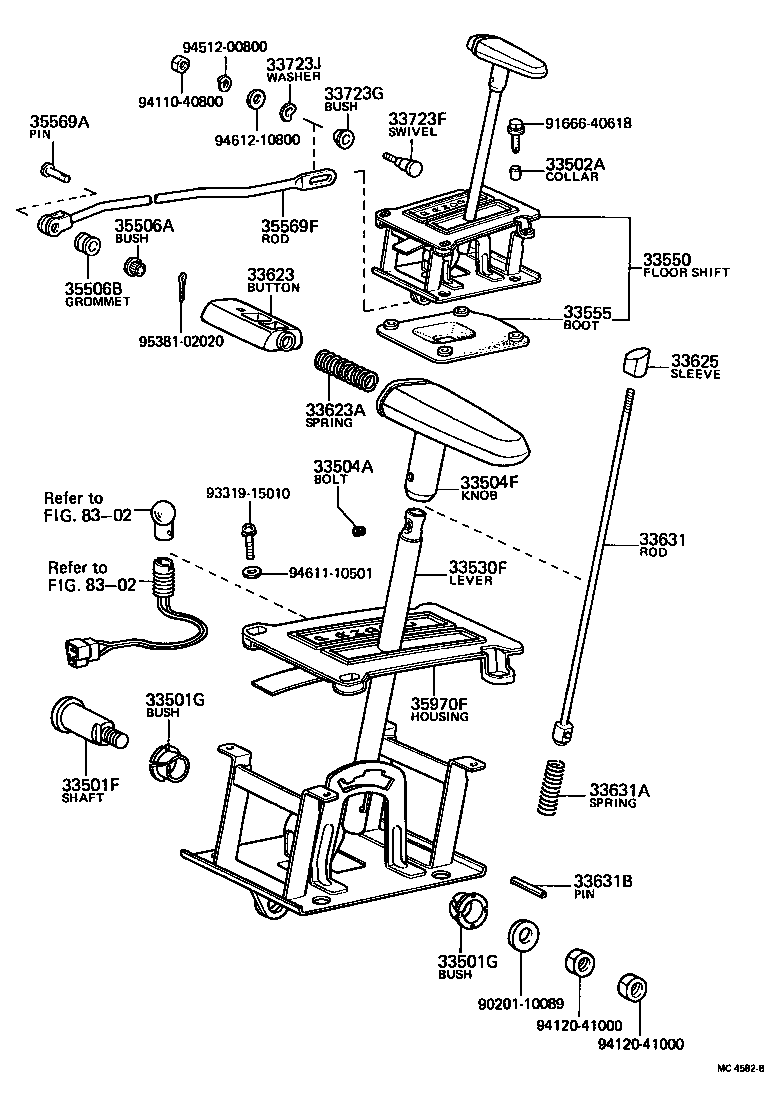

Shift Lever & Retainer
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33143 | Plate, Extension Housing Oil Baffle |
| 33501F | Shaft Sub-assy, Control (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33504A | Bolt OR Pin (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33530A | Spring, Compression (FOR SHIFT LEVER) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33553 | Seat, Shift Lever Spring |
| 33555 | Boot, Shift Lever |
| 33599 | Gasket, Control Shift Lever Retainer, NO.2 |
| 33604 | Wire Sub-assy, Shift Lever |
| 33606 | Lever Sub-assy, Wire Pull |
| 33606A | Pin, Straight (FOR WIRE PULL LEVER) |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631B | Pin, Slotted Spring (FOR DETENT ROD) |
| 33635 | Guide, Wire (FOR SHIFT LEVER) |
| 33637 | Pulley, Wire (FOR SHIFT LEVER) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723J | Washer, Wave (FOR FLOOR SHIFT CONTROL ROD SETTING) |
| 35506A | Bush (FOR MANUAL VALVE LEVER SHAFT) |
| 35506B | Grommet (FOR MANUAL VALVE LEVER SHAFT) |
| 35506D | Washer, Wave (FOR MANUAL VALVE LEVER SHAFT) |
| 35569A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 35569F | Rod, Transmission Control, 1ST (FOR FLOOR SHIFT) |
| 35970F | Housing Assy, Position Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
