Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 4 illustrations

Illustrations

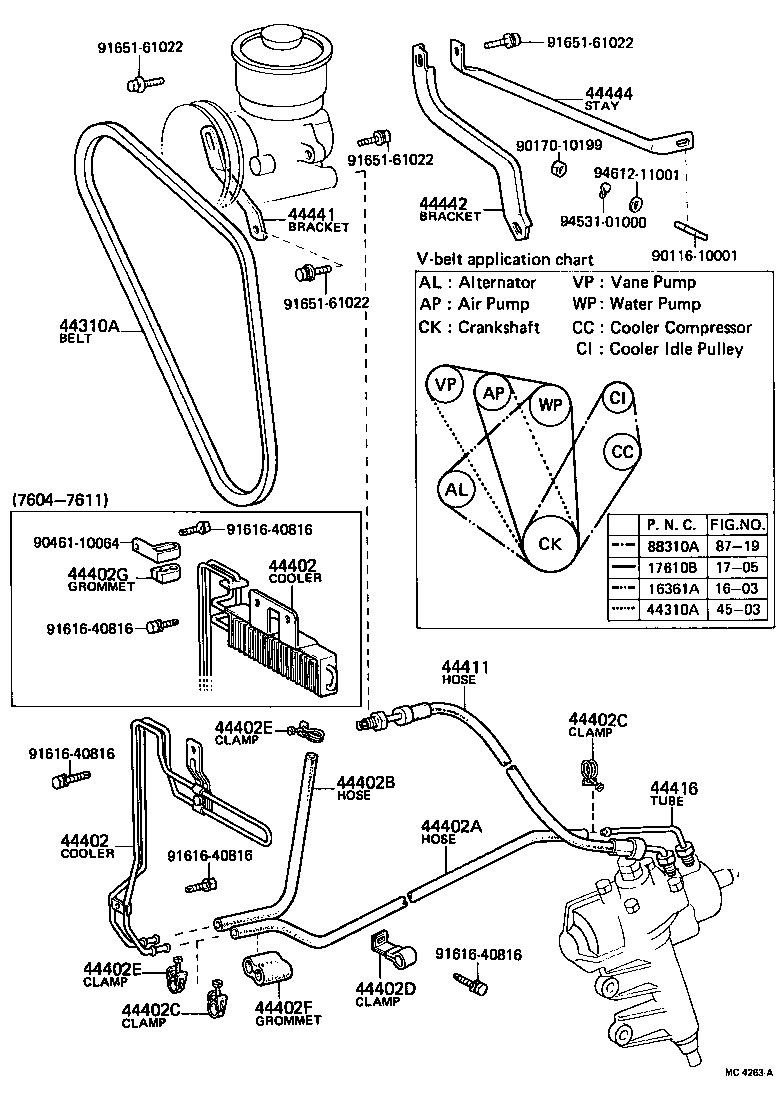

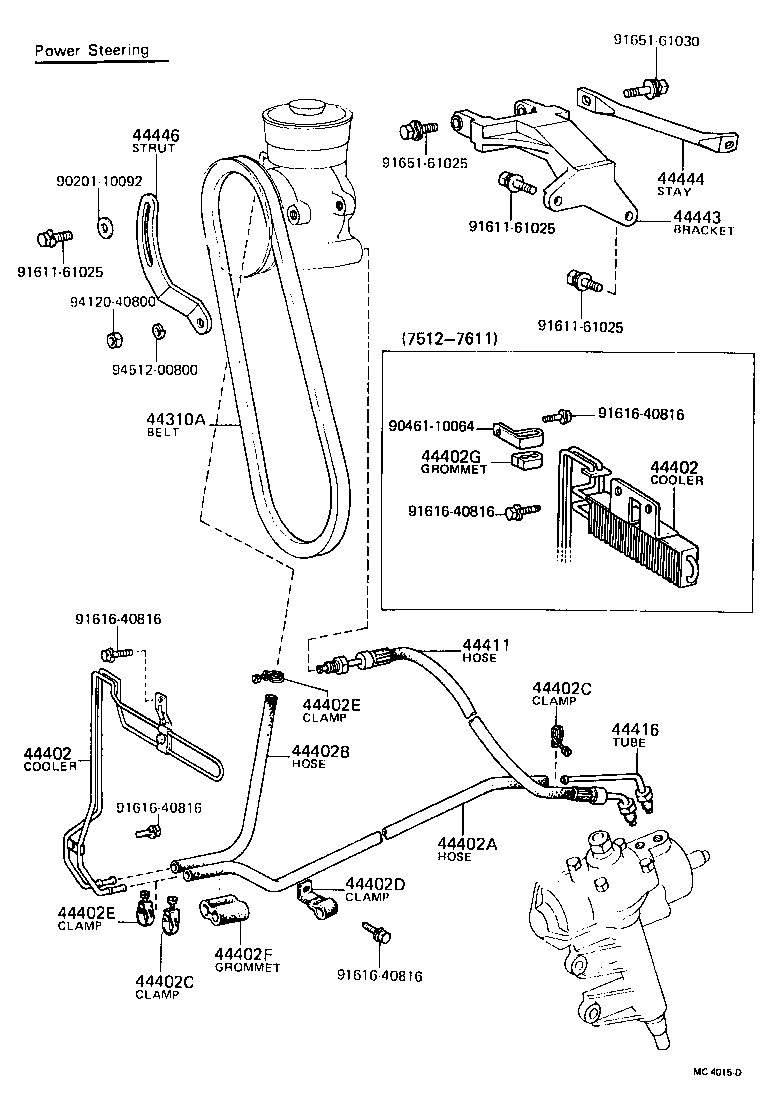

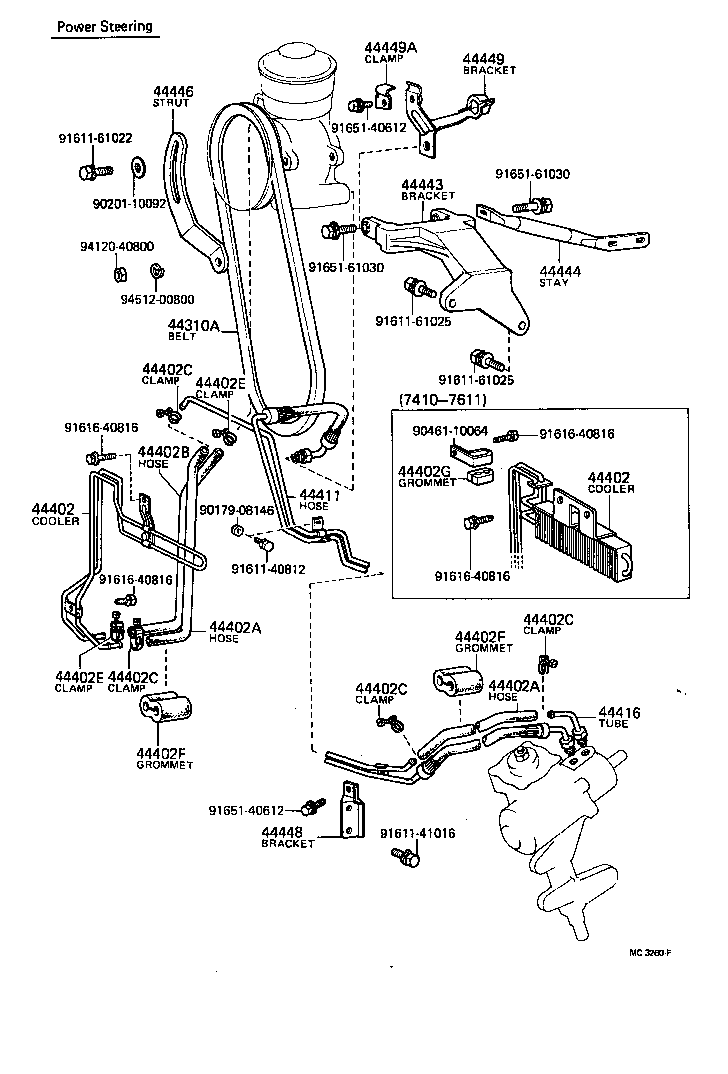

Figure MC3259C MC3259C 1974-10 → 1975-12 Figure MC4015D MC4015D 1975-12 → 1979-08 Figure MC4263A MC4263A 1976-04 → 1979-08 Figure MC3260F MC3260F 1974-10 → 1979-08

Part groups

PNCDescription
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402D Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44402F Grommet, Power Steering Oil Cooler Hose
44402G Grommet, Power Steering Oil Cooler Hose
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44448 Bracket, Pressure Feed Hose Support, NO.1
44449 Bracket, Pressure Feed Hose Support, NO.2
44449A Clamp, Pressure Feed Hose Support Bracket, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
