Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

27 part groups · 2 illustrations

Illustrations

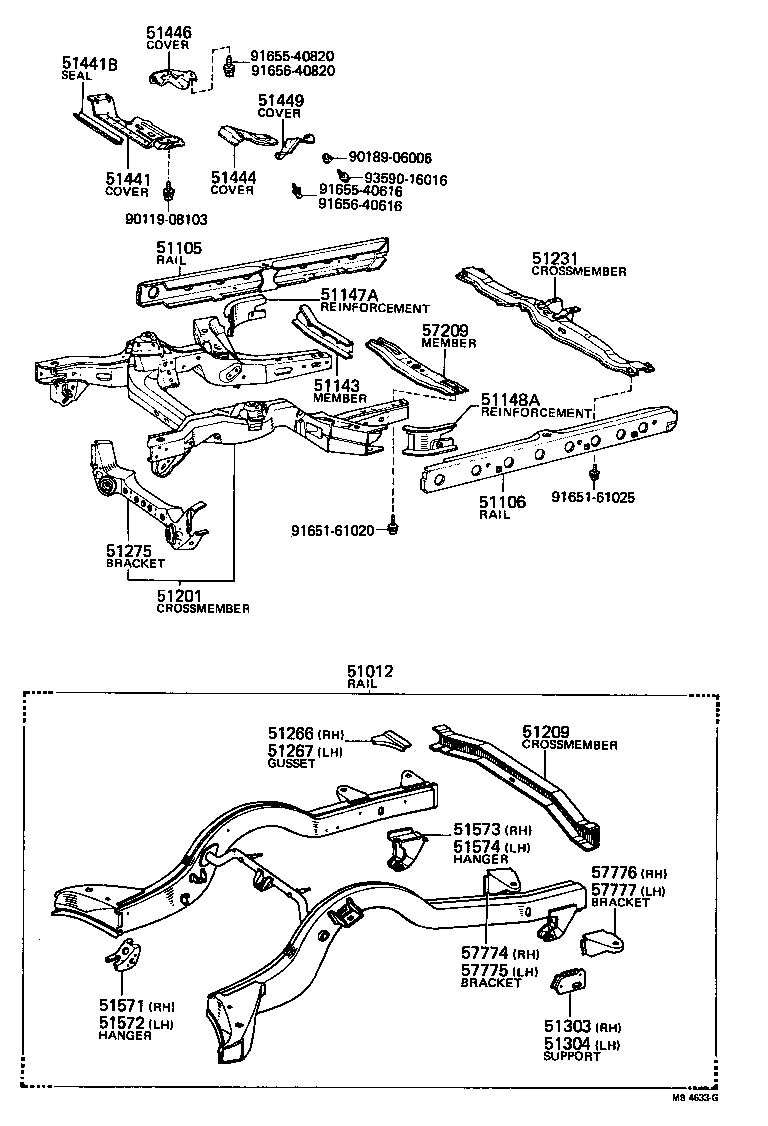

Figure MBB031 MBB031 1974-10 → 1979-08 Figure MB4633G MB4633G 1975-01 → 1979-08

Part groups

PNCDescription
51012 Rail Sub-assy, Rear Frame
51105 Rail Sub-assy, Center Frame, RH
51106 Rail Sub-assy, Center Frame, LH
51143 Reinforcement, Side Rail, Rear RH
51147A Reinforcement, Center Frame Rail, Front RH
51148A Reinforcement, Center Frame Rail Front, LH
51201 Crossmember Sub-assy, Front Suspension
51209 Crossmember Sub-assy, Frame, NO.8
51231 Crossmember, Center Support Bearing
51266 Gusset, Frame Crossmember, RH
51267 Gusset, Frame Crossmember, LH
51275 Bracket Sub-assy, Strut Bar
51303 Support Sub-assy, Rear Bumper Arm, RH
51304 Support Sub-assy, Rear Bumper Arm, LH
51441 Cover, Engine Under, NO.1
51441B Seal, Engine Under Cover TO Radiator Support
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51446 Cover, Front Frame Under, RH
51571 Hanger, Rear Spring, Front RH
51572 Hanger, Rear Spring, Front LH
51573 Hanger, Rear Spring, Rear RH
51574 Hanger, Rear Spring, Rear LH
57774 Bracket, Rear Frame Rear Body Mounting, NO.7 RH
57775 Bracket, Rear Frame Rear Body Mounting, NO.7 LH
57776 Bracket, Rear Frame Rear Body Mounting, NO.8 RH
57777 Bracket, Rear Frame Rear Body Mounting, NO.8 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
