Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

55 part groups · 8 illustrations

Illustrations

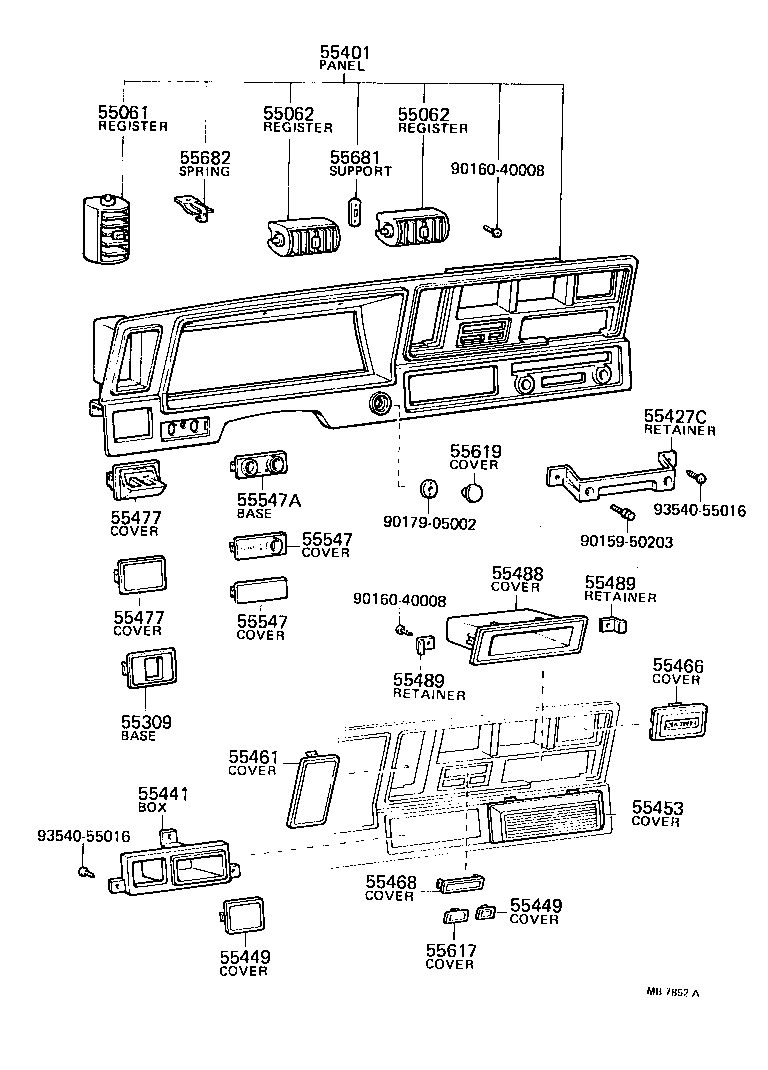

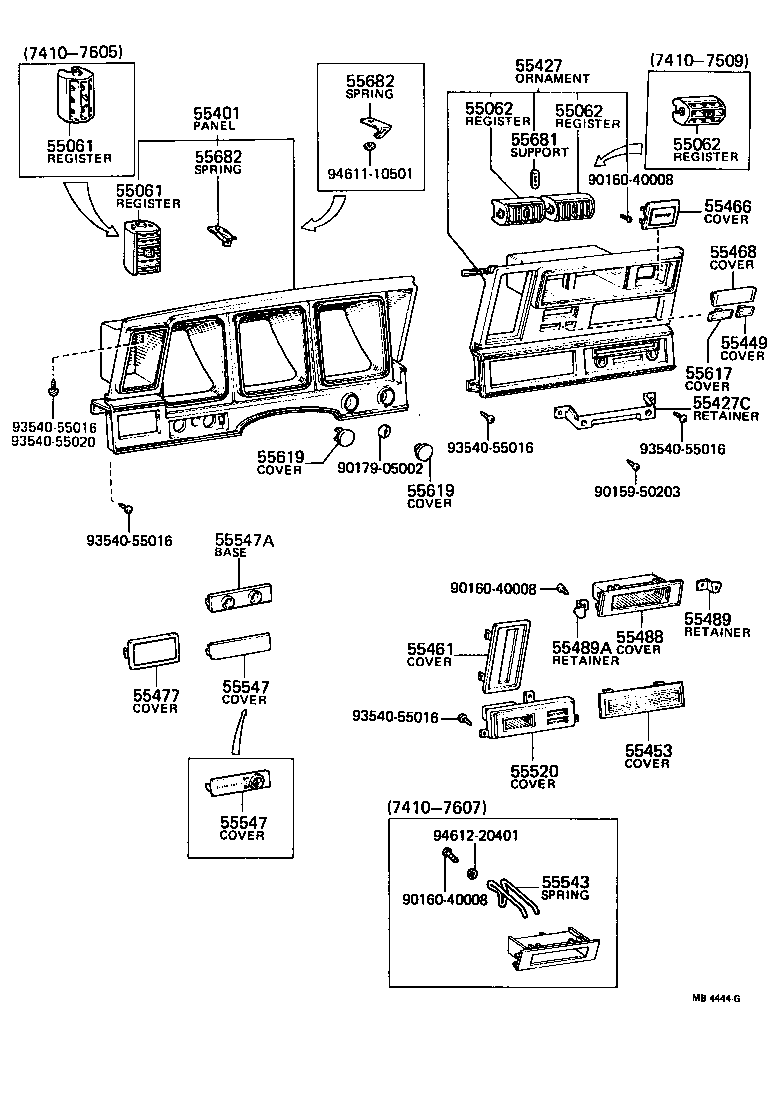

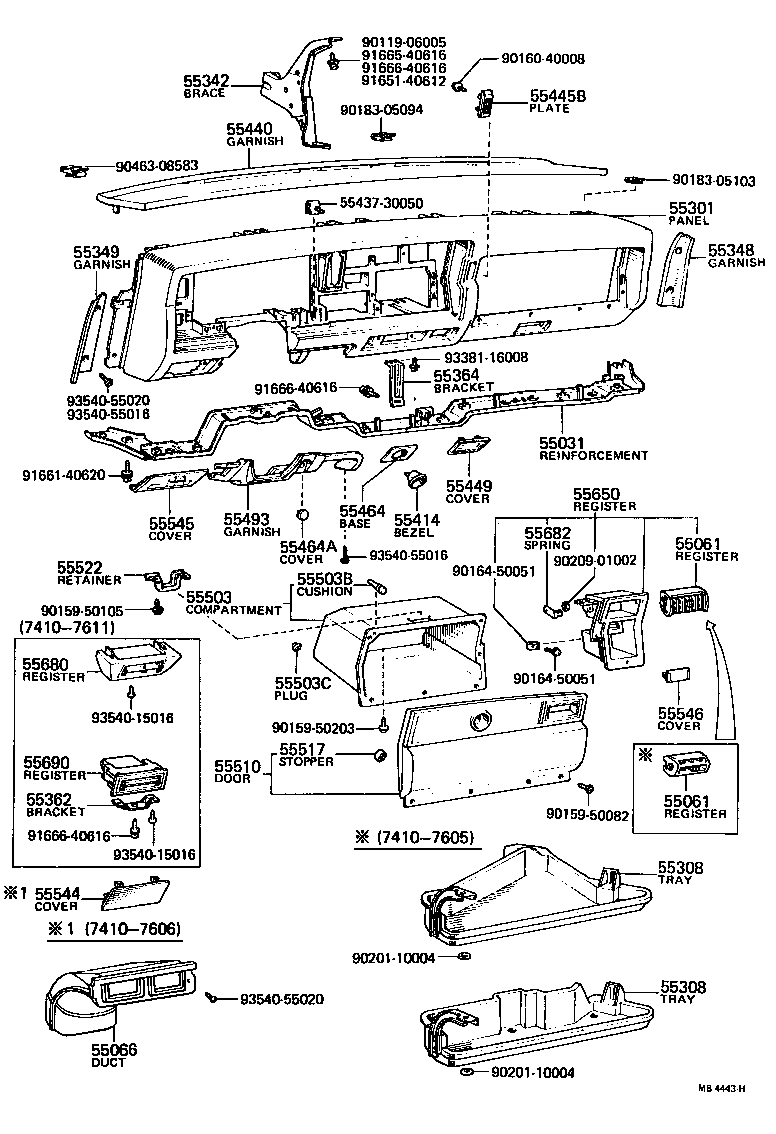

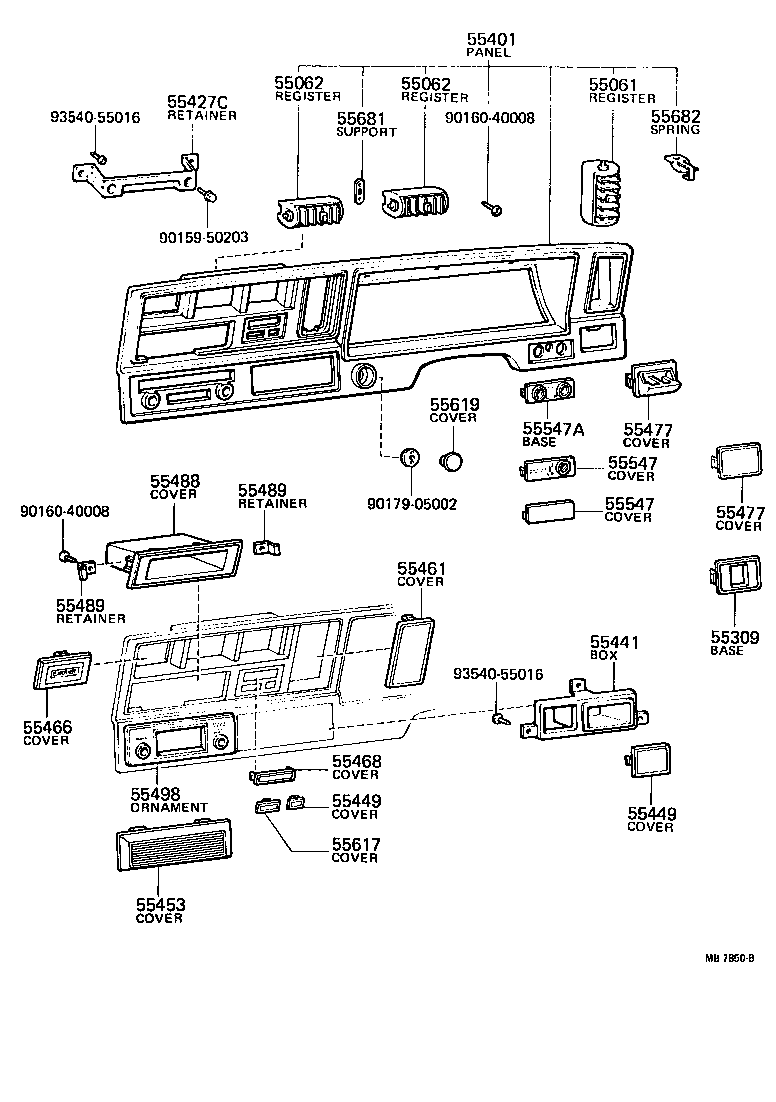

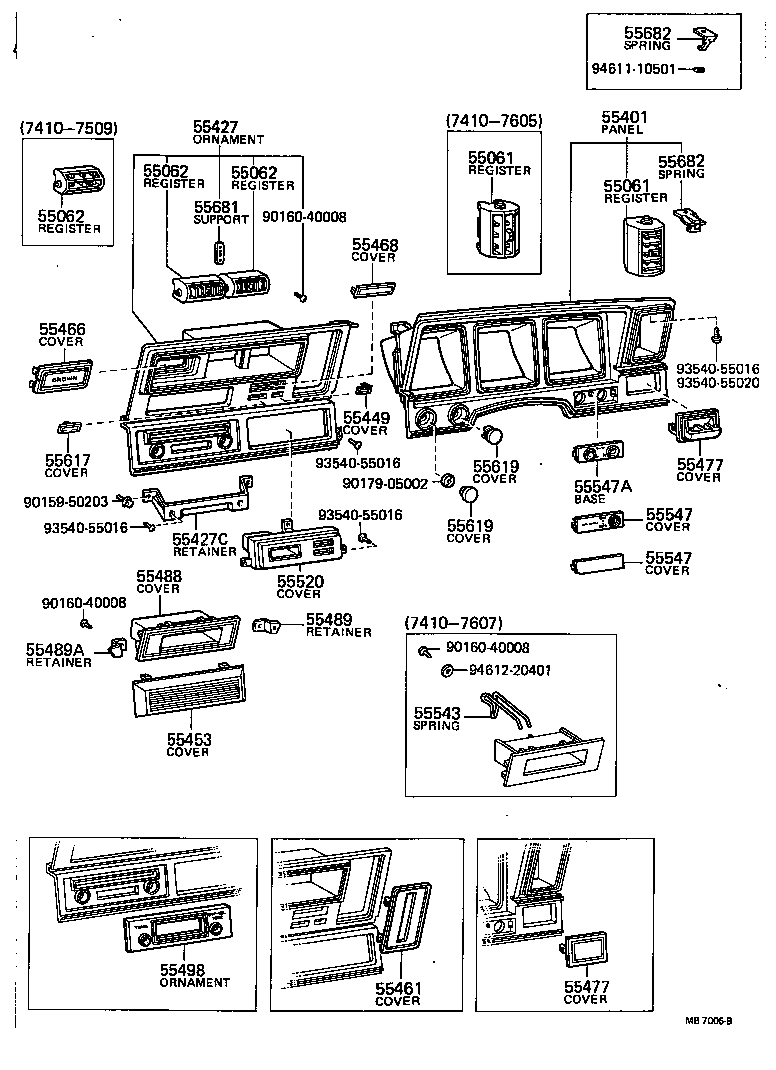

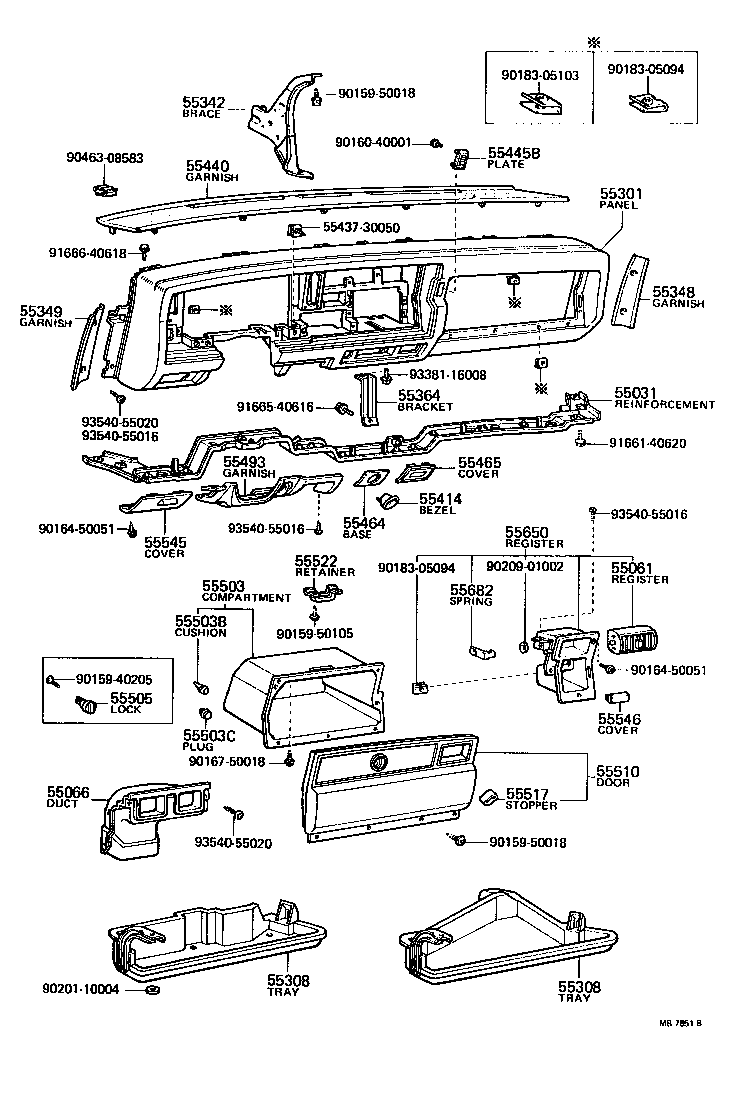

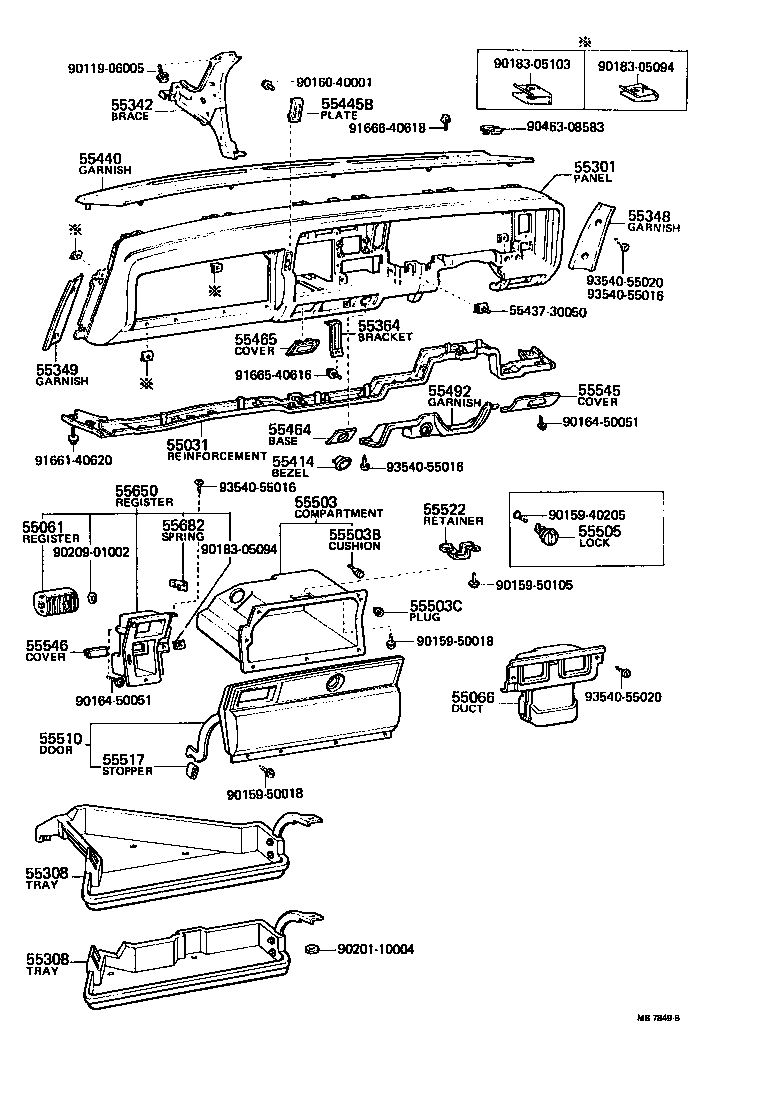

Figure MB4441I MB4441I 1974-10 → 1978-02 Figure MB7006B MB7006B 1974-10 → 1978-02 Figure MB7849B MB7849B 1978-02 → 1979-08 Figure MB7850B MB7850B 1978-02 → 1979-08 Figure MB4443H MB4443H 1974-10 → 1978-02 Figure MB4444G MB4444G 1974-10 → 1978-02 Figure MB7851B MB7851B 1978-02 → 1979-08 Figure MB7852A MB7852A 1978-02 → 1979-08

Part groups

PNCDescription
55031 Reinforcement, Instrument Panel, NO.1
55061 Register Sub-assy, Instrument Panel, NO.1
55062 Register Sub-assy, Instrument Panel, N0.2
55066 Duct Sub-assy, Air Outlet, Center
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55309 Base Sub-assy, Switch
55342 Brace, Instrument Panel, NO.2
55348 Garnish, Instrument Panel Side, RH
55349 Garnish, Instrument Panel Side, LH
55362 Bracket, Instrument Panel Lower Register Mounting
55364 Bracket, Radio Tuner Mounting
55401 Panel Sub-assy, Instrument Cluster Finish
55414 Bezel, Cigar Lighter Hole
55427 Ornament, Instrument Panel, Center
55427C Retainer, Instrument Panel Ornament
55440 Garnish, Instrument Panel, Center
55441 Box, Instrument Panel
55445B Plate, Instrument Panel Finish
55449 Cover, Cooler Switch Hole
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55464 Base, Cigarette Lighter
55464A Cover, Choke Knob Hole
55465 Cover, Instrument Hole
55466 Cover, Clock Hole
55468 Cover, Heater Switch Hole
55477 Cover, Overdrive Knob Hole
55488 Cover, Stereo Opening
55489 Retainer, Stereo Opening Cover, NO.1
55489A Retainer, Stereo Opening Cover, NO.2
55492 Garnish OR Safety Pad, Lower, RH
55493 Garnish OR Safety Pad, Lower, LH
55498 Ornament, Radio Tuner
55503 Compartment Sub-assy, Glove
55503B Cushion(FOR GLOVE COMPARTMENT)
55503C Plug, Hole(FOR GLOVE COMPARTMENT)
55505 Lock Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55517 Stopper, Glove Compartment Door Arm
55520 Cover Assy, OK Monitor Opening
55522 Retainer, Glove Compartment Male
55543 Spring, Stereo Opening Cover
55544 Cover, Instrument Panel Register Hole
55545 Cover, Fuse Box Opening
55546 Cover, Luggage Compartment Opener Switch Hole
55547 Cover, Remote Control Mirror Hole
55547A Base, Remote Control Mirror Hole
55617 Cover, Defogger Knob Hole
55619 Cover, Switch Hole
55650 Register Assy, Instrument Panel, NO.1
55680 Register Assy, Instrument Panel, Lower NO.1
55681 Support, Instrument Panel Register, NO.1
55682 Spring, Instrument Panel Register Support
55690 Register Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
