Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

24 part groups · 2 illustrations

Illustrations

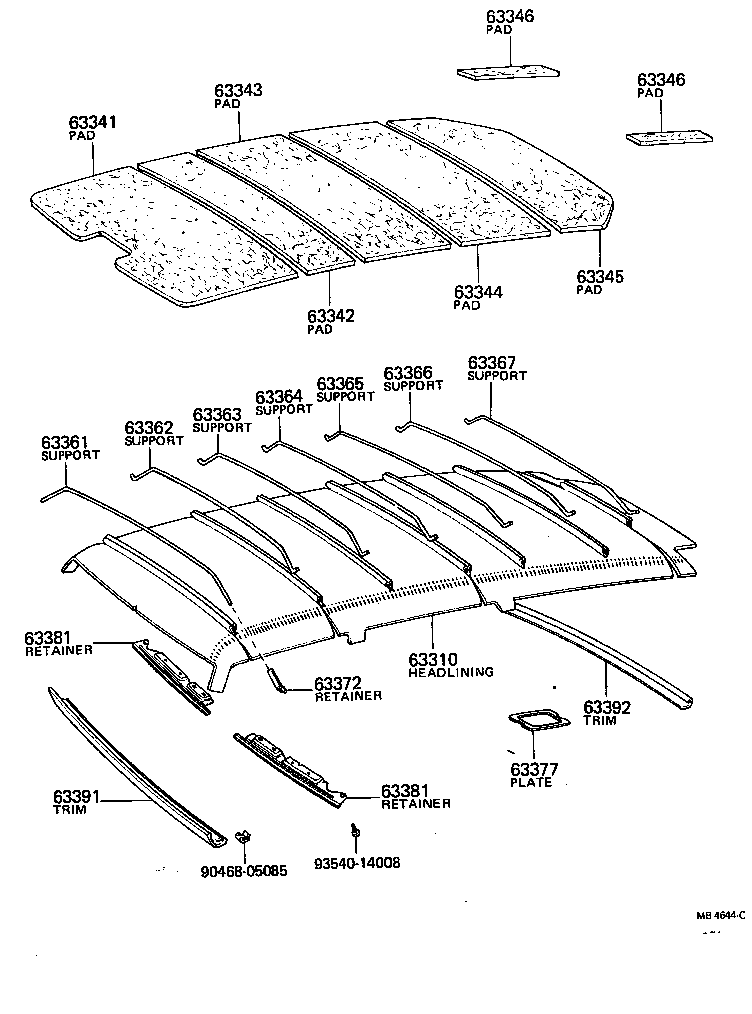

Figure MB4461E MB4461E 1974-10 → 1979-08 Figure MB4644C MB4644C 1975-01 → 1979-08

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63367 Support, Roof Headlining, NO.7
63368 Support, Roof Headlining, NO.8
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63377 Plate, Rear Room Lamp
63381 Retainer, Headlining, Front
63382 Retainer, Headlining, Rear Center
63387 Pad, Roof Headlining Forming
63388 Frame, Roof Headlining Forming
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
