Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

28 part groups · 3 illustrations

Illustrations

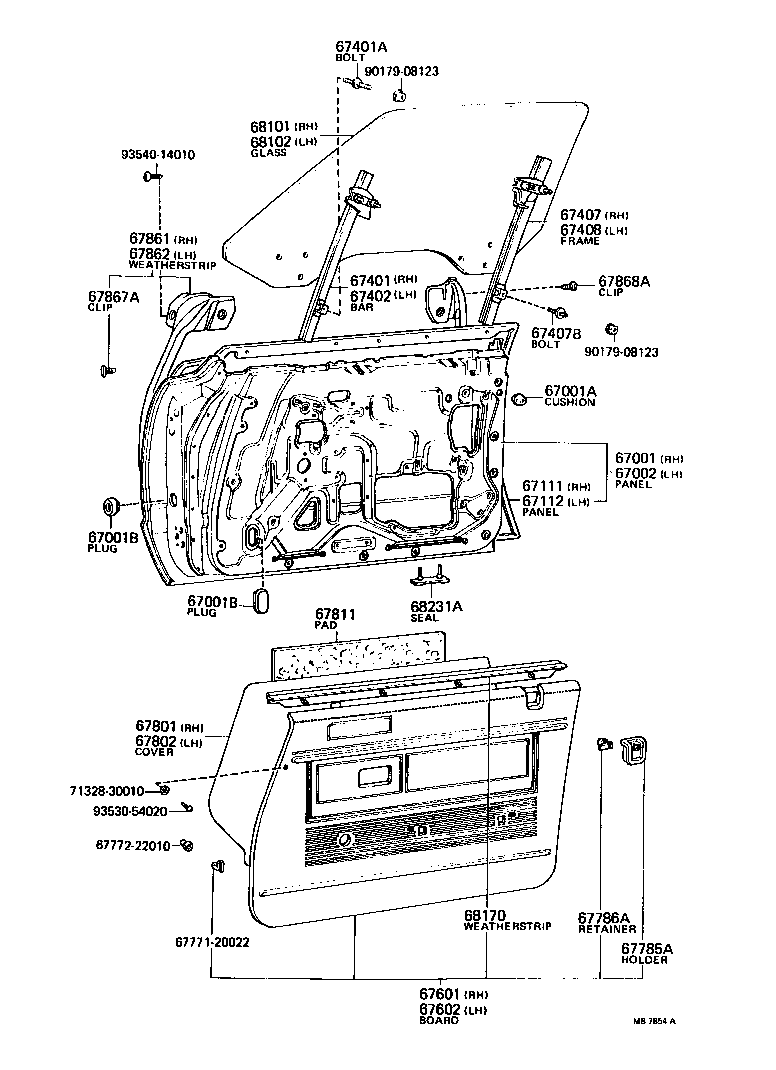

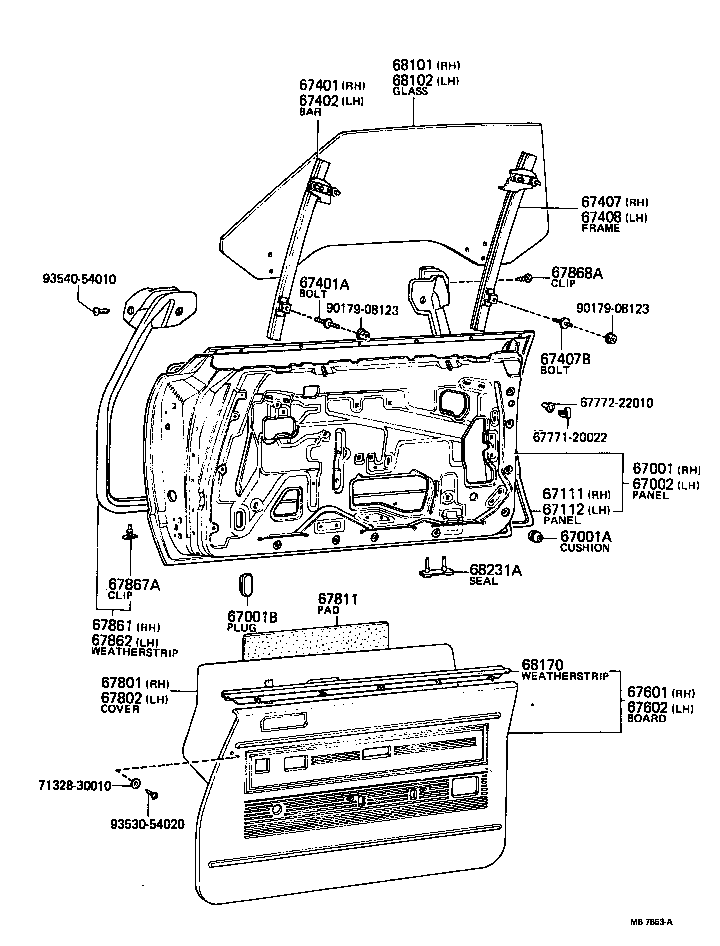

Figure MB7010B MB7010B 1974-10 → 1979-08 Figure MB7853A MB7853A 1975-01 → 1979-08 Figure MB7854A MB7854A 1974-12 → 1979-08

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67001B Plug, Hole(FOR FRONT DOOR PANEL)
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401 Bar Sub-assy, Front Door Window, Front RH
67401A Bolt, Stud(FOR FRONT DOOR DIVISION BAR)
67402 Bar Sub-assy, Front Door Window, Front LH
67407 Frame Sub-assy, Front Door, Rear Lower RH
67407B Bolt, Stud(FOR FRONT DOOR REAR LOWER FRAME)
67408 Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67786A Retainer, Door Locking Button Collar(FOR FRONT DOOR)
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67811 Pad, Front Door Silencer
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67868A Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68170 Weatherstrip Assy, Front Door Glass, Inner
68231A Seal, Door Drain Hole Dust(FOR FRONT DOOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
