Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

21 part groups · 2 illustrations

Illustrations

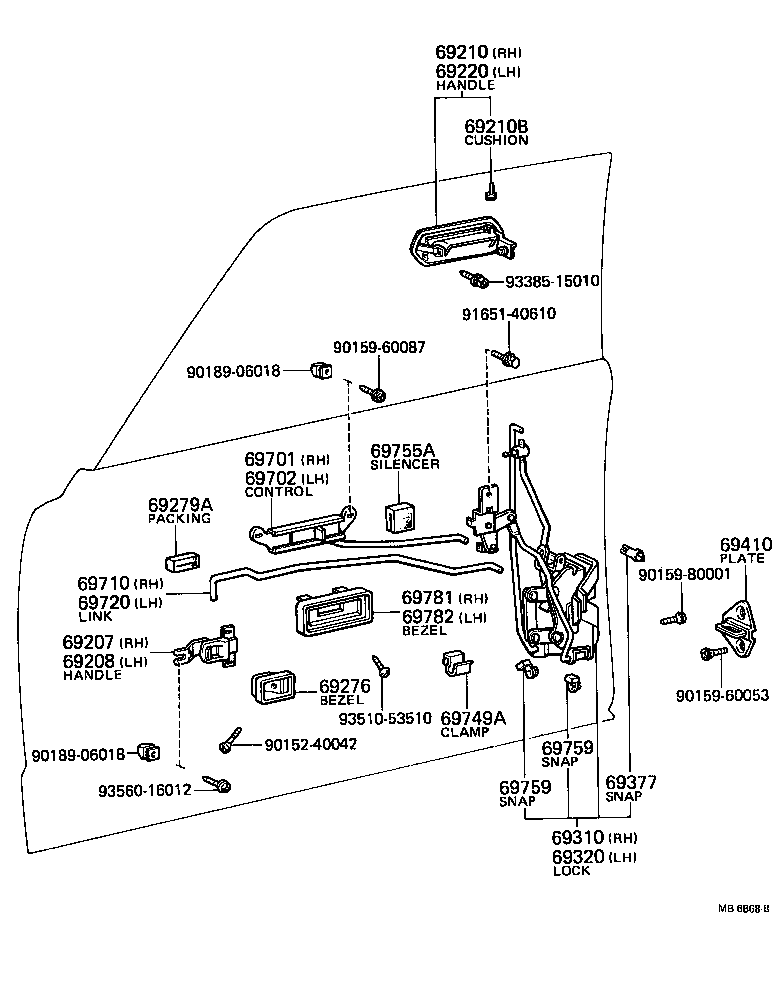

Figure MB4464E MB4464E 1974-10 → 1979-08 Figure MB6868B MB6868B 1974-10 → 1979-08

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69276 Bezel, Front Door Inside Handle
69279A Packing, Door Inside Handle(FOR FRONT DOOR)
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69377 Snap, Front Door Lock Control Rod
69410 Plate Assy, Front Door Lock Striker
69701 Control Sub-assy, Door Lock Remote, RH
69702 Control Sub-assy, Door Lock Remote, LH
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69747A Button, Door Locking(FOR FRONT DOOR)
69749A Clamp, Front Door Lock Link, NO.1
69755A Silencer, Front Door Lock Link
69759 Snap, Door Lock Control Link, NO.1
69781 Bezel, Door Locking, RH
69782 Bezel, Door Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
