Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

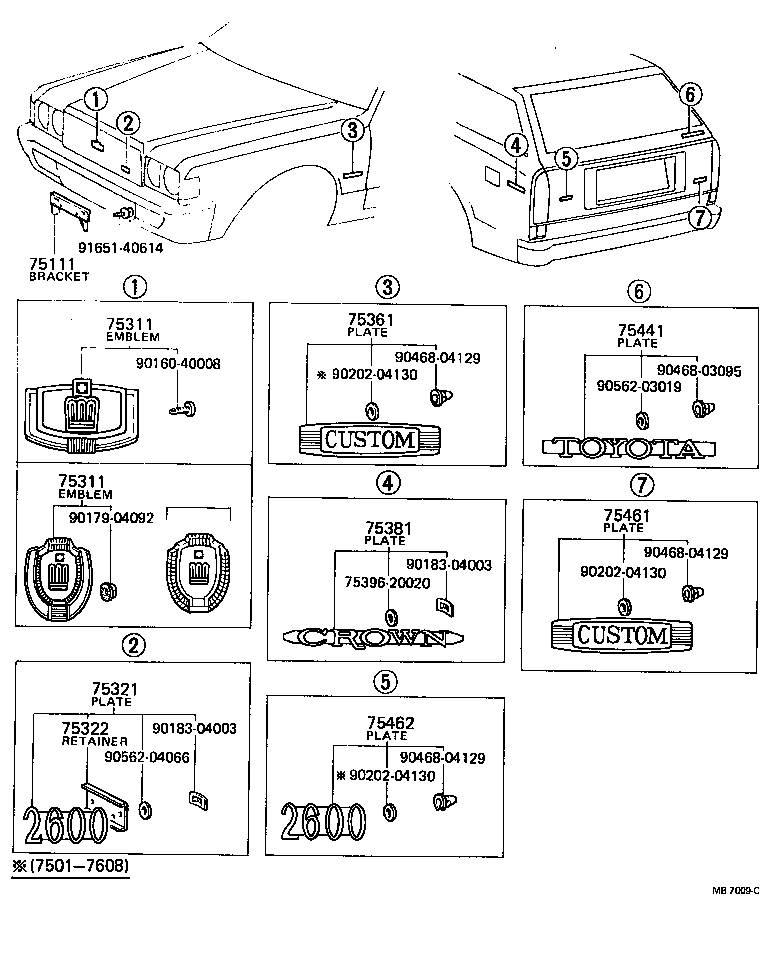

Figure MB7017F MB7017F 1974-10 → 1979-08 Figure MB7009C MB7009C 1975-01 → 1979-08

Part groups

PNCDescription
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75341 Plate, Instrument Panel Name, NO.1
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75373 Emblem, Quarter Window Moulding
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
