Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

18 part groups · 4 illustrations

Illustrations

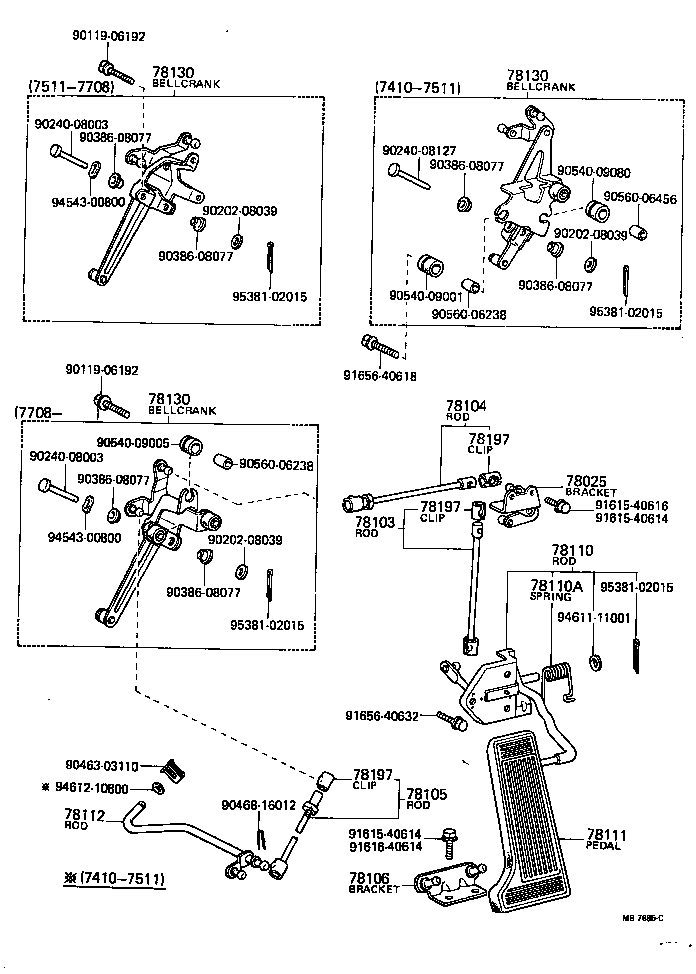

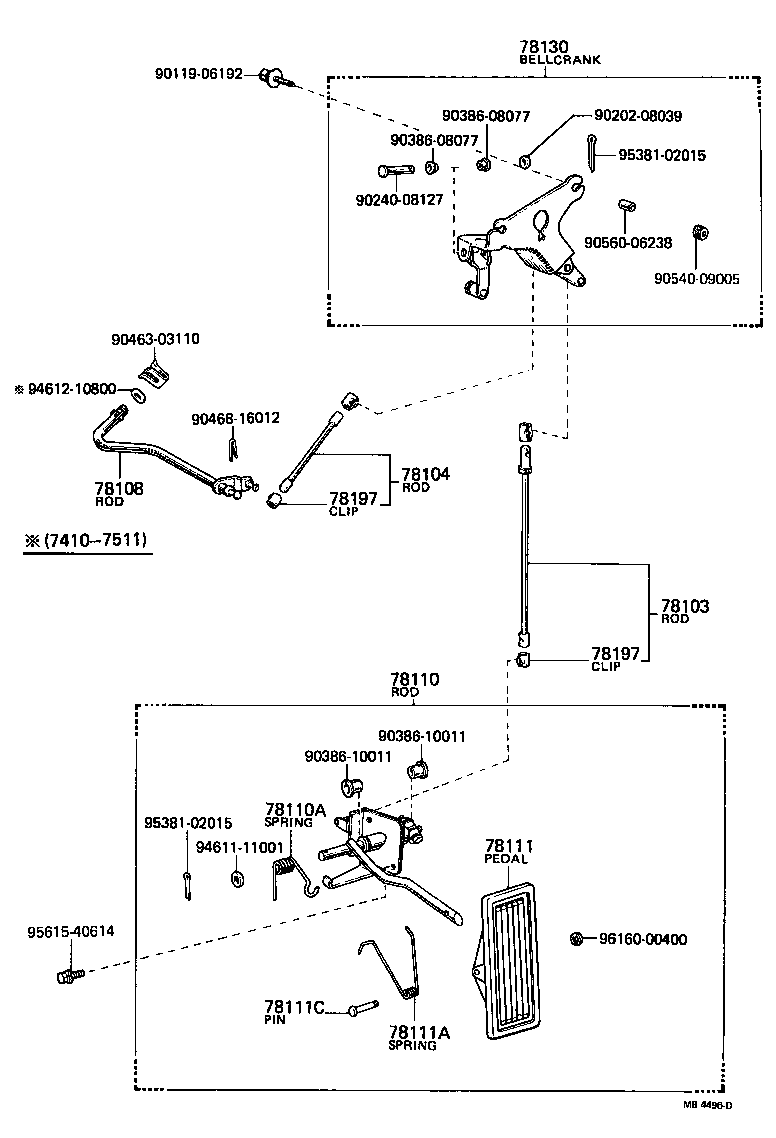

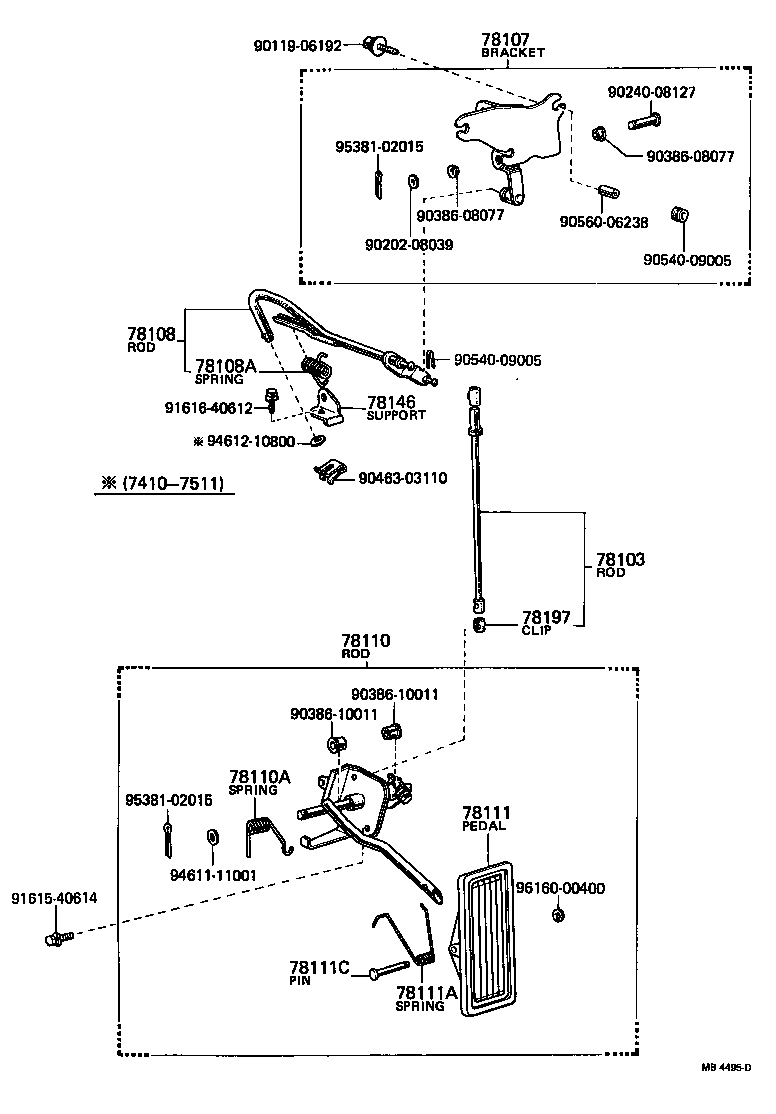

Figure MB6879A MB6879A 1974-10 → 1979-08 Figure MB7685C MB7685C 1974-10 → 1979-08 Figure MB4495D MB4495D 1974-10 → 1979-08 Figure MB4496D MB4496D 1974-10 → 1979-08

Part groups

PNCDescription
78025 Bracket Sub-assy, Accelerator Connecting Rod Arm
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78106 Bracket Sub-assy, Accelerator Pedal Support
78107 Bracket Sub-assy, Accelerator Torque Rod
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78108A Spring, Torsion (FOR ACCELERATOR CONNECTING ROD, NO.1)
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78130 Bellcrank Assy, Accelerator
78146 Support, Accelerator Torque Rod
78180 Wire Assy, Accelerator
78197 Clip, Accelerator Joint Ball
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
