Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

23 part groups · 3 illustrations

Illustrations

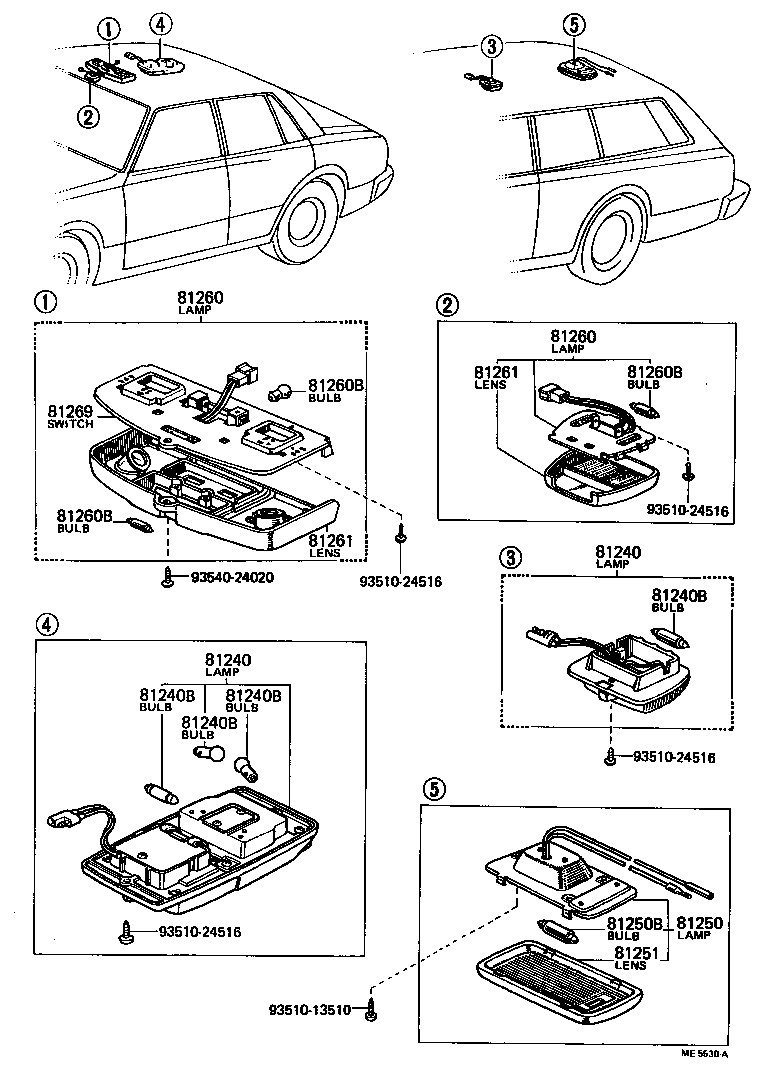

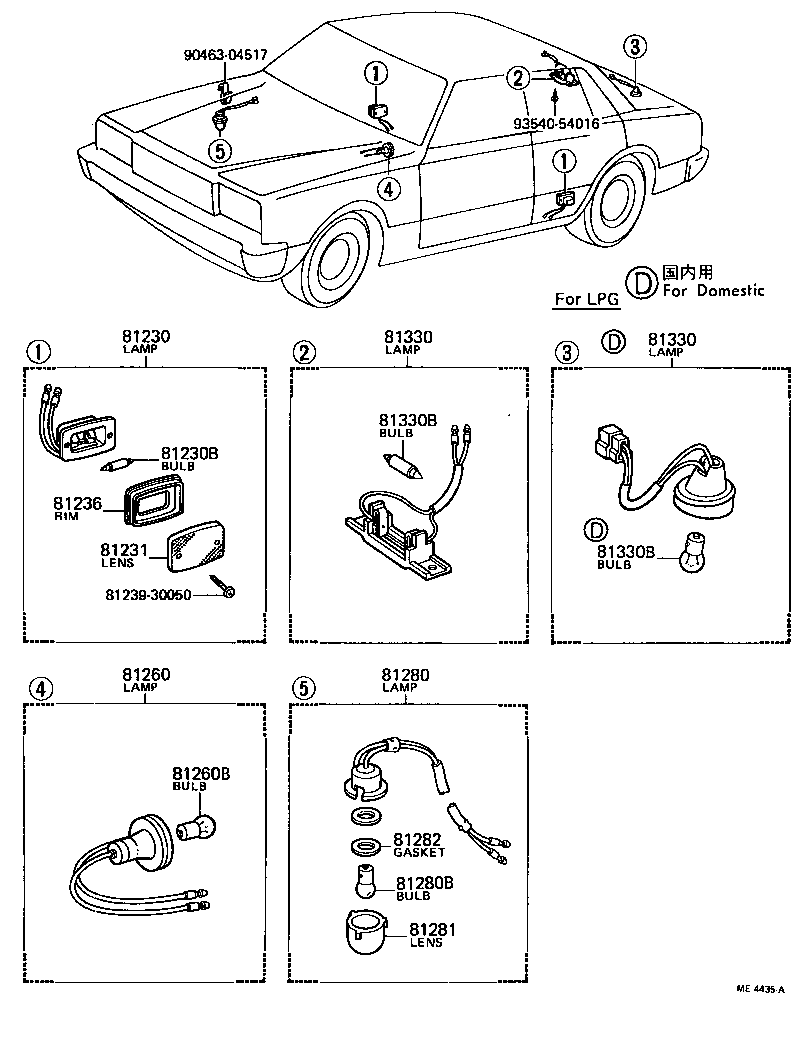

Figure ME3485D ME3485D 1974-10 → 1976-11 Figure ME5530A ME5530A 1976-11 → 1979-08 Figure ME4435A ME4435A 1974-10 → 1979-08

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81231 Lens, Courtesy Lamp
81236 Rim, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260B Bulb(FOR GLOVE BOX)
81261 Lens And Cover, Map Lamp
81269 Switch, Map Lamp
81280 Lamp Assy, Engine Room
81280B Bulb, Engine Room Lamp
81281 Lens, Engine Room Lamp
81282 Packing, Engine Room Lamp Lens
81310 Lamp Assy, Rear Room, RH
81310B Bulb, Rear Room Lamp
81319 Switch, Rear Room Lamp
81320 Lamp Assy, Rear Room, LH
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
