Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

11 part groups · 4 illustrations

Illustrations

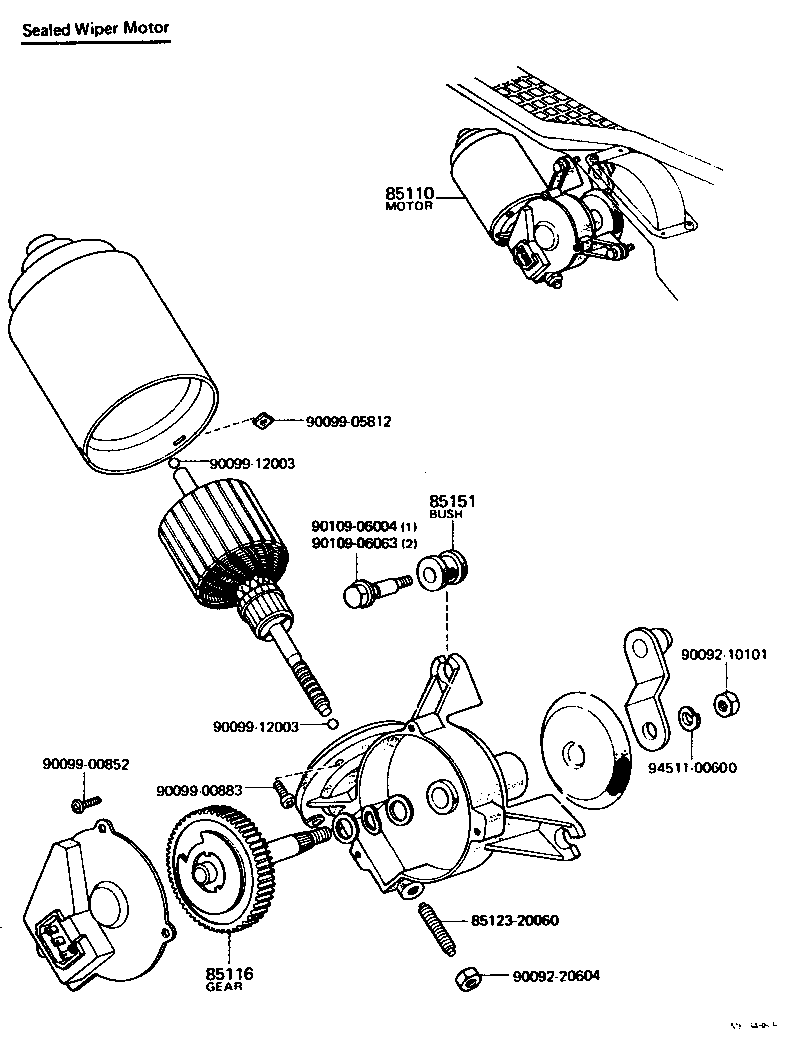

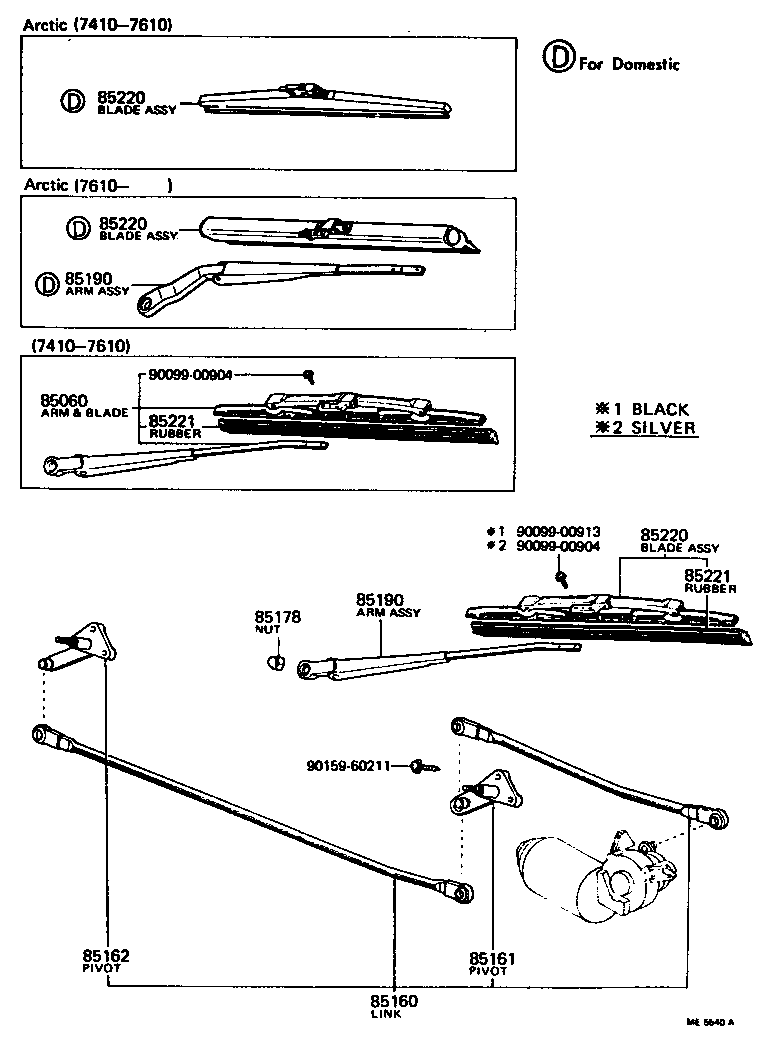

Figure ME3489B ME3489B 1975-11 → 1979-08 Figure ME5540A ME5540A 1974-10 → 1979-08 Figure ME3488B ME3488B 1974-10 → 1979-08 Figure ME3488B ME3488B 1977-02 → 1979-08

Part groups

PNCDescription
85060 Arm And Blade Assy, Windshield Wiper
85110 Motor Assy, Windshield Wiper
85116 Gear, Windshield Wiper Motor
85151 Bush, Windshield Wiper Motor Gear Housing Cover
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
