Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 2 illustrations

Illustrations

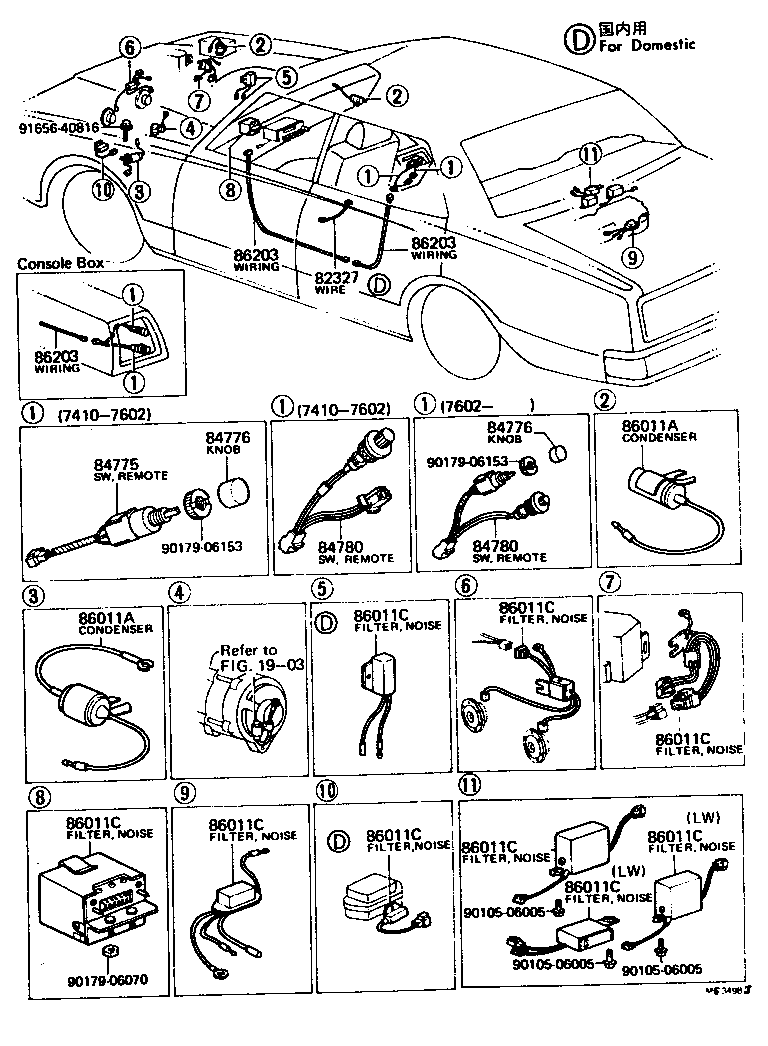

Figure ME3496F ME3496F 1974-10 → 1979-08 Figure ME3498J ME3498J 1974-10 → 1979-08

Part groups

PNCDescription
84775 Switch, Radio Remort Control
84776 Knob, Radio Remote Control Switch
84780 Switch Assy, Radio Remote Tuning
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86160 Speaker Assy, Front NO.1
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
