Toyota Crown
1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General
Discontinued model
Data version 1984-02

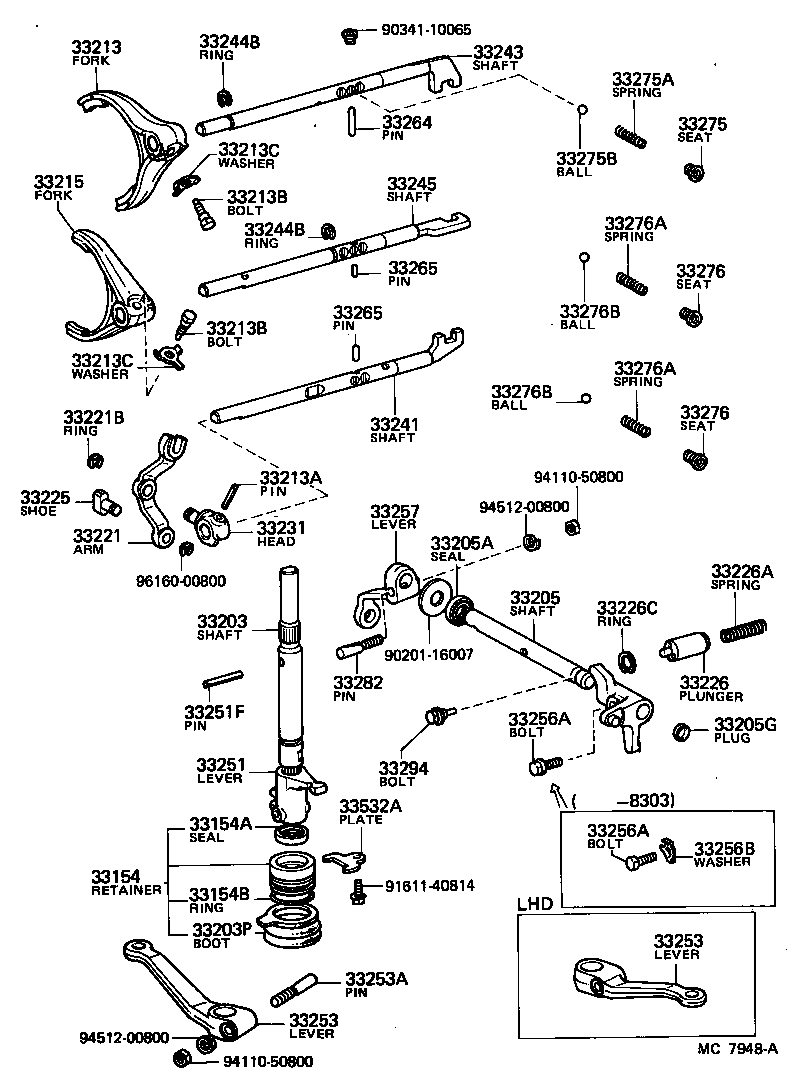

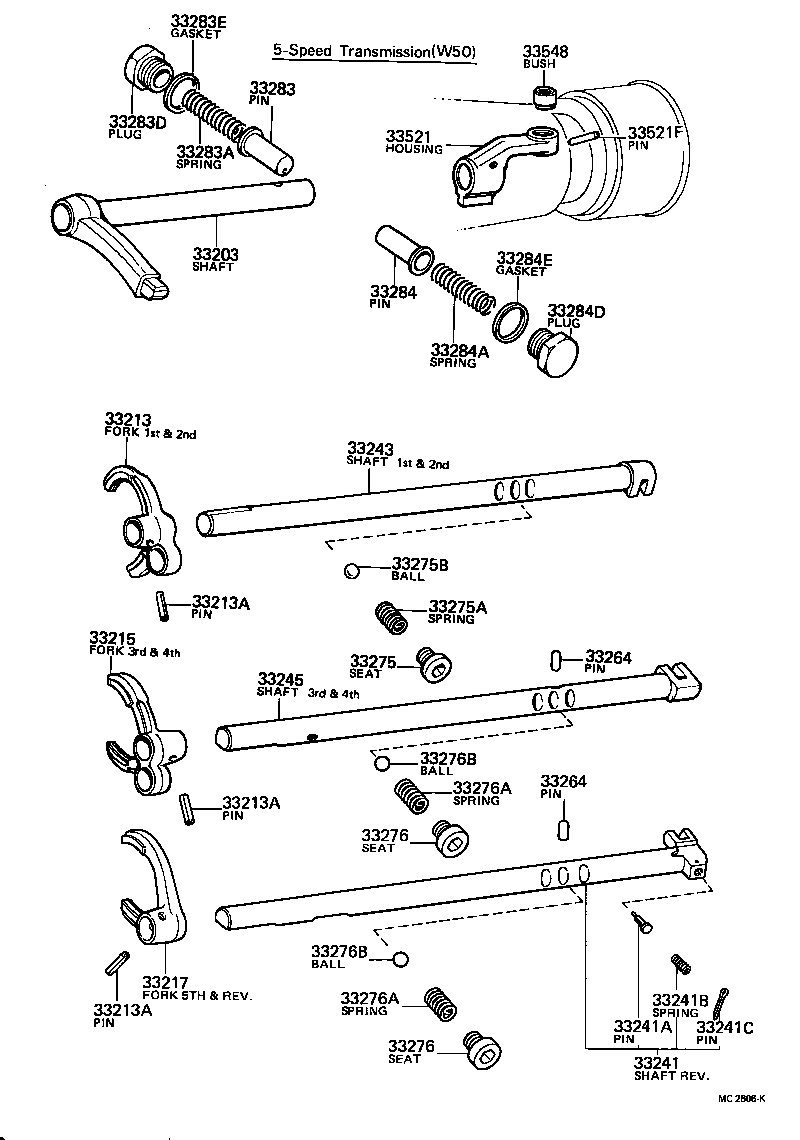

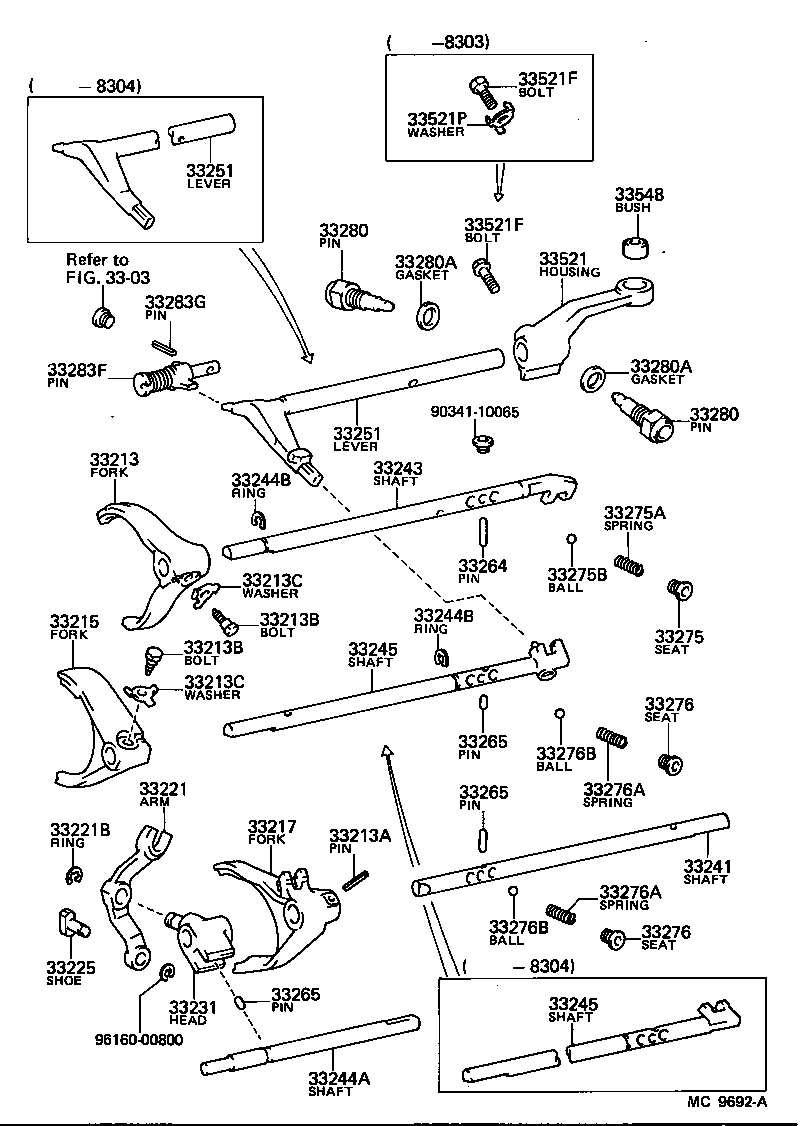

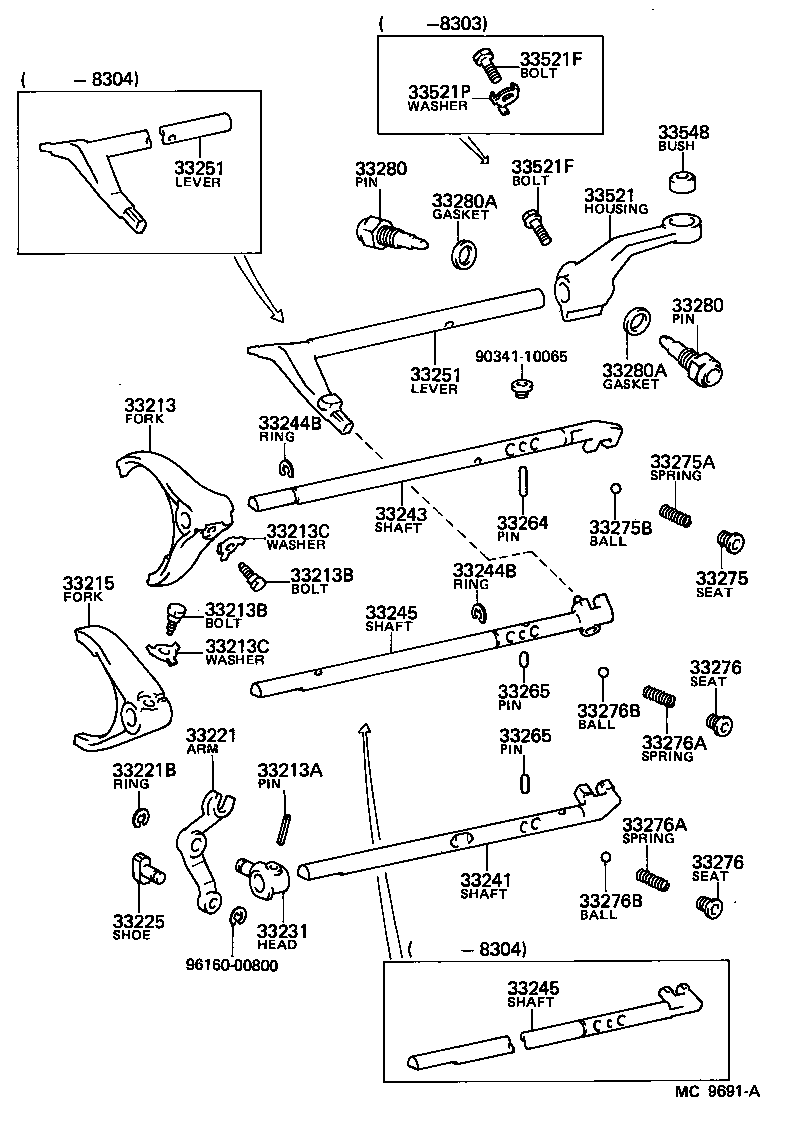

Gear Shift Fork & Lever Shaft (MTM)
71 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 33154 | Retainer, Oil Seal |
| 33154A | Seal, Type T Oil(FOR OIL SEAL RETAINER) |
| 33154B | Ring, O(FOR OIL SEAL RETAINER) |
| 33203 | Shaft Sub-assy, Shift Lever, NO.1 |
| 33203B | Seal, Oil(FOR SHIFT LEVER SHAFT) |
| 33203P | Boot, Dust(FOR SHIFT LEVER SHAFT) |
| 33203Q | Seal, Shift Lever Shaft Dust |
| 33205 | Shaft Sub-assy, Select Lever |
| 33205A | Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT) |
| 33205D | Washer(FOR OUTER LEVER OIL SETTING) |
| 33205G | Plug, Tight(FOR SELECT LEVER SHAFT) |
| 33213 | Fork, 1ST & 2ND Shift |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213C | Washer, Lock(FOR SHIFT FORK SET) |
| 33215 | Fork, 3RD & 4TH Shift |
| 33217 | Fork, 5TH & Reverse Shift |
| 33221 | Arm, Reverse Shift |
| 33221B | Ring, E(FOR REVERSE SHIFT ARM) |
| 33223 | Pivot, Shift Arm |
| 33225 | Shoe, Shift Arm |
| 33226 | Plunger, Reverse Shift Return |
| 33226A | Spring, Compression(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33226C | Ring, Shaft Snap(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33228 | Bracket, Reverse Shift Arm |
| 33228A | Pin, Reverse Shift Arm Bracket |
| 33231 | Head, Reverse Shift |
| 33241 | Shaft, Reverse Shift Fork |
| 33241A | Pin, Reverse Shaft Restrict |
| 33241B | Spring, Compression(FOR REVERSE SHAFT RESTRICT PIN) |
| 33241C | Pin, Cotter(FOR REVERSE SHAFT RESTRICT PIN) |
| 33243 | Shaft, 1ST & 2ND Shift Fork |
| 33244A | Shaft, 5TH Shift Fork |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33245 | Shaft, 3RD & 4TH Shift Fork |
| 33251 | Lever, Shift & Select |
| 33251F | Pin OR Bolt (FOR SHIFT & SELECT LEVER) |
| 33253 | Lever, Shift Outer, NO.1 |
| 33253A | Pin, Lever Lock (FOR SHIFT OUTER LEVER) |
| 33256 | Lever, Select Inner |
| 33256A | Bolt, Set (FOR SELECT INNER LEVER) |
| 33256B | Washer, Lock (FOR SELECT INNER LEVER) |
| 33257 | Lever, Select Outer |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33280 | Pin Assy, Reverse Restrict |
| 33280A | Gasket, Reverse Restrict Pin |
| 33282 | Pin, Lever Lock, NO.2 |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283A | Spring, Compression (FOR REVERSE RESTRICT PIN) |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283E | Gasket (FOR REVERSE RESTRICT PIN) |
| 33283F | Pin, Reverse Restrict |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33284 | Pin, Low Restrict |
| 33284A | Spring, Compression (FOR LOW RESTRICT PIN) |
| 33284D | Plug (FOR LOW RESTRICT PIN) |
| 33284E | Gasket (FOR LOW RESTRICT PIN) |
| 33294 | Bolt, Shaft Retaining |
| 33295 | Bolt, Shaft Retaining, NO.2 |
| 33521 | Housing, Shift Lever |
| 33521F | Pin OR Bolt (FOR SHIFT LEVER HOUSING) |
| 33521P | Washer, Lock (FOR SHIFT LEVER HOUSING) |
| 33532A | Plate, Dust Boot |
| 33548 | Bush, Shift Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
