Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

19 part groups · 4 illustrations

Illustrations

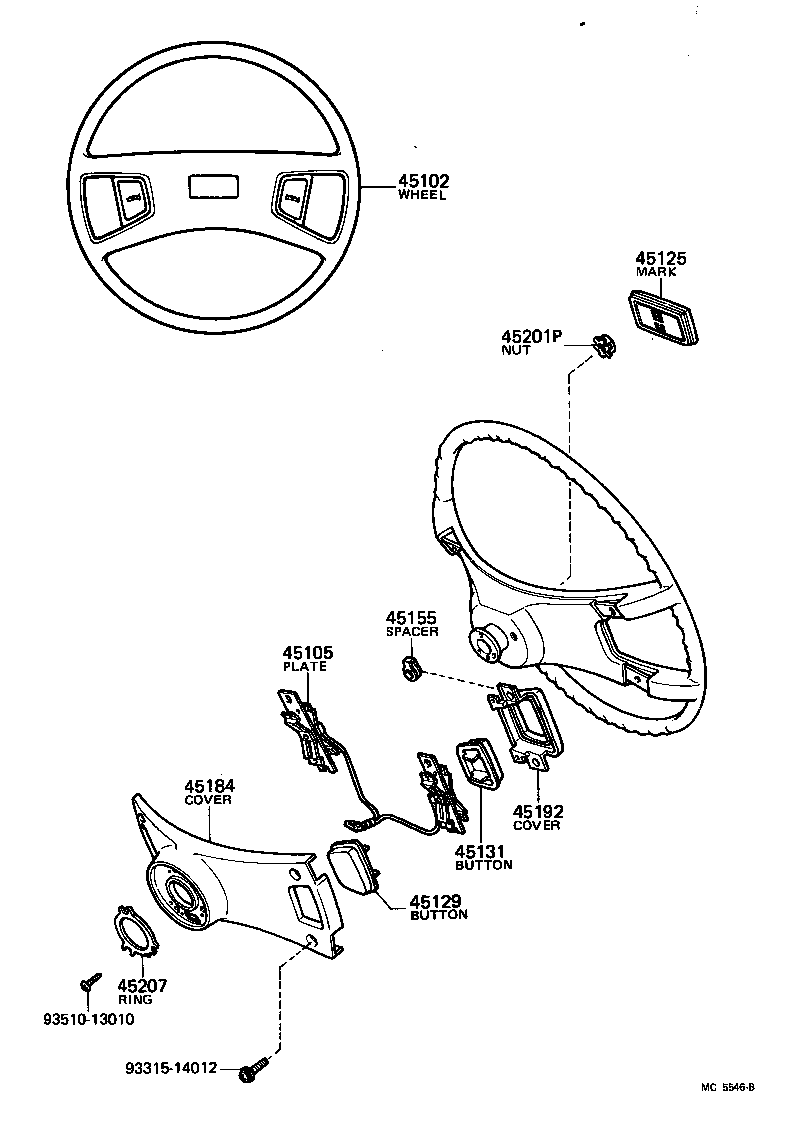

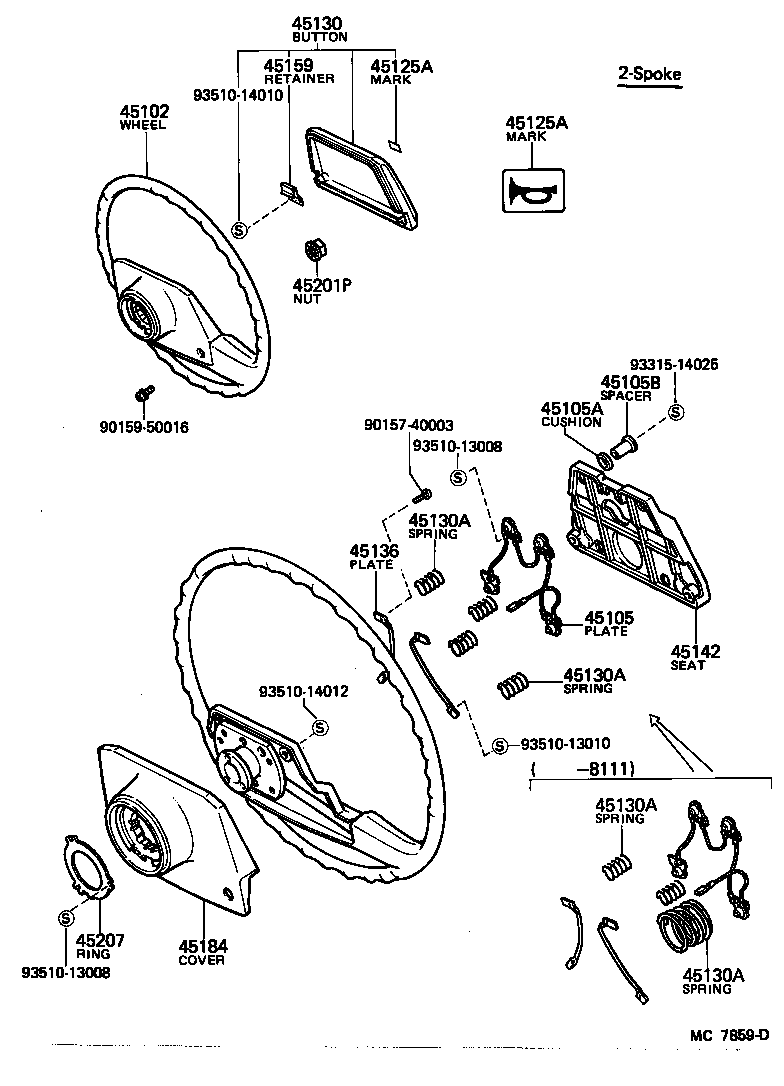

Figure MC6557B MC6557B 1979-09 → 1981-08 Figure MC6557B MC6557B 1981-08 → — Figure MC5546B MC5546B 1979-09 → 1981-08 Figure MC7859D MC7859D 1981-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45125A Mark, Horn
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45142 Seat, Horn Button Contact, NO.1
45155 Spacer, Horn Button Contact Plate
45159 Retainer, Steering Wheel Pad Set
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45192 Cover, Horn Button, Upper
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
