Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

15 part groups · 3 illustrations

Illustrations

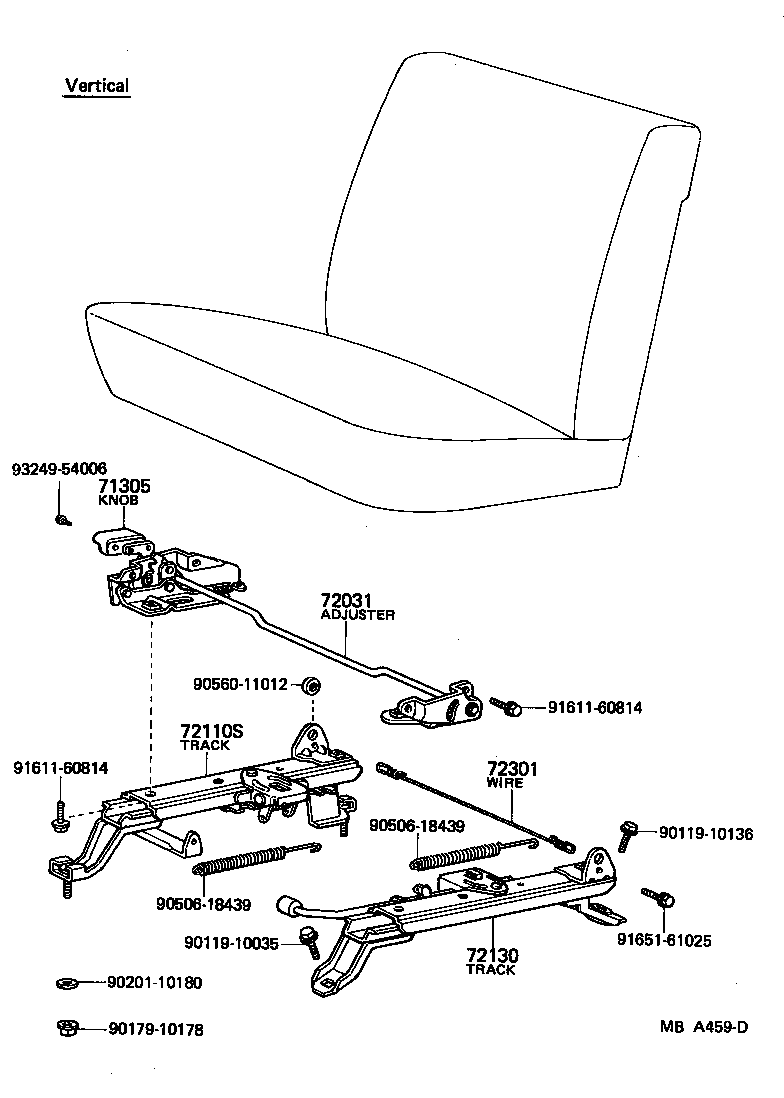

Figure MBA458C MBA458C 1979-09 → — Figure MBA459D MBA459D 1979-09 → — Figure MBA461B MBA461B 1979-09 → —

Part groups

PNCDescription
71305 Knob Sub-assy, Front Seat Adjusting
72031 Adjuster Assy, Front Seat Vertical
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72211 Handle, Seat Track Adjusting
72211A Knob, Seat Track Adjusting Handle
72301 Wire Sub-assy, Seat Track Equalizing
72430 Cable Assy, Seat Adjust Drive, NO.3
72440 Cable Assy, Seat Adjust Drive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
