Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

22 part groups · 2 illustrations

Illustrations

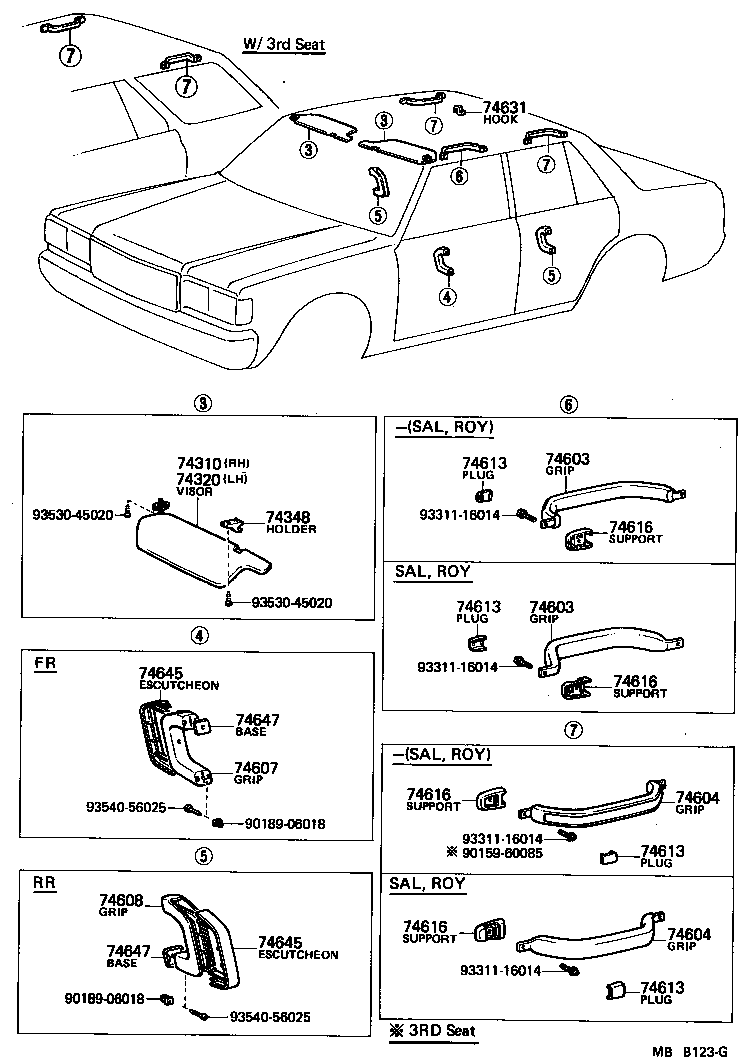

Figure MBA467B MBA467B 1979-09 → — Figure MBB123G MBB123G 1979-09 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74210B Bracket, Armrest Set
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74235 Panel, Rear Armrest Base, Upper
74236 Holder, Rear Ash Receptacle
74240 Armrest Assy, Rear, LH
74271 Retainer, Door Armrest
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74607 Grip Sub-assy, Front Door Assist
74608 Grip Sub-assy, Rear Door Assist
74613 Plug, Assist Grip
74616 Support, Assist Grip Plate
74631 Hook, Coat, A
74645 Escutcheon, Door Assist Grip
74647 Base, Door Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
