Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

12 part groups · 2 illustrations

Illustrations

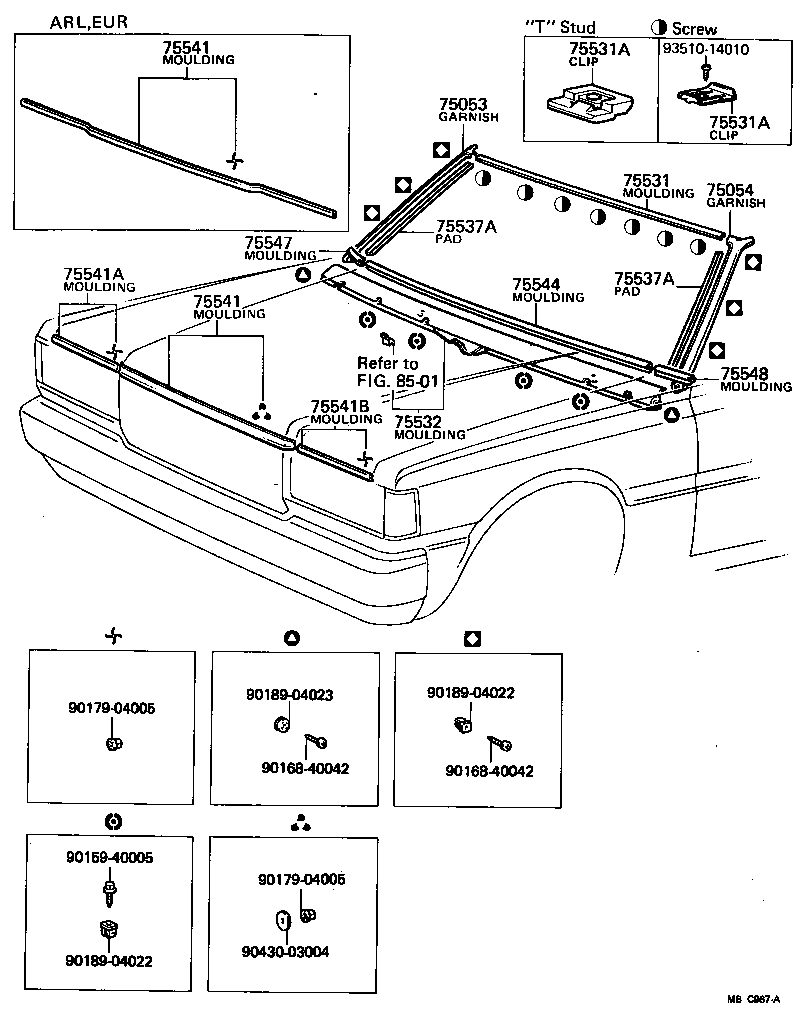

Figure MBA476G MBA476G 1979-09 → 1981-08 Figure MBC967A MBC967A 1981-08 → —

Part groups

PNCDescription
75053 Garnish Sub-assy, Front Pillar, Outer RH
75054 Garnish Sub-assy, Front Pillar, Outer LH
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75537A Pad, Windshield Moulding
75541 Moulding, Hood, Front
75541A Moulding, Hood, Front RH
75541B Moulding, Hood, Front LH
75544 Moulding, Hood, Rear
75547 Moulding, Front Fender, RH
75548 Moulding, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
