Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

20 part groups · 6 illustrations

Illustrations

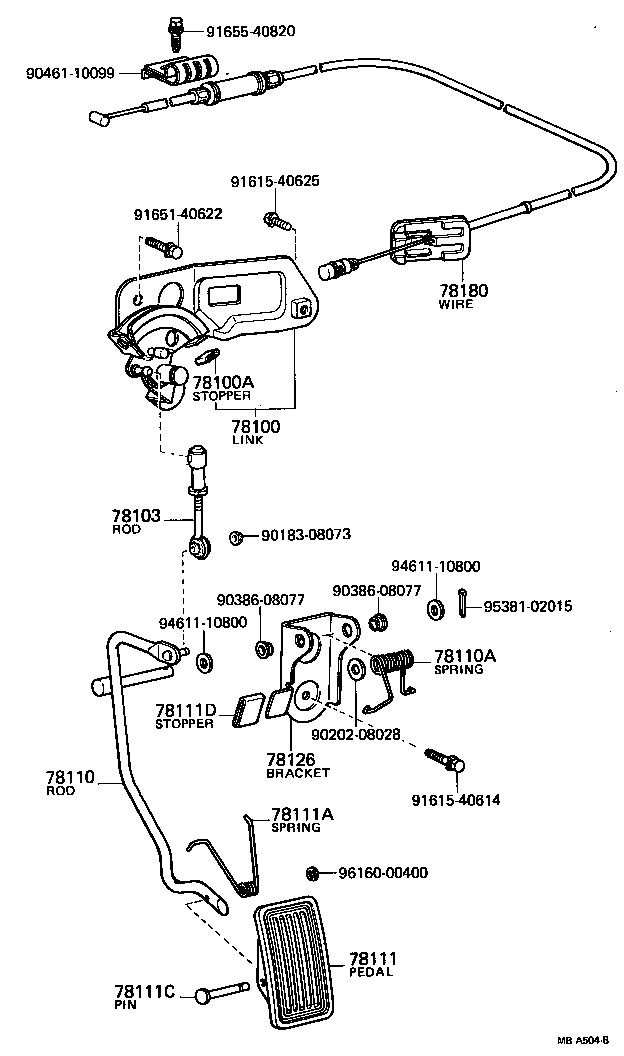

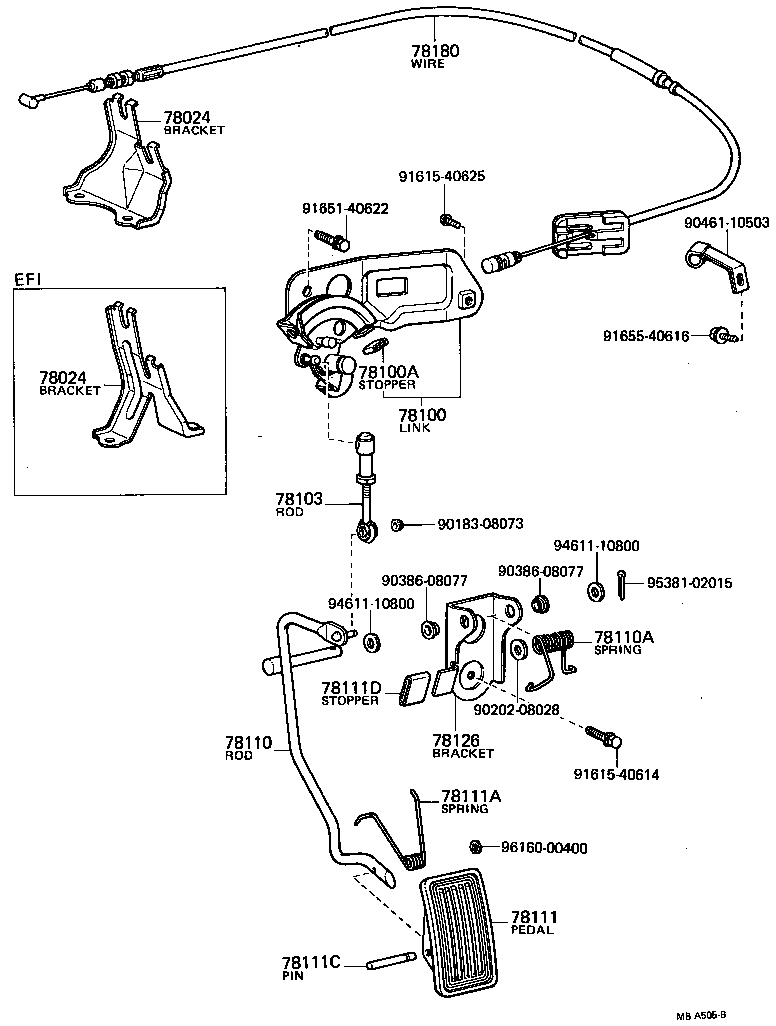

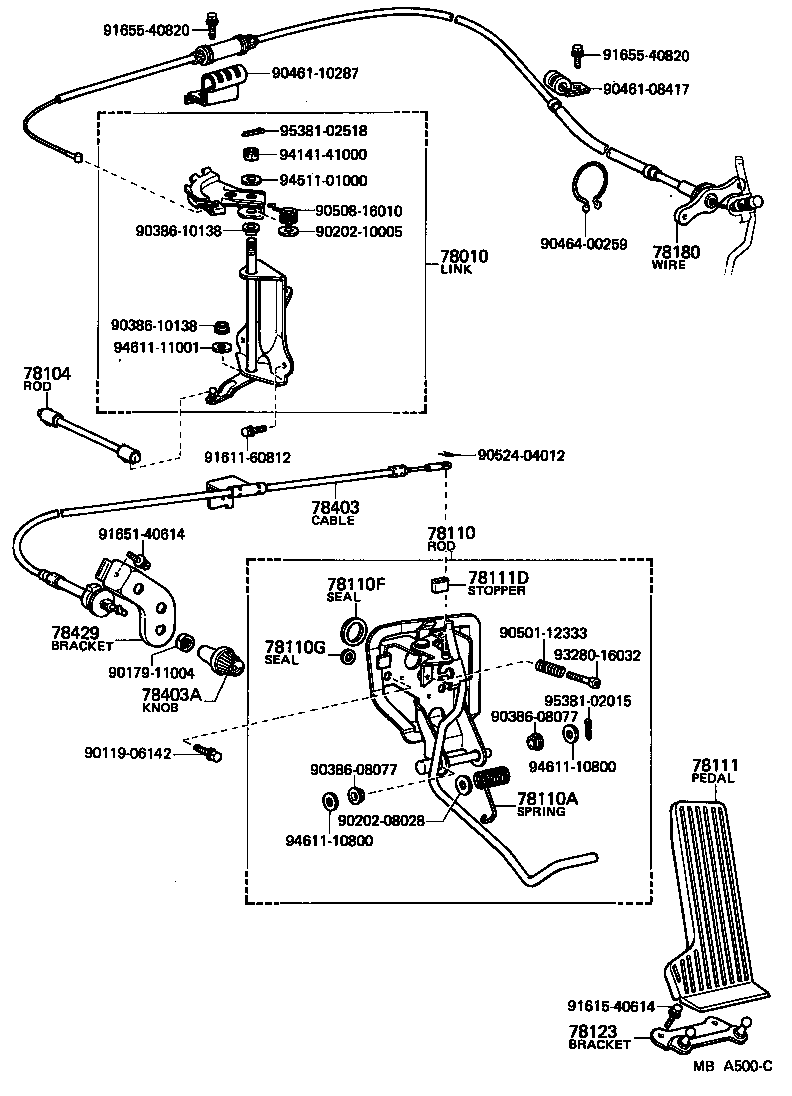

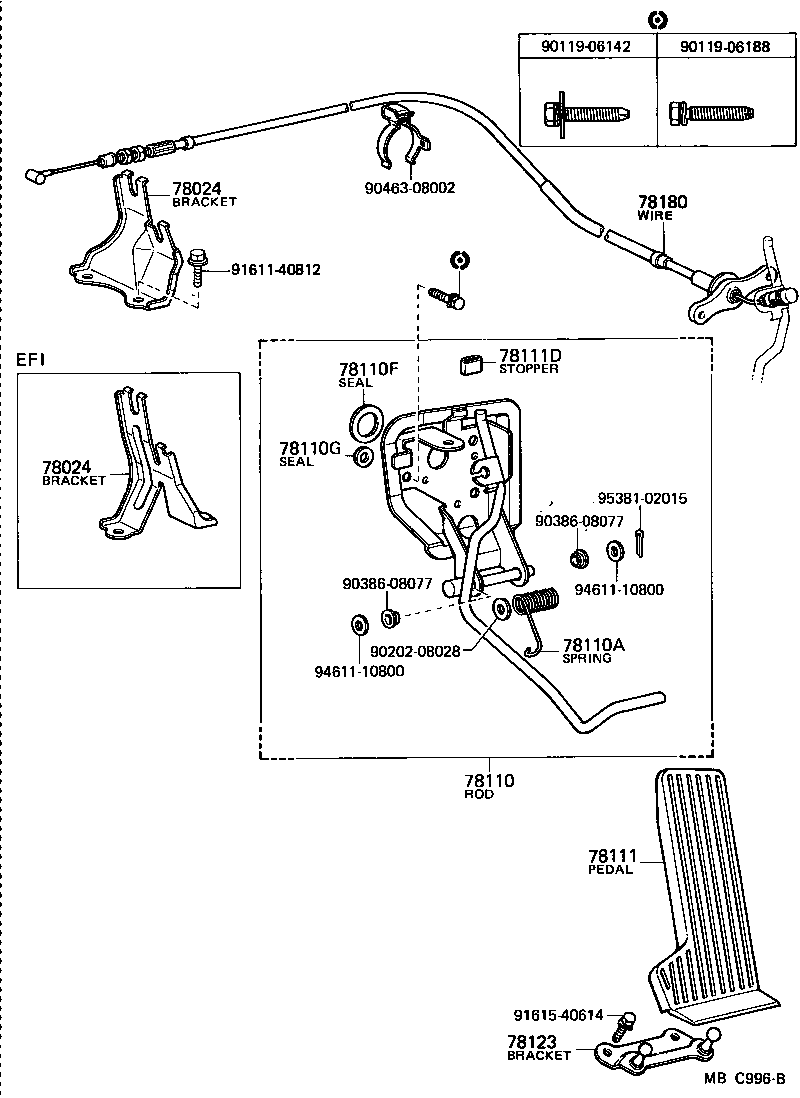

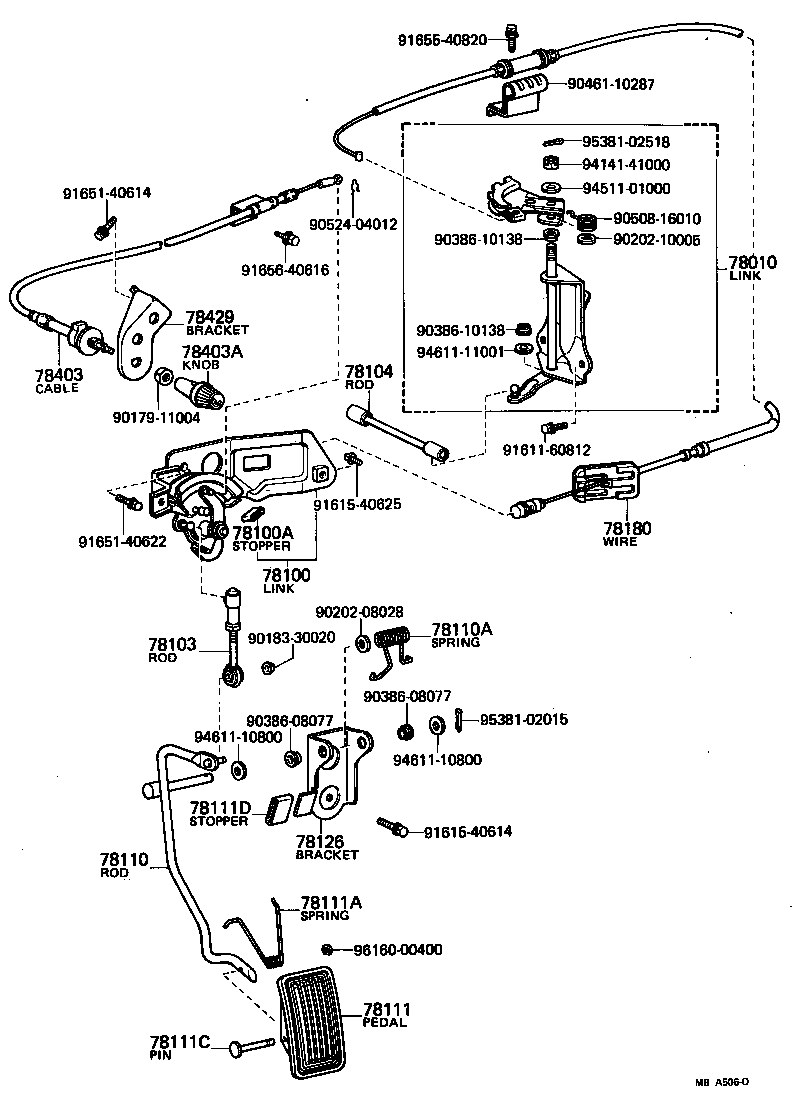

Figure MBA648C MBA648C 1979-09 → — Figure MBA504B MBA504B 1979-09 → — Figure MBC996B MBC996B 1979-09 → — Figure MBA505B MBA505B 1979-09 → — Figure MBA500C MBA500C 1979-09 → — Figure MBA506D MBA506D 1979-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78100A Stopper, Accelerator Link
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110F Seal, NO.1 (FOR ACCELERATOR PEDAL ROD)
78110G Seal, NO.2 (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78111D Stopper (FOR ACCELERATOR PEDAL)
78123 Bracket, Accelerator Pedal Support
78126 Bracket, Accelerator Pedal Rod
78180 Wire Assy, Accelerator
78403 Cable Sub-assy, Throttle Control
78403A Knob, Throttle Control
78429 Bracket, Throttle Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
