Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

20 part groups · 5 illustrations

Illustrations

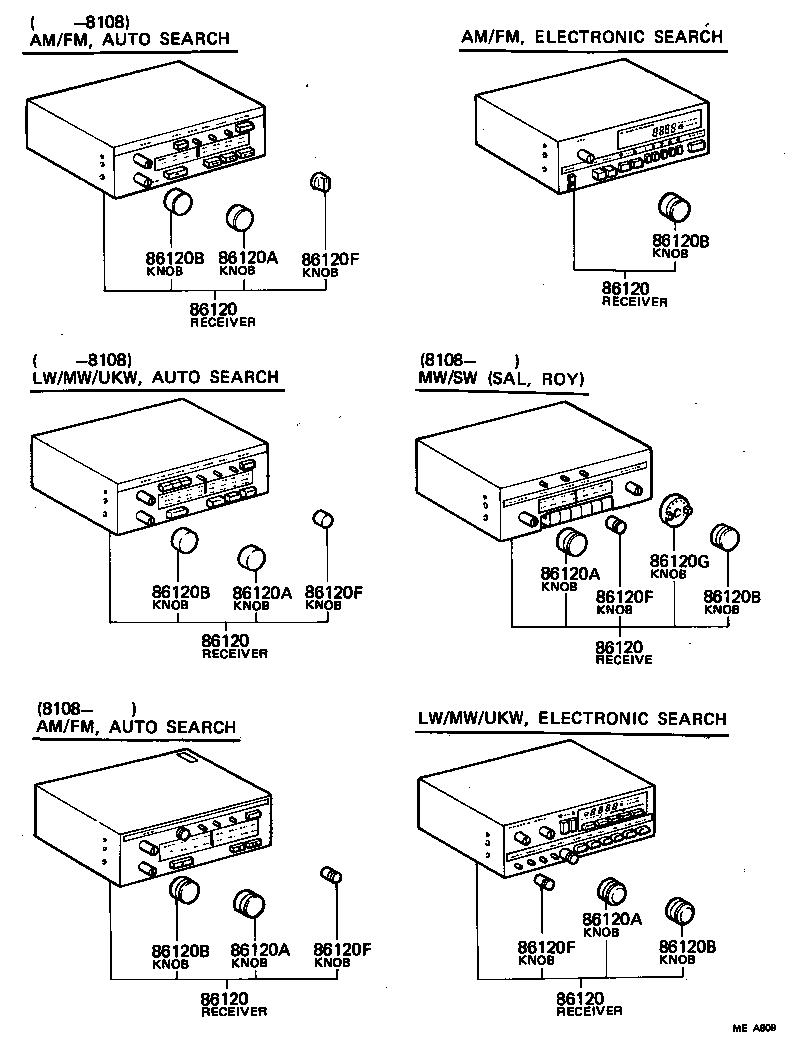

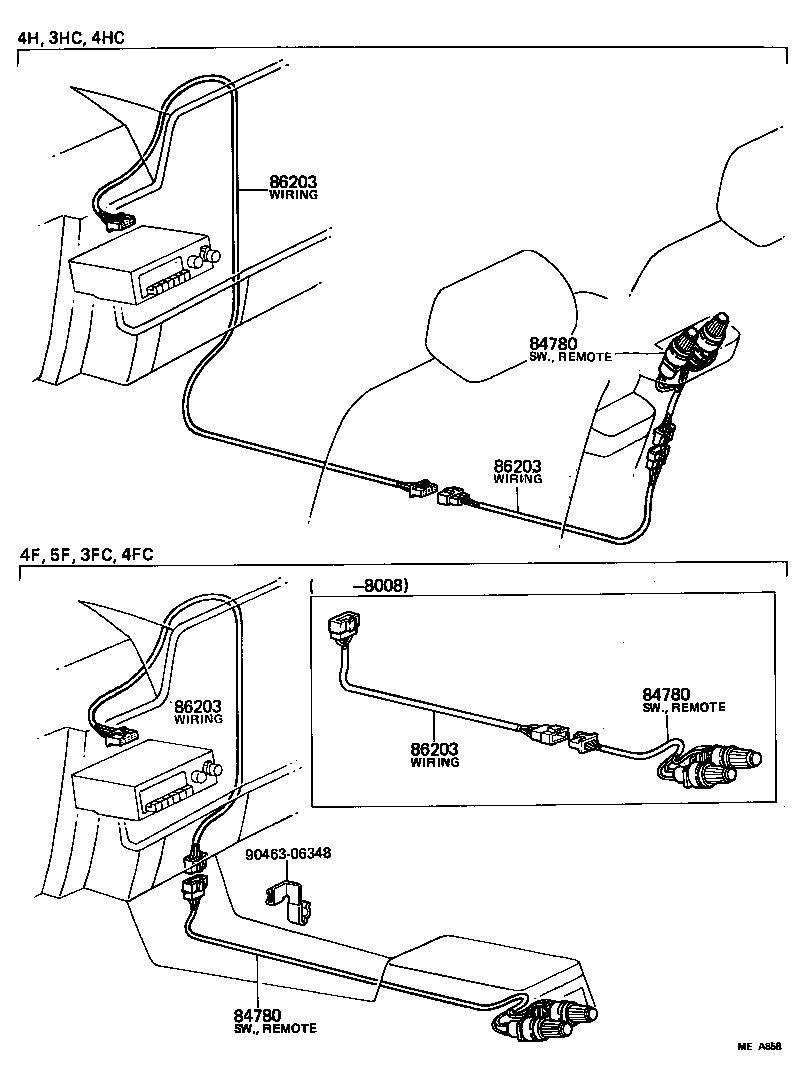

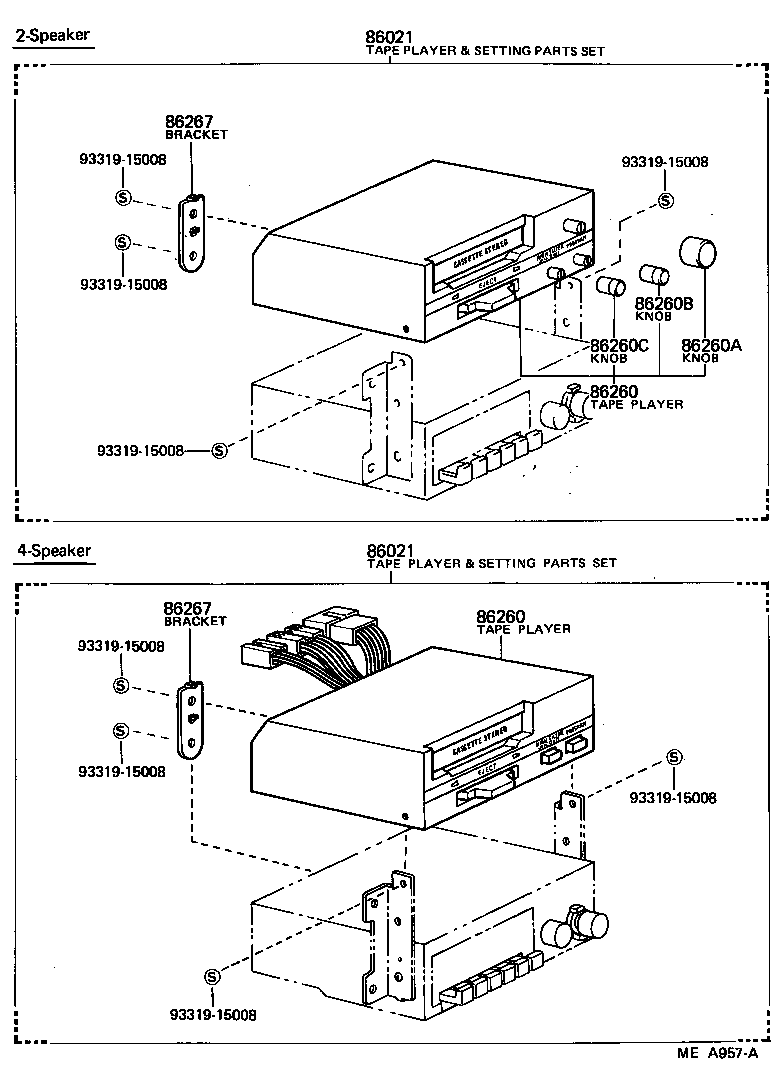

Figure ME8148G ME8148G 1979-09 → — Figure MEA809 MEA809 1979-09 → — Figure MEA957A MEA957A 1979-09 → — Figure MEA494A MEA494A 1979-09 → — Figure MEA858 MEA858 1979-09 → —

Part groups

PNCDescription
84780 Switch Assy, Radio Remote Tuning
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120F Knob, Radio Receiver Sub Volume
86120G Knob, Radio Receiver Band
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86215 Bracket, Radio, NO.5
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86260C Knob, Tape Player Balance
86260D Knob, Tape Player Fader
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
