Toyota Crown
1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · General
Discontinued model
Data version 1984-02

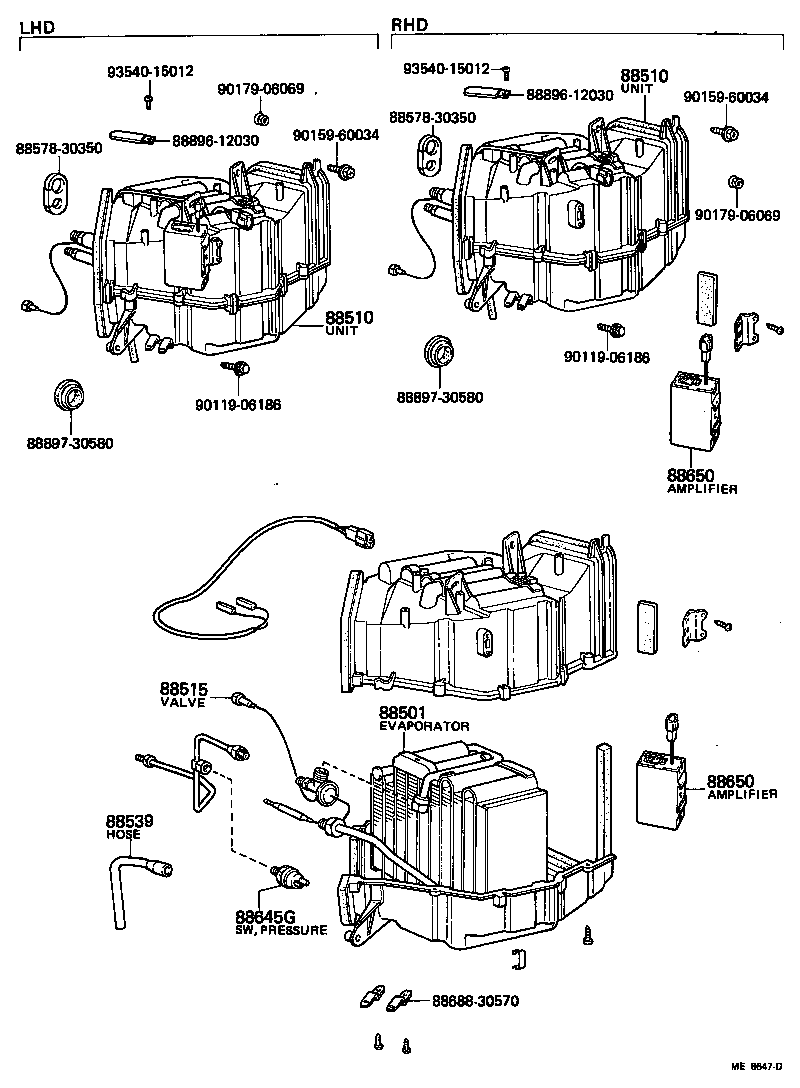

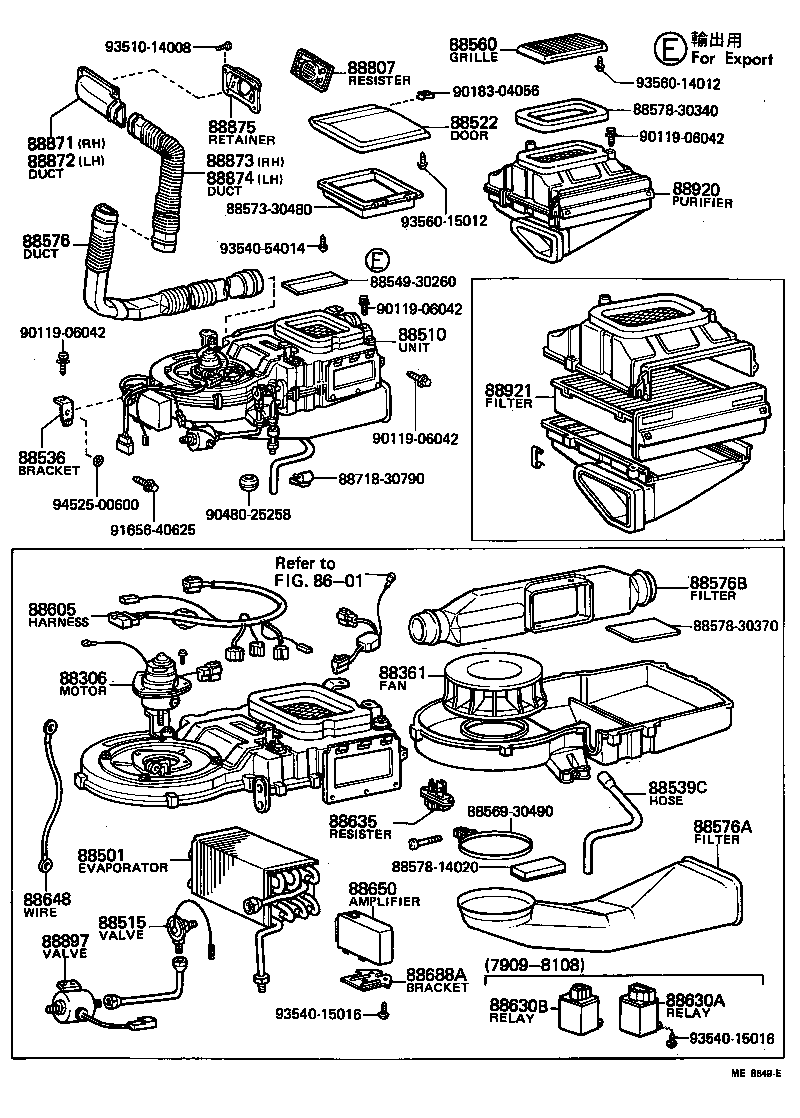

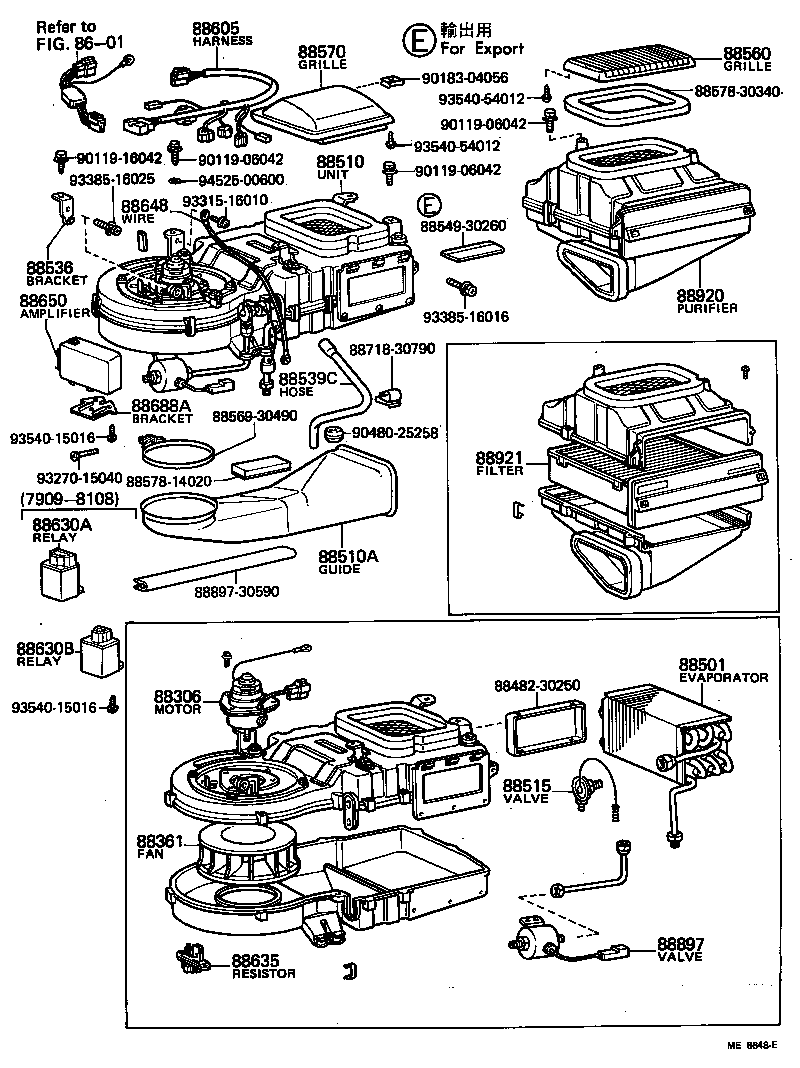

Heating & Air Conditioning - Cooler Unit
41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510A | Guide, Cooler Air |
| 88515 | Valve, Cooler Expansion |
| 88522 | Door, Cooling Unit |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88560 | Grille Assy, Cooler Air Inlet |
| 88570 | Grille Sub-assy, Cooler Air Outlet |
| 88576 | Duct, Cooler Rear Inlet Air |
| 88576A | Filter, Expansion, NO.1 |
| 88576B | Filter, Expansion, NO.2 |
| 88600C | Panel Assy, Control |
| 88600D | Bulb, Control Panel |
| 88604 | Panel Sub-assy, Cooler Control |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88610D | Bulb, Cooler Control Switch |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88649 | Wiring, Cooler, NO.2 |
| 88649A | Wiring, Cooler, NO.3 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88807 | Resister Assy, Roof Side Air Outlet |
| 88871 | Duct, Roof Side Air, NO.1 RH |
| 88872 | Duct, Roof Side Air, NO.1 LH |
| 88873 | Duct, Roof Side Air, NO.2 RH |
| 88874 | Duct, Roof Side Air, NO.2 LH |
| 88875 | Retainer, Roof Side Air Duct |
| 88897 | Valve, Cooler Magnet |
| 88920 | Purifier Assy, Air |
| 88921 | Filter, Air Purifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
