Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · General
Discontinued model
Data version 1988-01

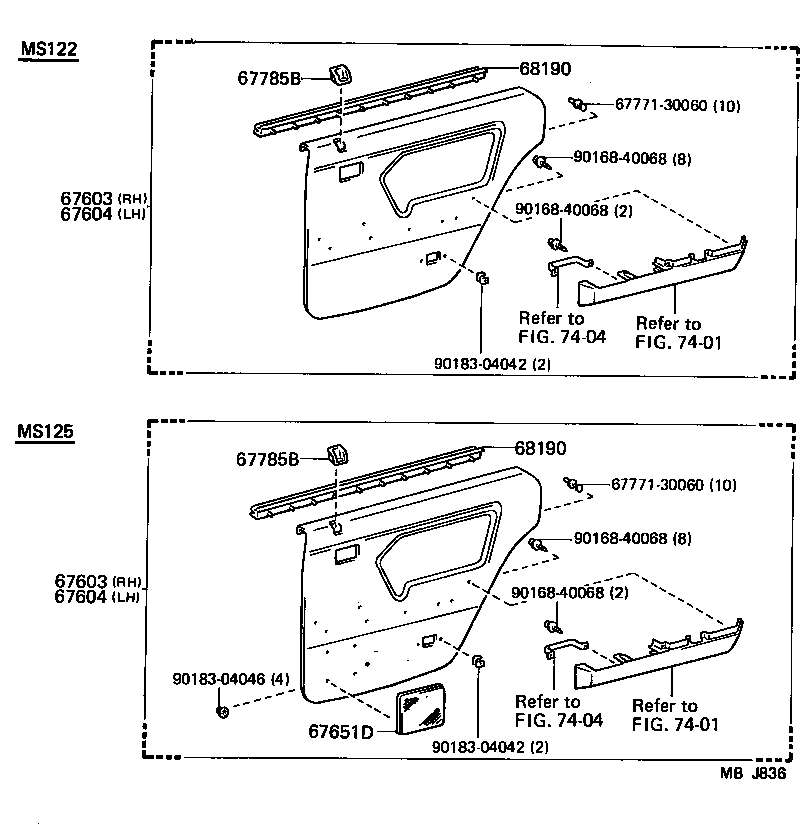

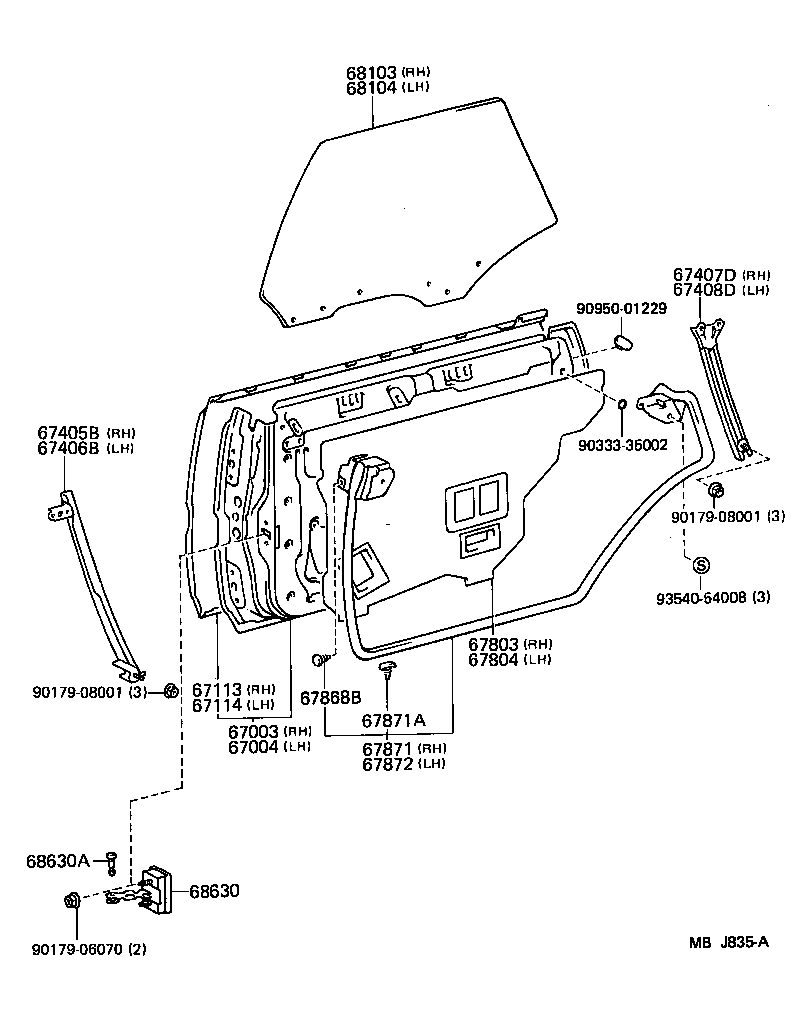

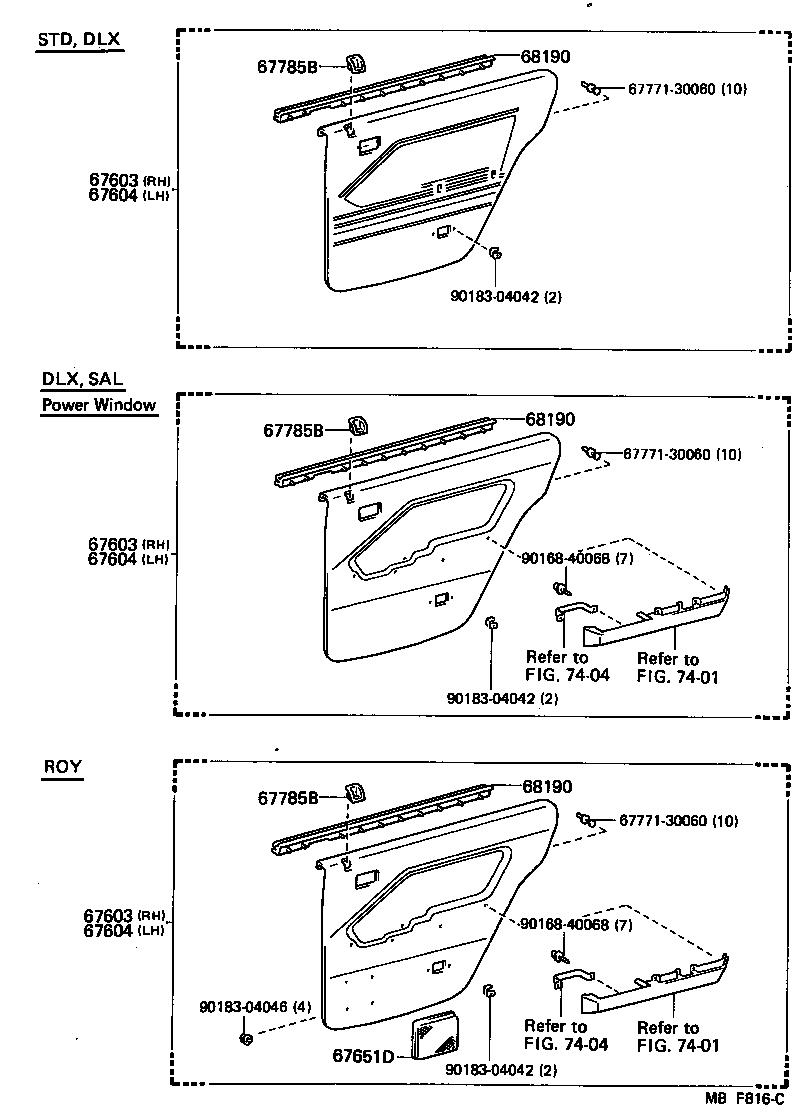

Rear Door Panel & Glass
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003A | Plug, Hole(FOR REAR DOOR PANEL) |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67651D | Grille, Speaker Door |
| 67785B | Holder, Door Locking Button Collar(FOR REAR DOOR) |
| 67803 | Cover Sub-assy, Rear Door Service Hole, RH |
| 67804 | Cover Sub-assy, Rear Door Service Hole, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142 | Run, Rear Door Glass |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68196 | Seal, Rear Door Belt, RH |
| 68196A | Clip(FOR REAR DOOR BELT SEAL) |
| 68197 | Seal, Rear Door Belt, LH |
| 68630 | Check Assy, Rear Door |
| 68630A | Pin(FOR REAR DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
