Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

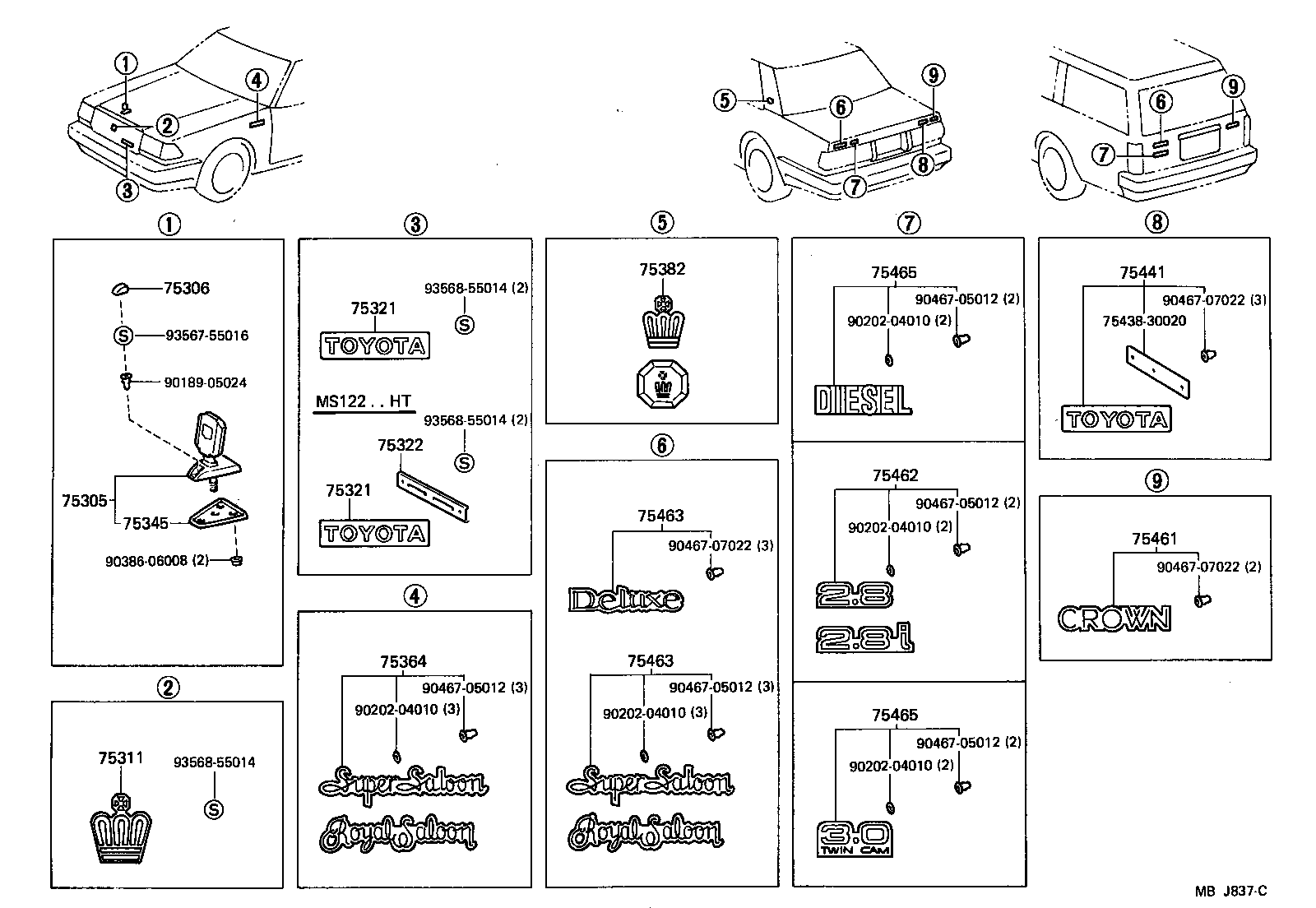

Figure MBF832B MBF832B 1983-08 → 1985-09 Figure MBJ837C MBJ837C 1985-09 → —

Part groups

PNCDescription
75305 Emblem, Hood
75306 Plate, Hood Name
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75345 Pad, Hood Ornament, NO.1
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75382 Emblem, Quarter Panel OR Side Panel
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
