Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 2 illustrations

Illustrations

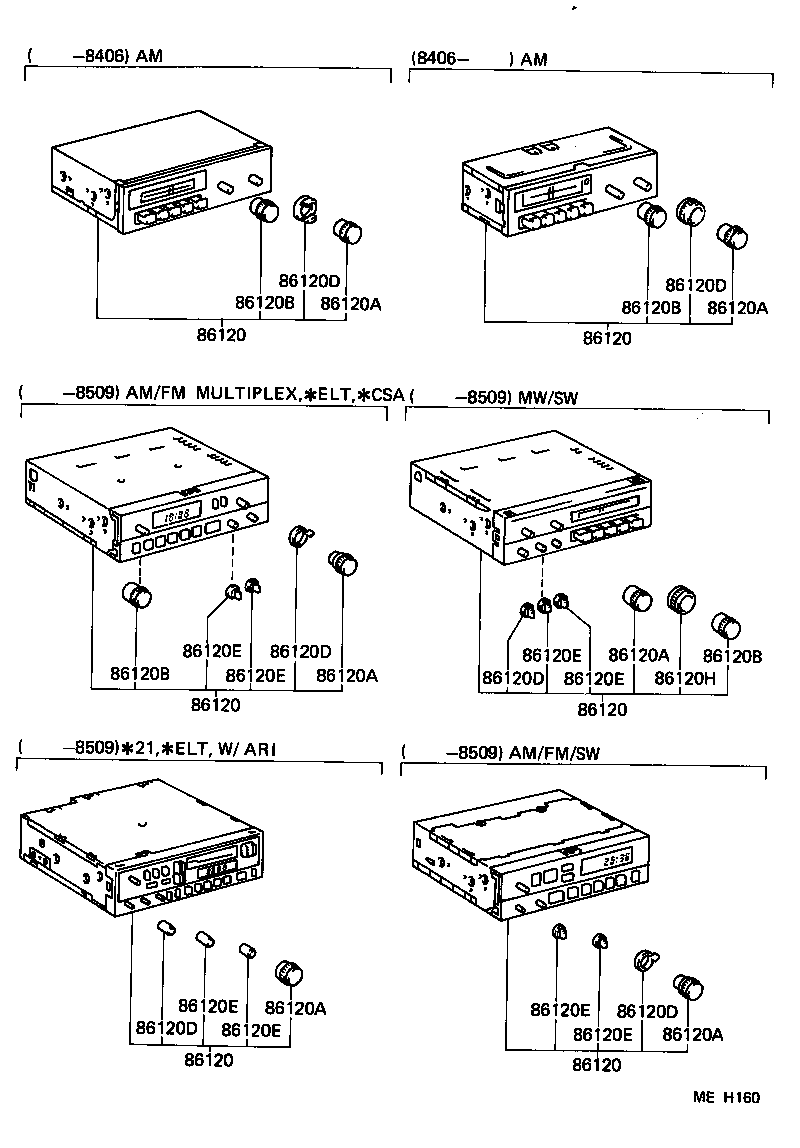

Figure MED717F MED717F 1983-08 → — Figure MEH160 MEH160 1983-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86120H Knob, Radio Receiver Select
86170R Switch & Volume Assy, RR
86203R Wire Sub-assy, RR
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86260 Tape Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
