Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

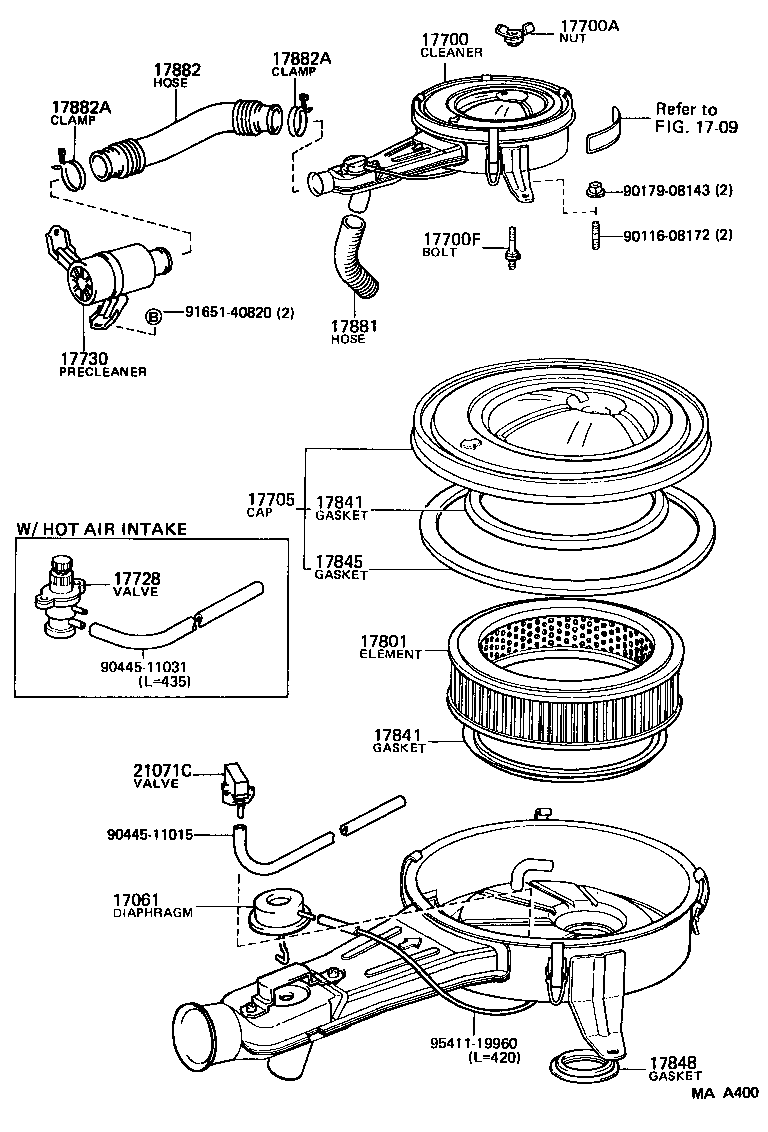

Exploded illustration MAA400 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 17700 — CLEANER ASSY, AIR (11 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (10 parts) 17882 — HOSE, AIR CLEANER, NO.2 (7 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (10 parts) 1709 — not listed in this catalogue 9017908143 — not listed in this catalogue 9011608172 — not listed in this catalogue 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 9165140820 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (9 parts) 17730 — PRECLEANER ASSY, AIR W/HOSE (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (10 parts) 17841 — GASKET, FILTER ELEMENT (1 parts) 17845 — GASKET, AIR CLEANER CAP (1 parts) 17728 — VALVE, THERMOSTATIC (2 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (5 parts) 9044511031 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (1 parts) 21071C — VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) (1 parts) 9044511015 — not listed in this catalogue 17061 — DIAPHRAGM SUB-ASSY (2 parts) 9541119960 — not listed in this catalogue 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)
MAA400 · 17 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-43010 Diaphragm Sub-assy
1987-09 → 1991-10 ended
5M MS132 GEN —
17061-72010 Diaphragm Sub-assy
1987-09 → 1991-10 ended
4Y YS132 —
17700 — Cleaner Assy, Air
17700-42240 Cleaner Assy, Air
1987-09 → 1991-10 ended
7MGE MS135 —
17700-43130 Cleaner Assy, Air
1987-09 → 1991-10 ended
5ME MS133 —
17700-43150 Cleaner Assy, Air
1987-09 → 1991-10 ended
5M MS132 —
17700-43160 note Cleaner Assy, Air
1987-09 → 1991-10 ended
5M MS132 GEN —
17700-43170 note Cleaner Assy, Air
1987-09 → 1991-10 ended
5M MS132 —
17700-43180 note Cleaner Assy, Air
1987-09 → 1991-10 ended
5M MS132 GEN —
17700-54420 Cleaner Assy, Air
1987-09 → 1989-08 ended
2L LS130 —
17700-54600 Cleaner Assy, Air
1989-08 → 1991-10 ended
2L LS130 —
17700-70080 Cleaner Assy, Air
1988-12 → 1991-10 ended
1GFE GS131 —
17700-73190 Cleaner Assy, Air
1987-09 → 1991-10 ended
4Y YS132 —
17700-73200 note Cleaner Assy, Air
1987-09 → 1991-10 ended
4Y YS132 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1987-09 → 1991-10 ended
4Y YS132 —
90175-06010 Nut, Wing(FOR AIR CLEANER)
1987-09 → 1991-10 ended
5M MS132 —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06024 Bolt, Stud(FOR AIR CLEANER SETTING)
1987-09 → 1991-10 ended
4Y YS132 —
90116-06222 Bolt, Stud(FOR AIR CLEANER SETTING)
1987-09 → 1991-10 ended
5M MS132 —
17705 — Cap Sub-assy, Air Cleaner
17705-42130 Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
7MGE MS135 —
17705-42130 Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
1GFE GS131 —
17705-43100 Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
5ME MS133 —
17705-43110 Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
5M MS132 —
17705-43120 note Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
5M MS132 GEN —
17705-43130 note Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
5M MS132 —
17705-43140 note Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
5M MS132 GEN —
17705-54200 Cap Sub-assy, Air Cleaner
1987-09 → 1989-08 ended
2L LS130 —
17705-73080 Cap Sub-assy, Air Cleaner
1987-09 → 1991-10 ended
4Y YS132 —
17705-73110 Cap Sub-assy, Air Cleaner
1989-08 → 1991-10 ended
2L LS130 —
17728 — Valve, Thermostatic
17728-34010 Valve, Thermostatic
1987-09 → 1991-10 ended
4Y YS132 —
17728-41030 Valve, Thermostatic
1987-09 → 1991-10 ended
5M MS132 GEN —
17730 — Precleaner Assy, Air W/Hose
17730-43010 Precleaner Assy, Air W/Hose
1987-09 → 1991-10 ended
4Y YS132 —
17730-43010 Precleaner Assy, Air W/Hose
1987-09 → 1991-10 ended
5M MS132 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-43010 Element Sub-assy, Air Cleaner Filter
1987-09 → 1991-10 ended
5M MS132 —
17801-54090 Element Sub-assy, Air Cleaner Filter
1987-09 → 1991-10 ended
2L LS130 —
17801-70020 Element Sub-assy, Air Cleaner Filter
1987-09 → 1991-10 ended
1GFE GS131 —
17801-70020 Element Sub-assy, Air Cleaner Filter
1987-09 → 1991-10 ended
5ME,7MGE MS133,135 —
17801-73010 Element Sub-assy, Air Cleaner Filter
1987-09 → 1991-10 ended
4Y YS132 —
17841 — Gasket, Filter Element
17841-41050 Gasket, Filter Element
1987-09 → 1991-10 ended
5M MS132 —
17845 — Gasket, Air Cleaner Cap
17845-61011 Gasket, Air Cleaner Cap
1987-09 → 1991-10 ended
5M MS132 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-35010 Gasket, Air Cleaner TO Carburetor
1987-09 → 1991-10 ended
4Y YS132 —
90430-72003 Gasket, Air Cleaner TO Carburetor
1987-09 → 1991-10 ended
5M MS132 —
17881 — Hose, Air Cleaner, NO.1
17349-54020 note Hose, Air Cleaner, NO.1
1987-09 → 1989-08 ended
2L LS130 —
17881-16210 Hose, Air Cleaner, NO.1
1990-07 → 1991-10 ended
4Y YS132 —
17881-34040 Hose, Air Cleaner, NO.1
1987-09 → 1991-10 ended
5M MS132 GEN —
17881-41060 Hose, Air Cleaner, NO.1
1987-09 → 1991-10 ended
5ME MS133 —
17881-42020 Hose, Air Cleaner, NO.1
1987-09 → 1991-10 ended
7MGE MS135 —
17881-54330 note Hose, Air Cleaner, NO.1
1987-09 → 1989-08 ended
2L LS130 —
17881-54440 Hose, Air Cleaner, NO.1
1989-08 → 1991-10 ended
2L LS130 —
17881-70240 Hose, Air Cleaner, NO.1
1988-12 → 1991-10 ended
1GFE GS131 —
17881-74040 Hose, Air Cleaner, NO.1
1987-09 → 1990-07 ended
4Y YS132 —
17882 — Hose, Air Cleaner, NO.2
17880-73020 Hose, Air Cleaner, NO.2
1987-09 → 1991-10 ended
4Y YS132 —
17882-42030 Hose, Air Cleaner, NO.2
1987-09 → 1991-10 ended
7MGE MS135 —
17882-43090 Hose, Air Cleaner, NO.2
1987-09 → 1991-10 ended
5ME MS133 —
17882-43140 Hose, Air Cleaner, NO.2
1987-09 → 1991-10 ended
5M MS132 —
17882-54200 note Hose, Air Cleaner, NO.2
1987-09 → 1989-08 ended
2L LS130 —
17882-54240 note Hose, Air Cleaner, NO.2
1987-09 → 1989-08 ended
2L LS130 —
17882-70060 Hose, Air Cleaner, NO.2
1988-12 → 1991-10 ended
1GFE GS131 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-75001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1991-10 ended
4Y YS132 —
90464-00476 Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1991-10 ended
5M MS132 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1989-08 ended
4Y YS132 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1989-08 ended
5ME MS133 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1989-08 → 1991-10 ended
4Y YS132 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1989-08 → 1991-10 ended
5ME MS133 —
96111-10730 Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1989-08 ended
2L LS130 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1991-10 ended
5ME MS133 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1991-10 ended
7MGE MS135 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-09 → 1991-10 ended
7MGE MS135 —
21071C — Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
21071-45021 Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1987-09 → 1991-10 ended
5M MS132 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
