Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

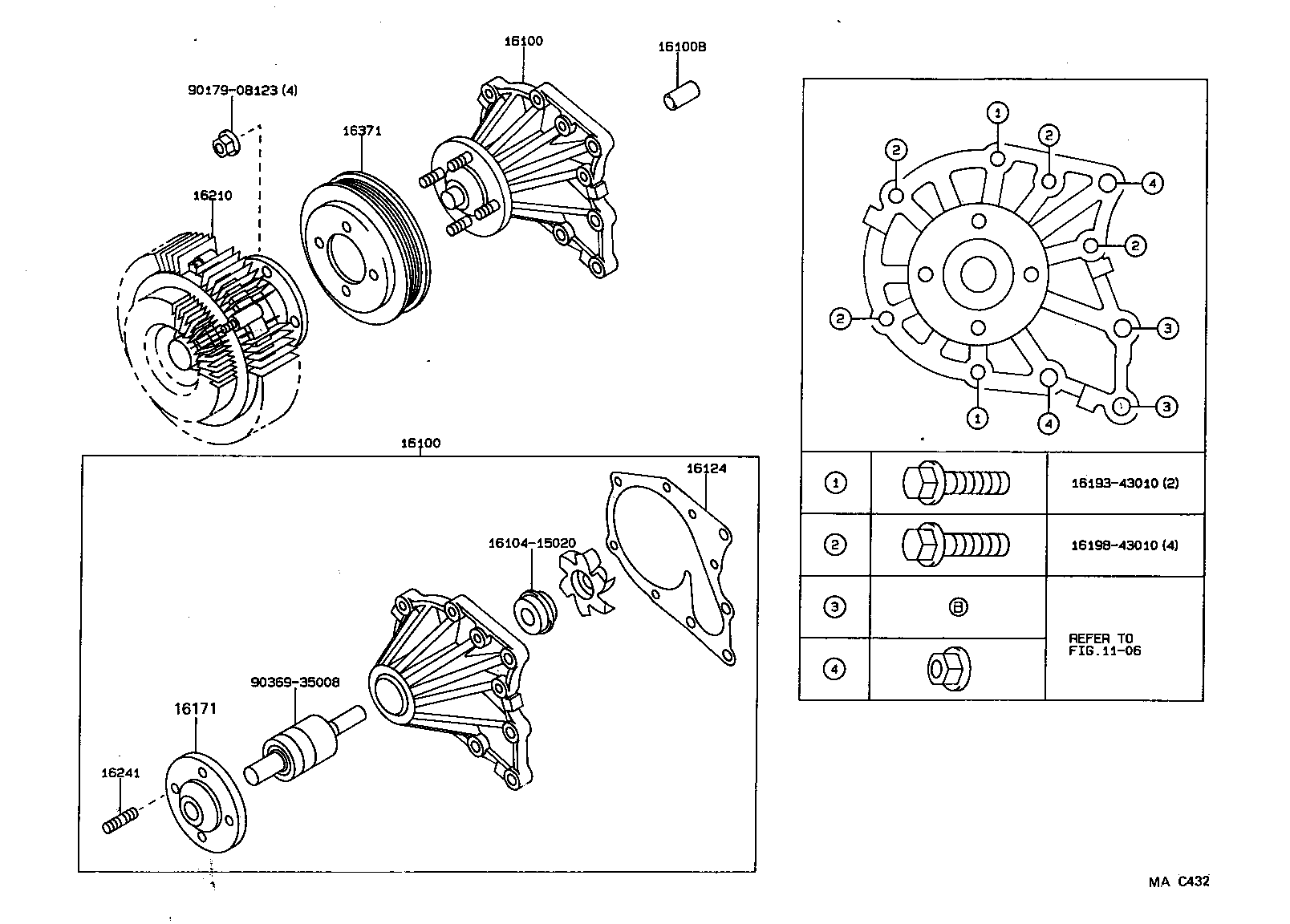

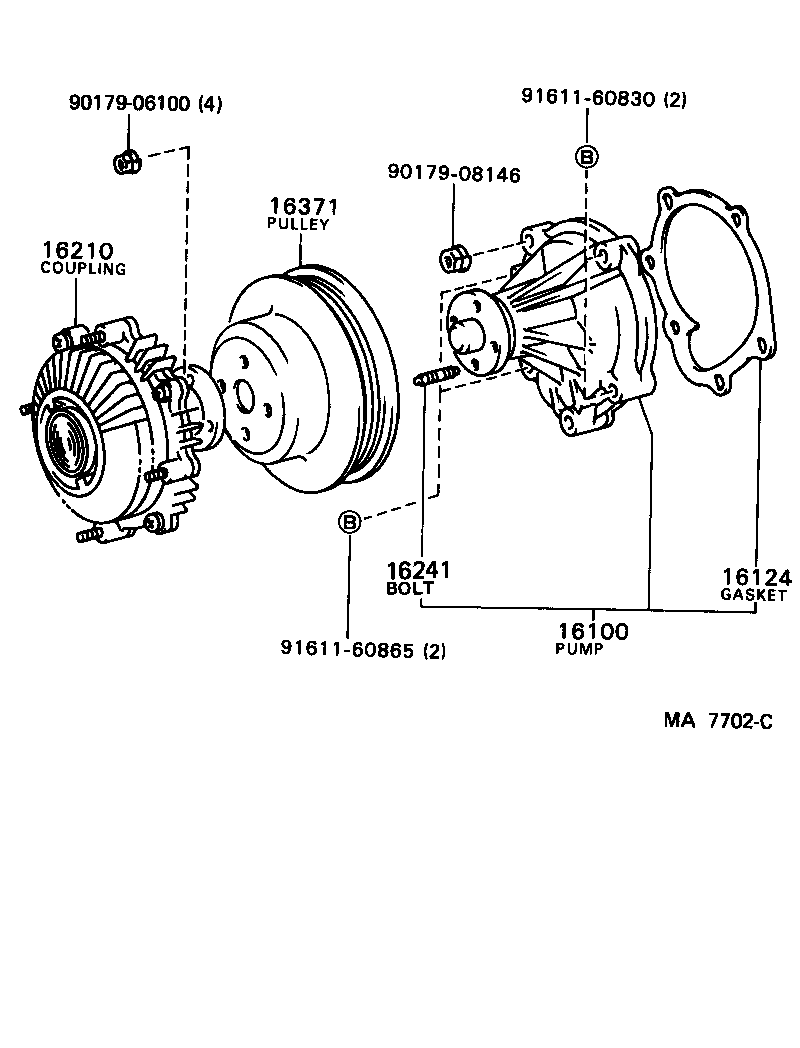

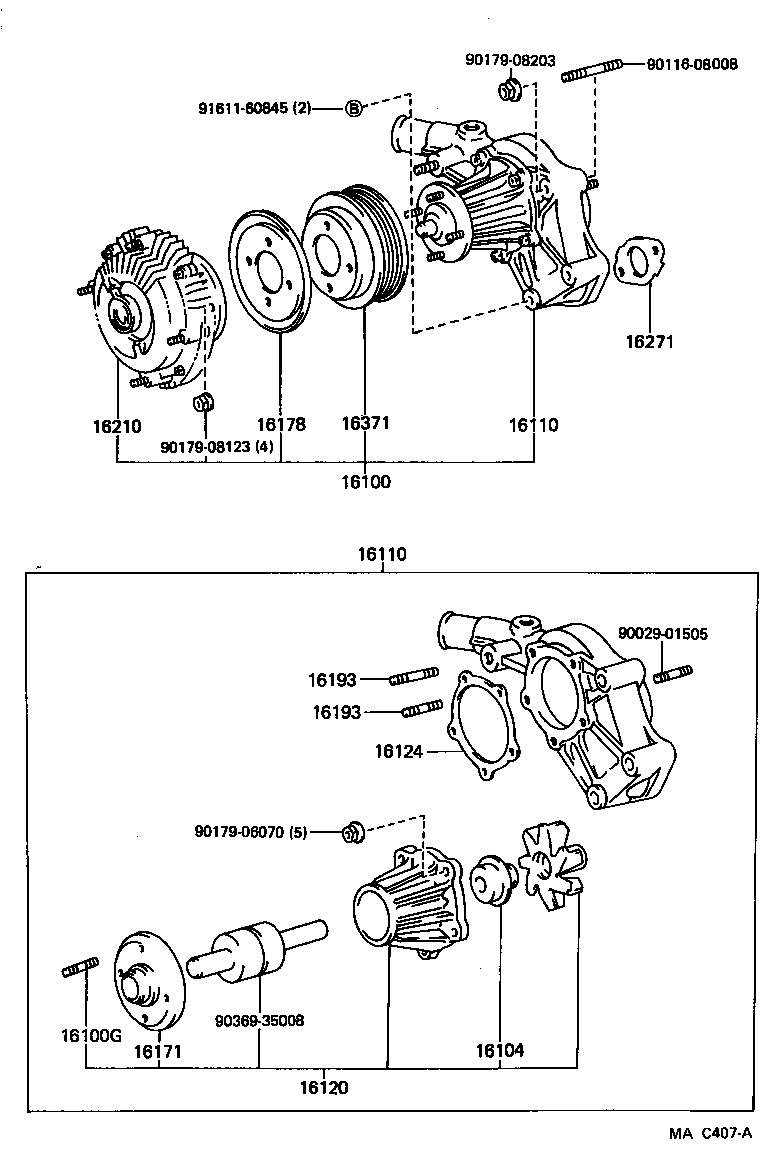

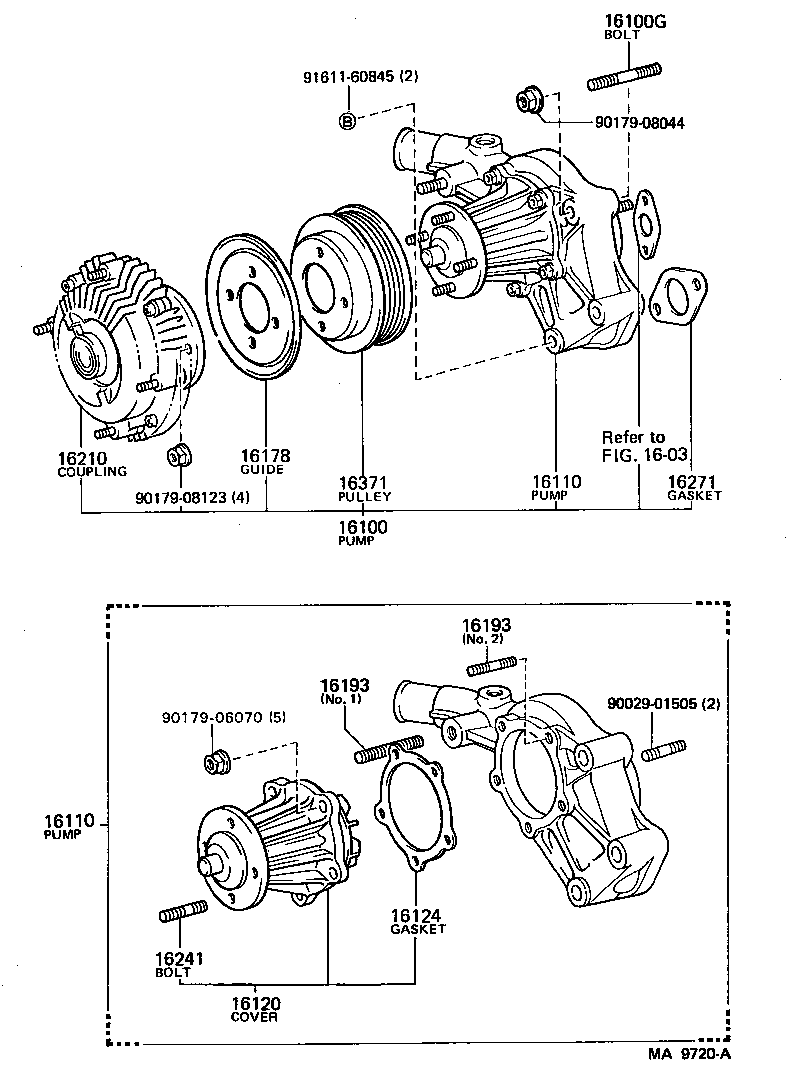

Water Pump
15 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16120 | Cover Assy, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16171 | Seat, Water Pump Pulley |
| 16178 | Guide, Water Pump V Belt |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16258 | Gasket(FOR HEATER RETURN) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
