Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 5 illustrations

Illustrations

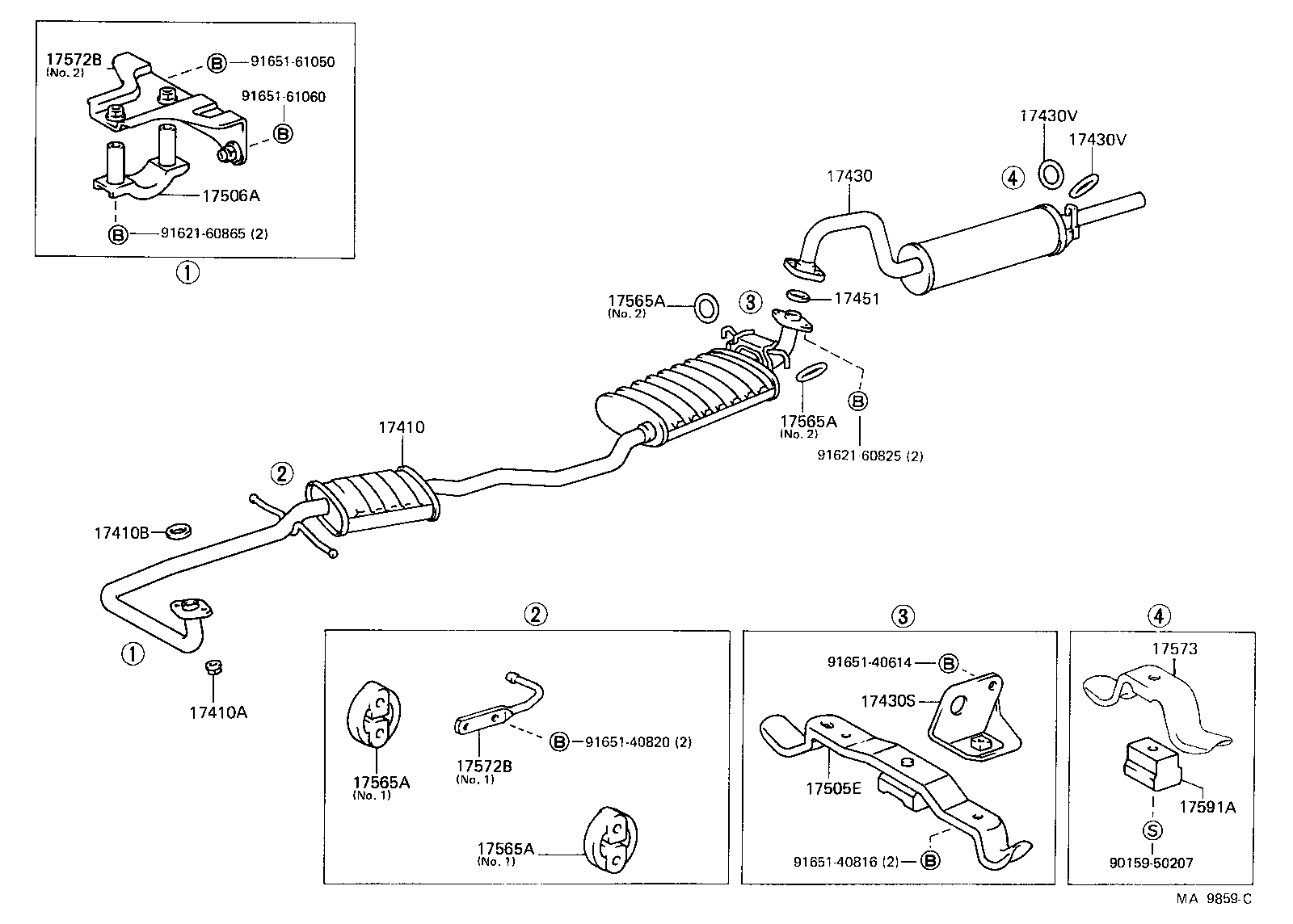

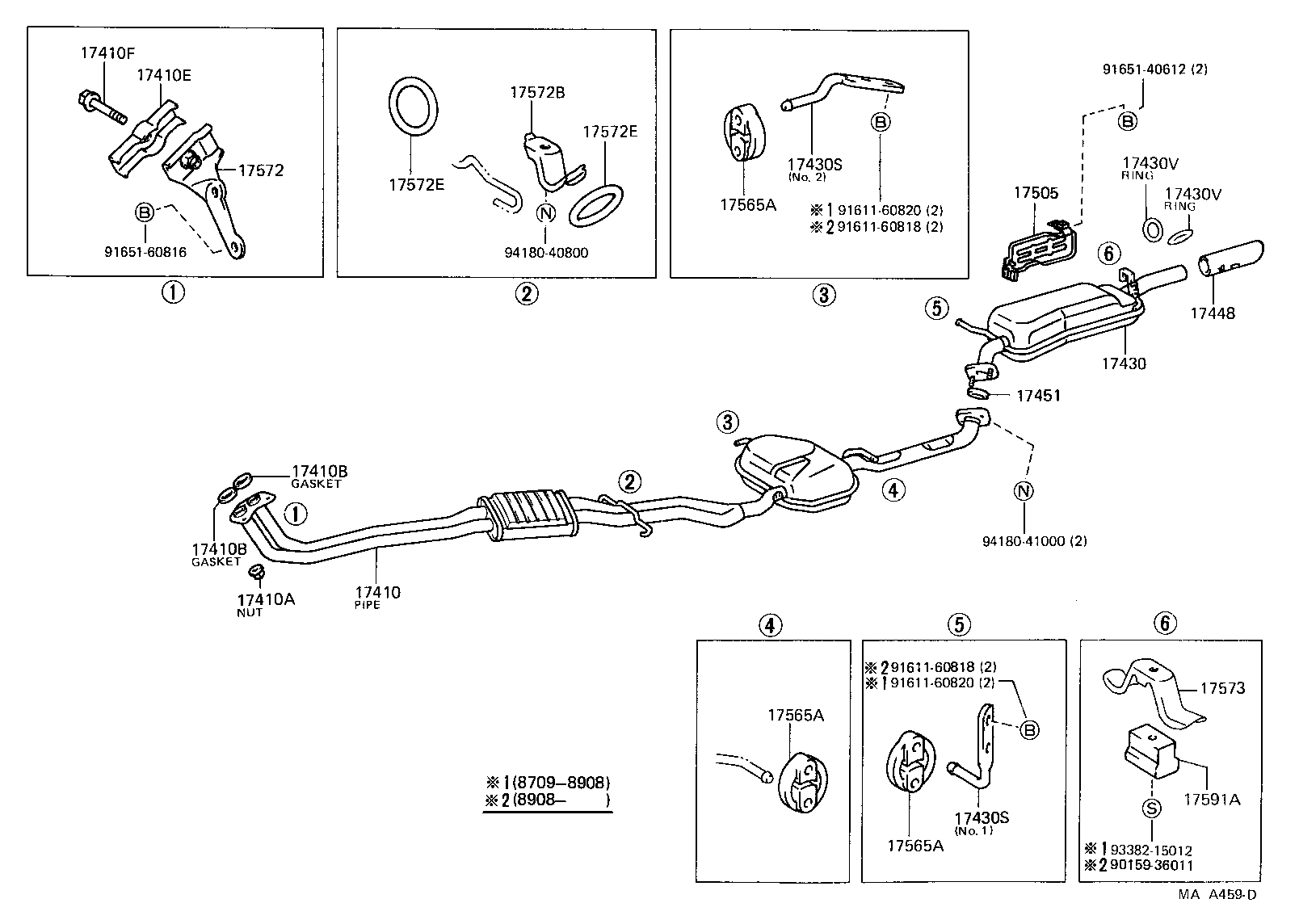

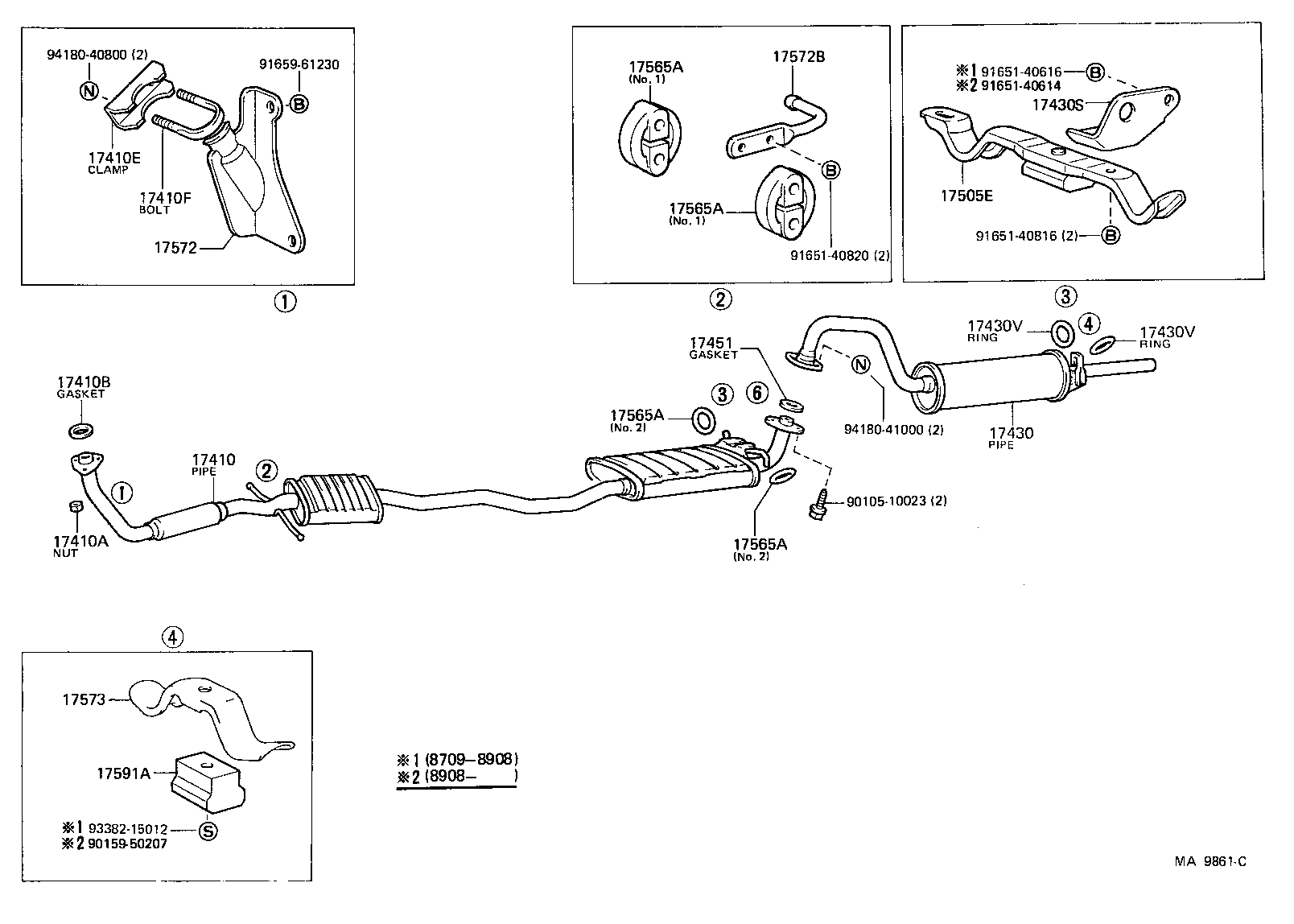

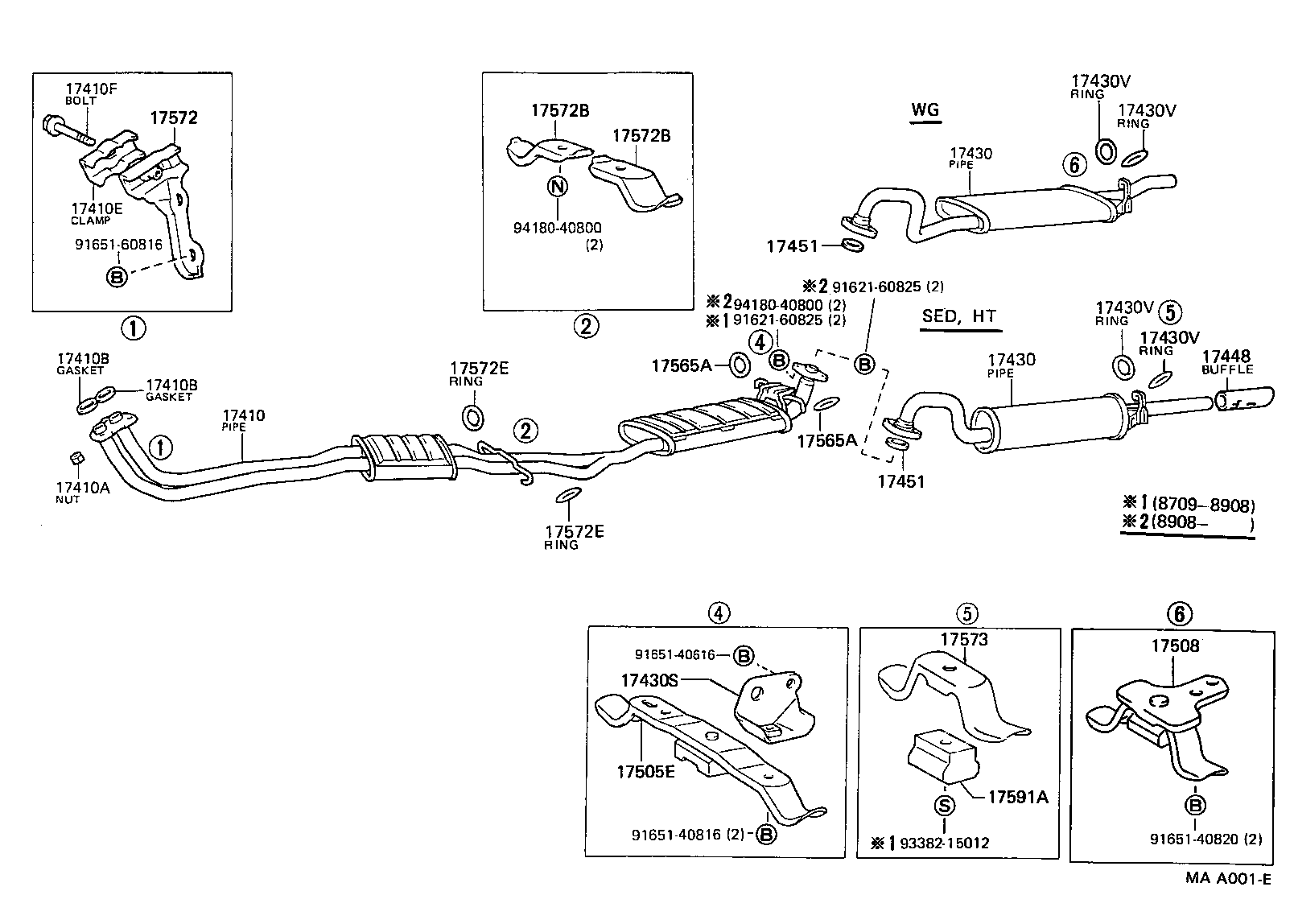

Figure MAC001C MAC001C 1988-12 → — Figure MA9859C MA9859C 1987-09 → — Figure MAA001E MAA001E 1987-09 → — Figure MAA459D MAA459D 1987-09 → — Figure MA9861C MA9861C 1987-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505E Support Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572E Ring,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17581A Damper, Exhaust Pipe
17591A Stopper, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
