Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

45 part groups · 7 illustrations

Illustrations

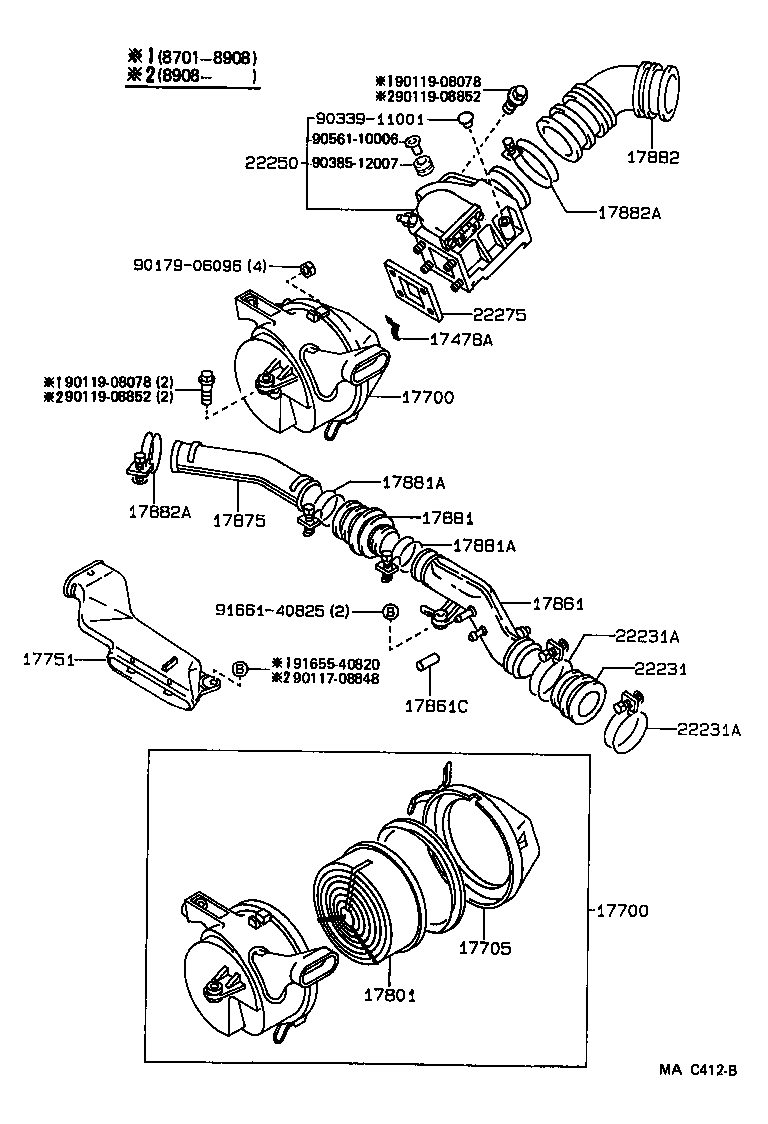

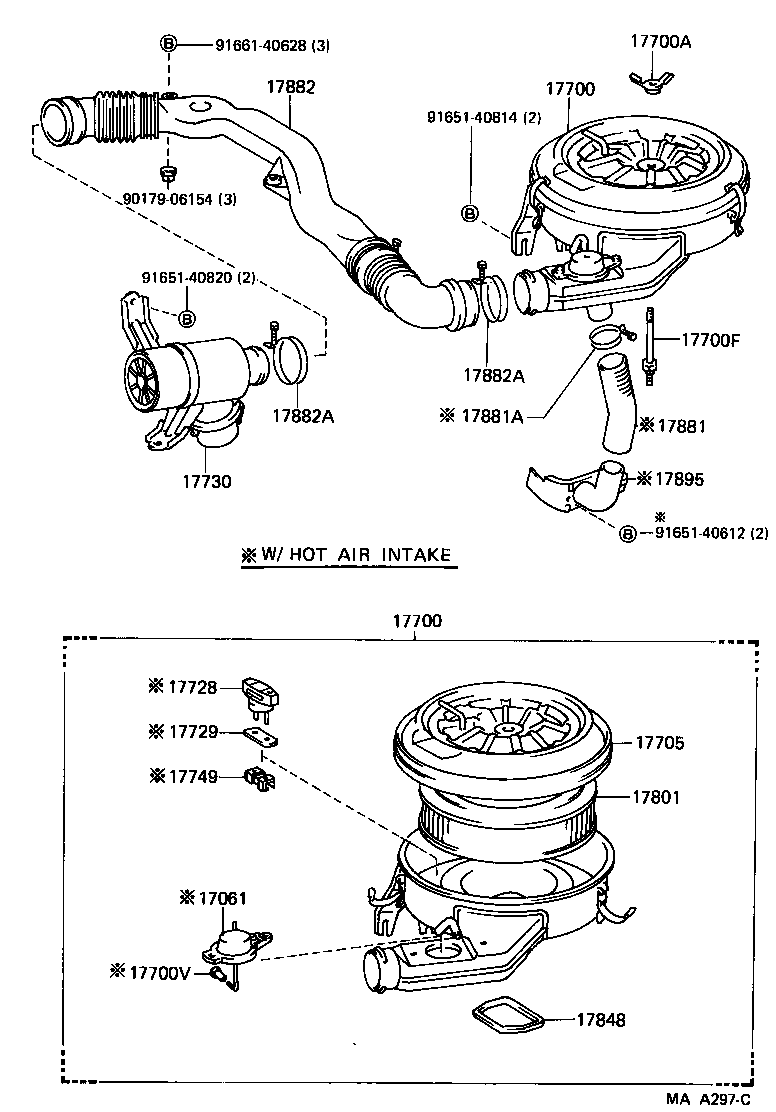

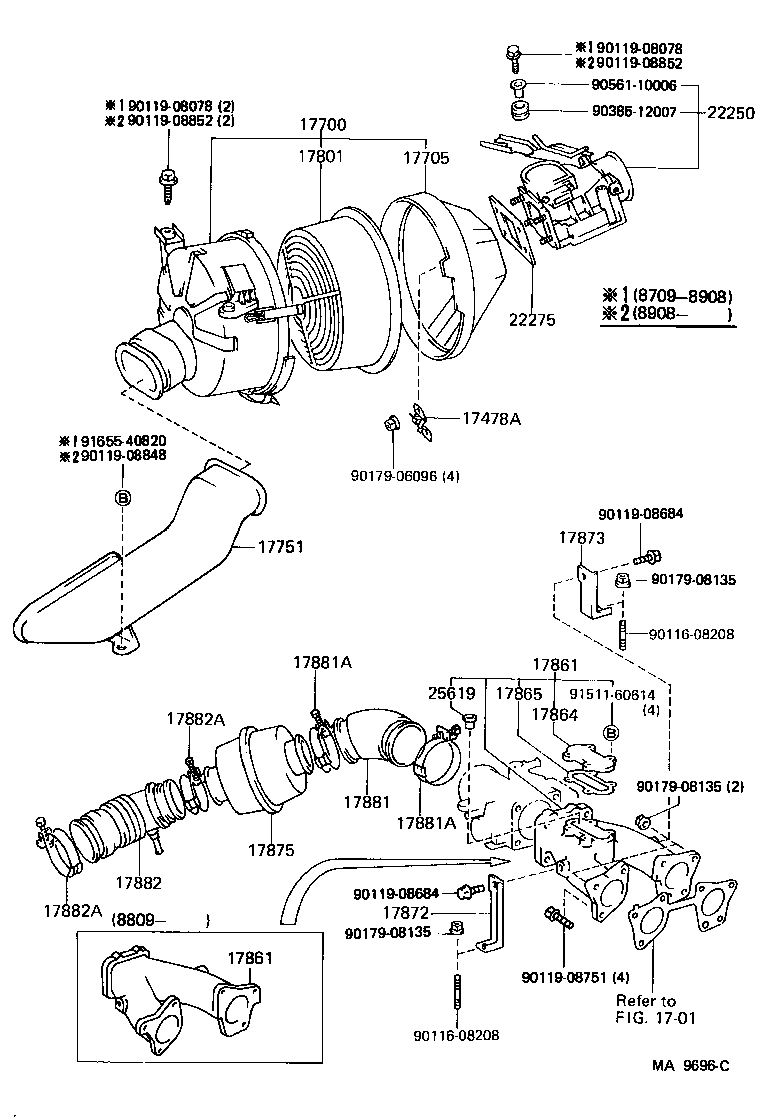

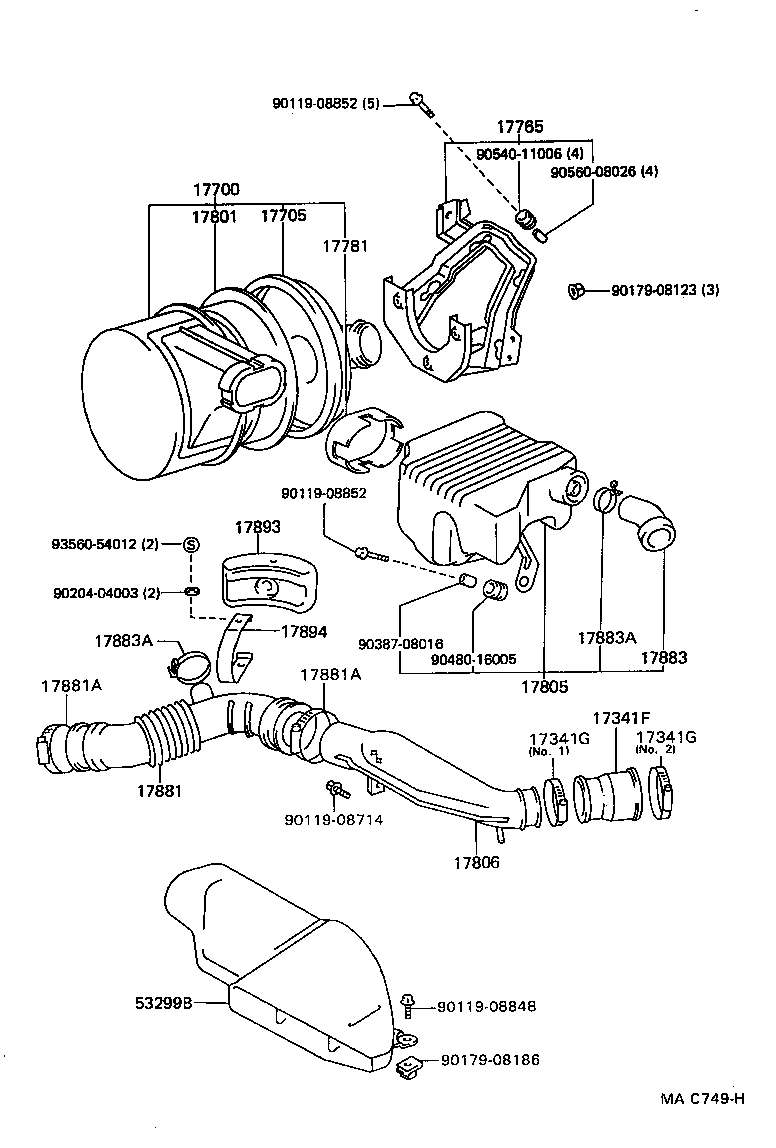

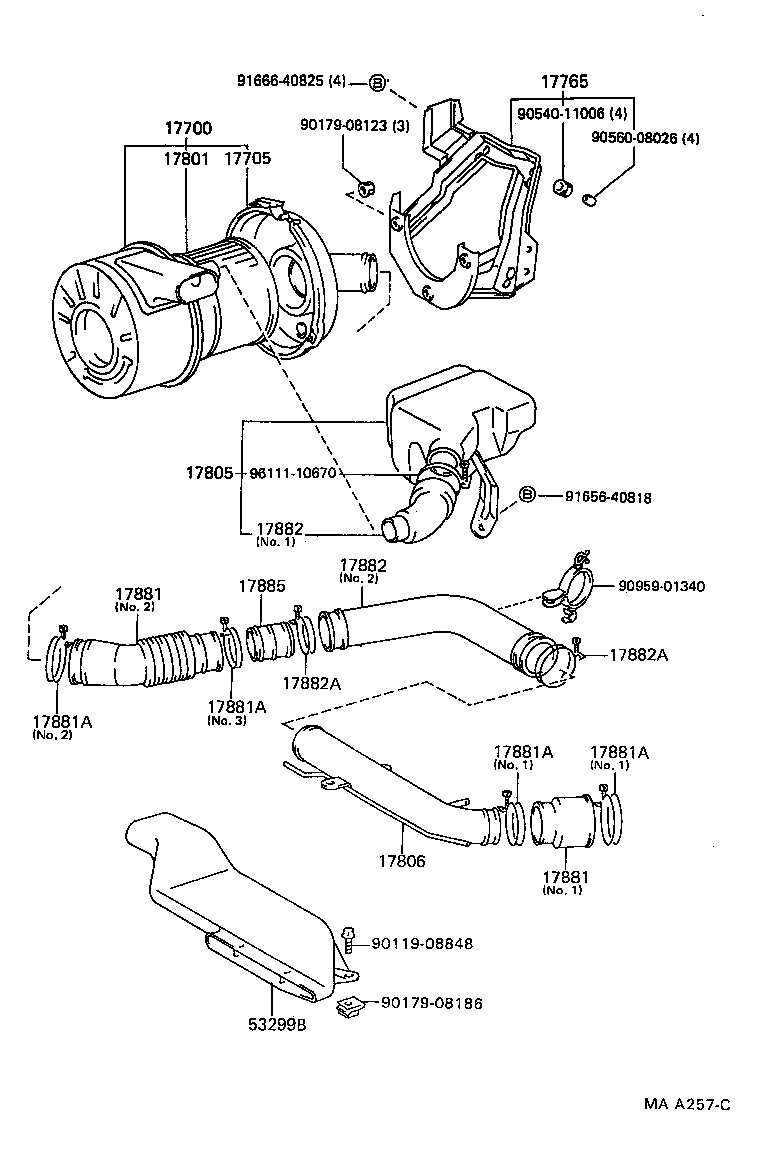

Figure MAC002C MAC002C 1988-12 → — Figure MAA257C MAA257C 1987-09 → 1989-08 Figure MAC749H MAC749H 1989-08 → — Figure MAA400 MAA400 1987-09 → — Figure MAC412B MAC412B 1987-09 → — Figure MA9696C MA9696C 1987-09 → — Figure MAA297C MAA297C 1987-09 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17341F Hose, Air, NO.1
17478A Plate, Lock
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700V Bush(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17729 Gasket, Thermostat Valve
17730 Precleaner Assy, Air W/Hose
17749 Support, Thermostat Valve
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17856 Gasket, Air Intake Flange
17861 Connector, Intake Air
17861C Cap(FOR INTAKE AIR CONNECTOR)
17864 Cover, Intake Air Connector
17865 Gasket, Intake Air Connector Cover
17872 Bracket, Intake Air Connector
17873 Bracket, Intake Air Connector, NO.2
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17894 Bracket, Resonator
17895 Shroud, Hot Air
21071C Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25619 Tube, Egr Inlet
53299B Duct, Cool Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
