Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 13 illustrations

Illustrations

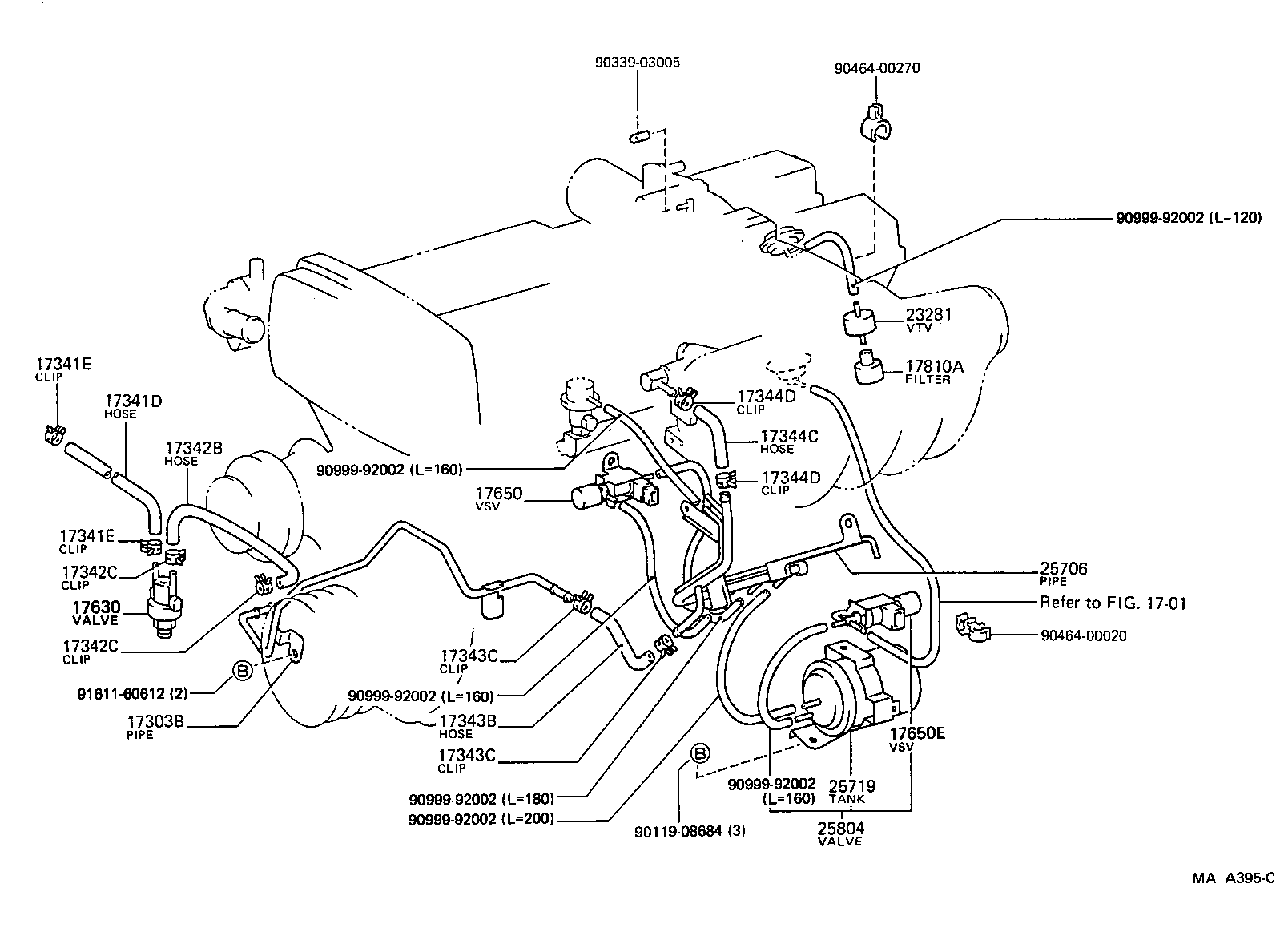

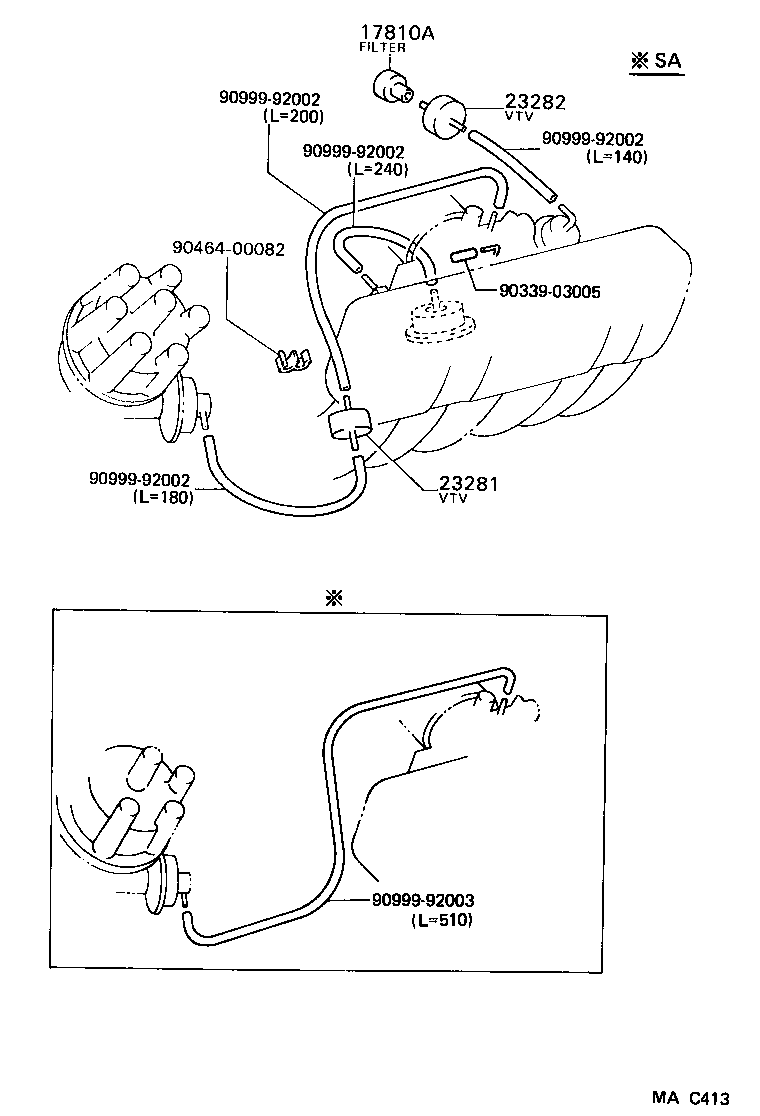

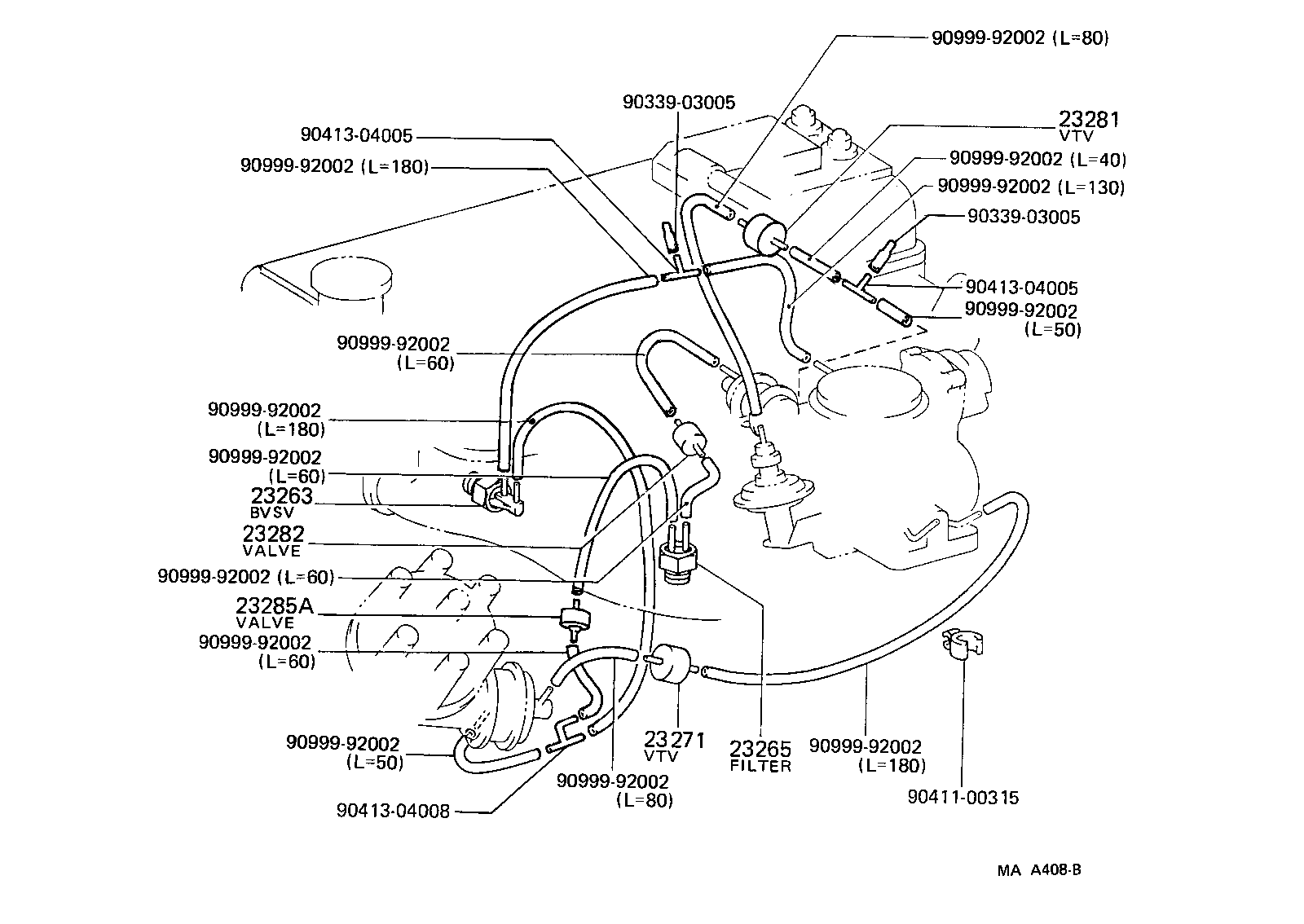

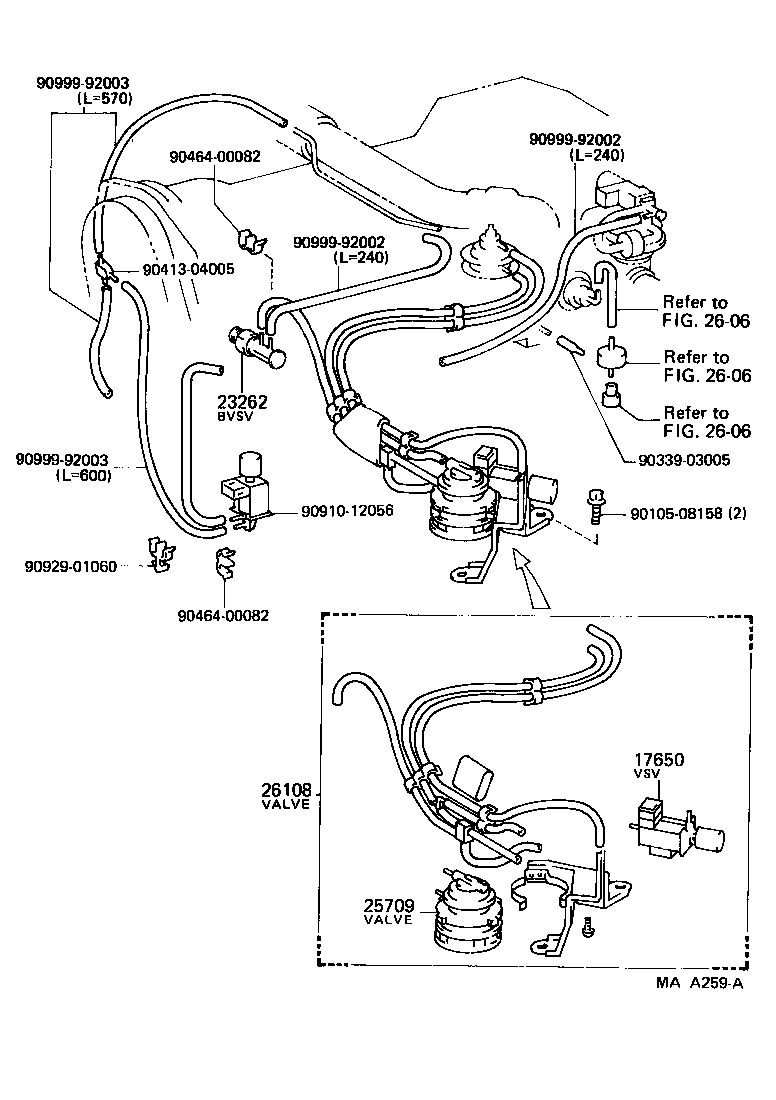

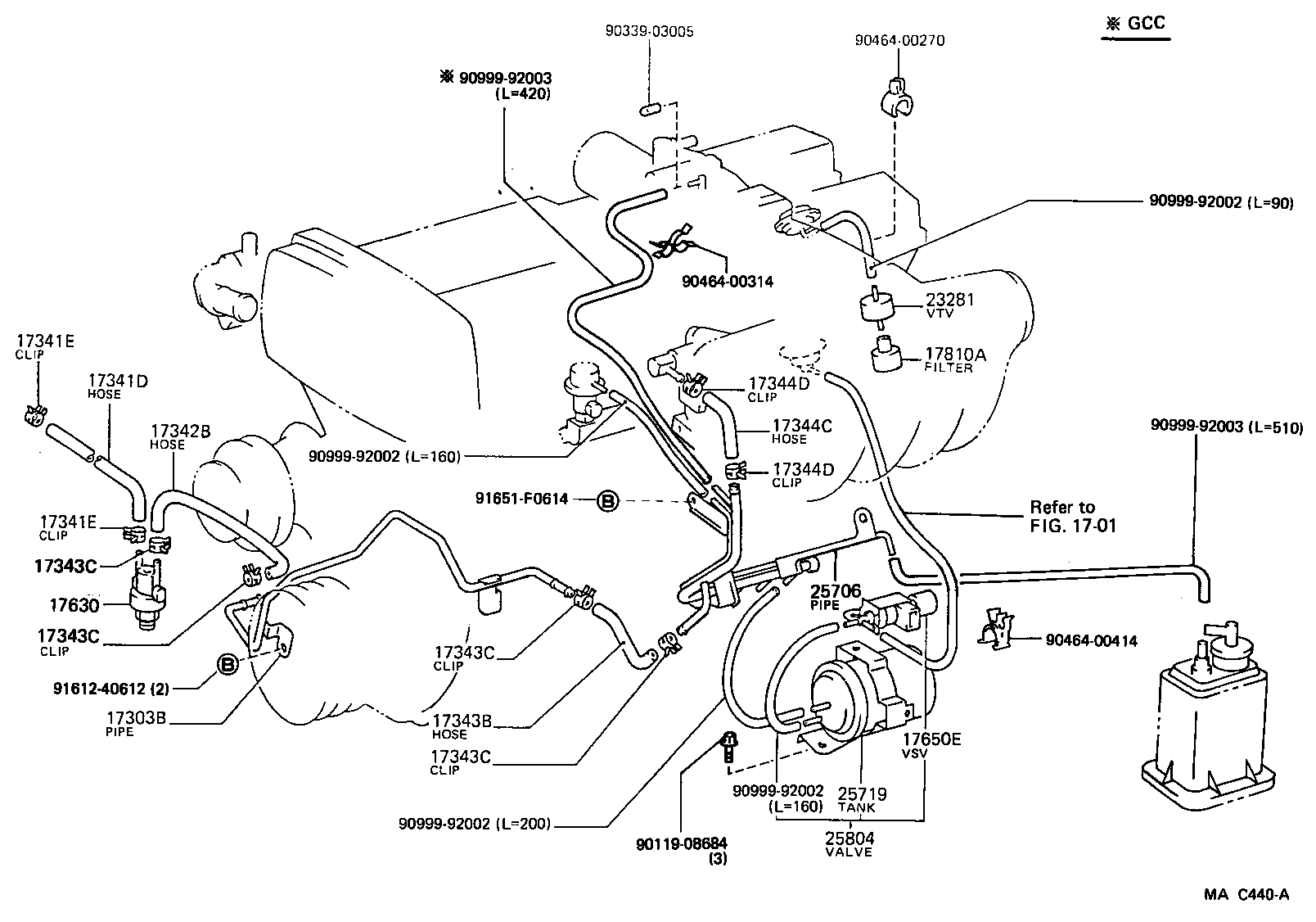

Figure MA9504B MA9504B 1988-12 → — Figure MAC003C MAC003C 1988-12 → — Figure MA9504B MA9504B 1988-12 → — Figure MAA259A MAA259A 1987-09 → 1989-08 Figure MAC802B MAC802B 1989-08 → — Figure MA9504B MA9504B 1988-12 → — Figure MAA405B MAA405B 1987-09 → — Figure MAA408B MAA408B 1987-09 → — Figure MAC413 MAC413 1987-09 → — Figure MAA395C MAA395C 1987-09 → 1989-08 Figure MAC440A MAC440A 1989-08 → — Figure MA9504B MA9504B 1988-12 → — Figure MAA298B MAA298B 1987-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
25820 Valve Assy, Bimetal, NO.2
25860A Valve, Vacuum Switching, NO.1
26108 Valve Set, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
