Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

30 part groups · 10 illustrations

Illustrations

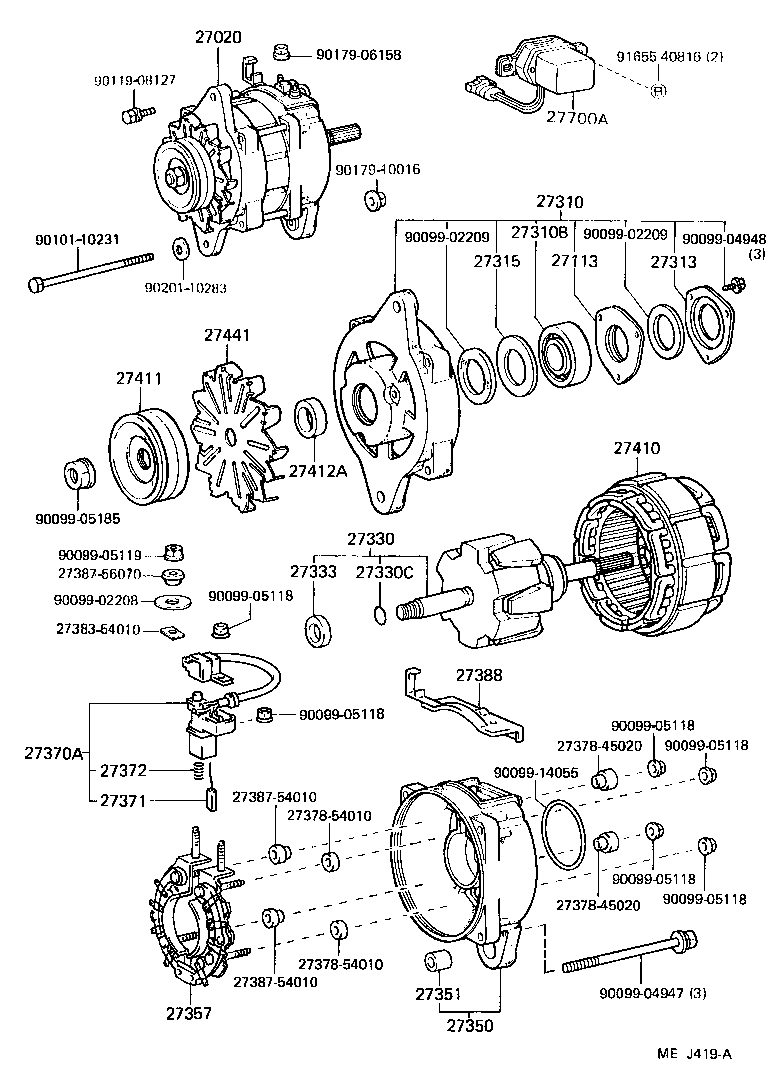

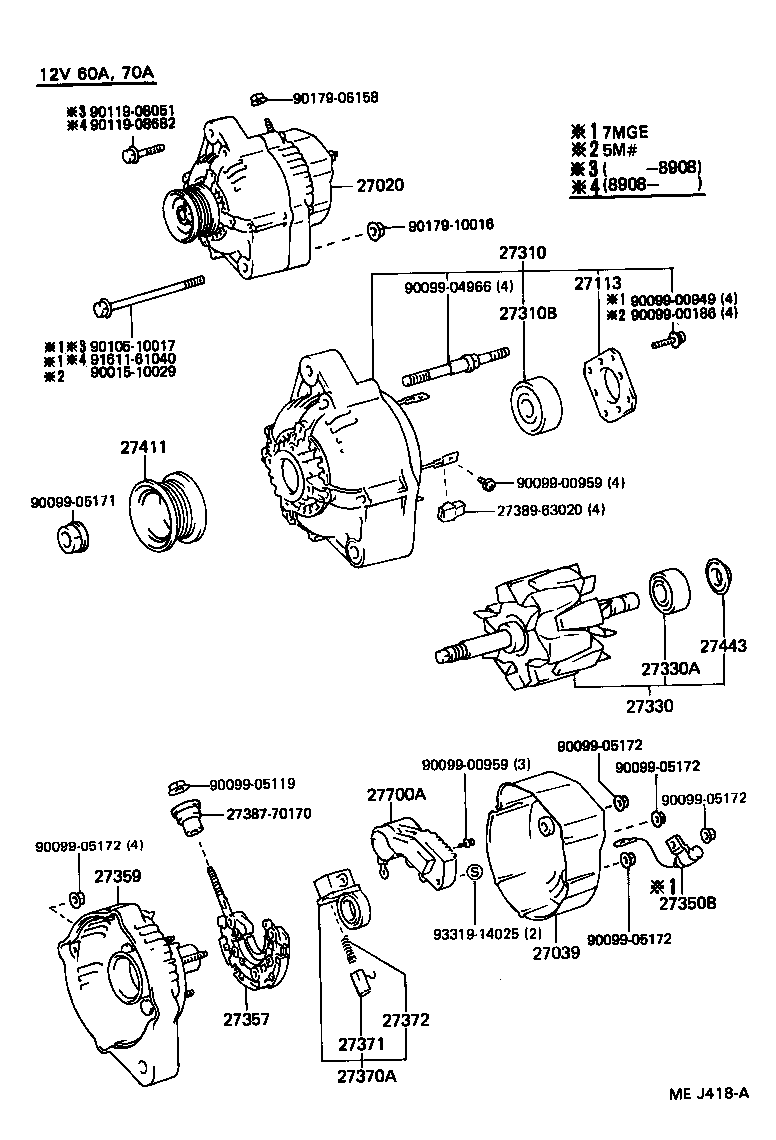

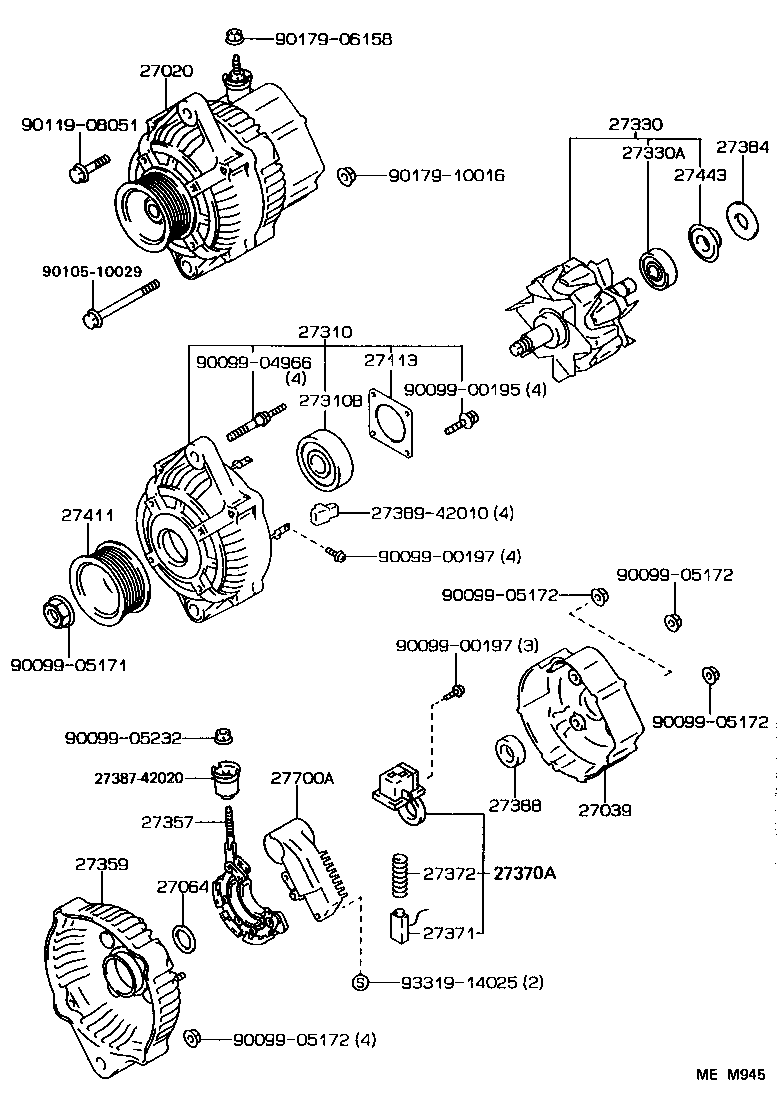

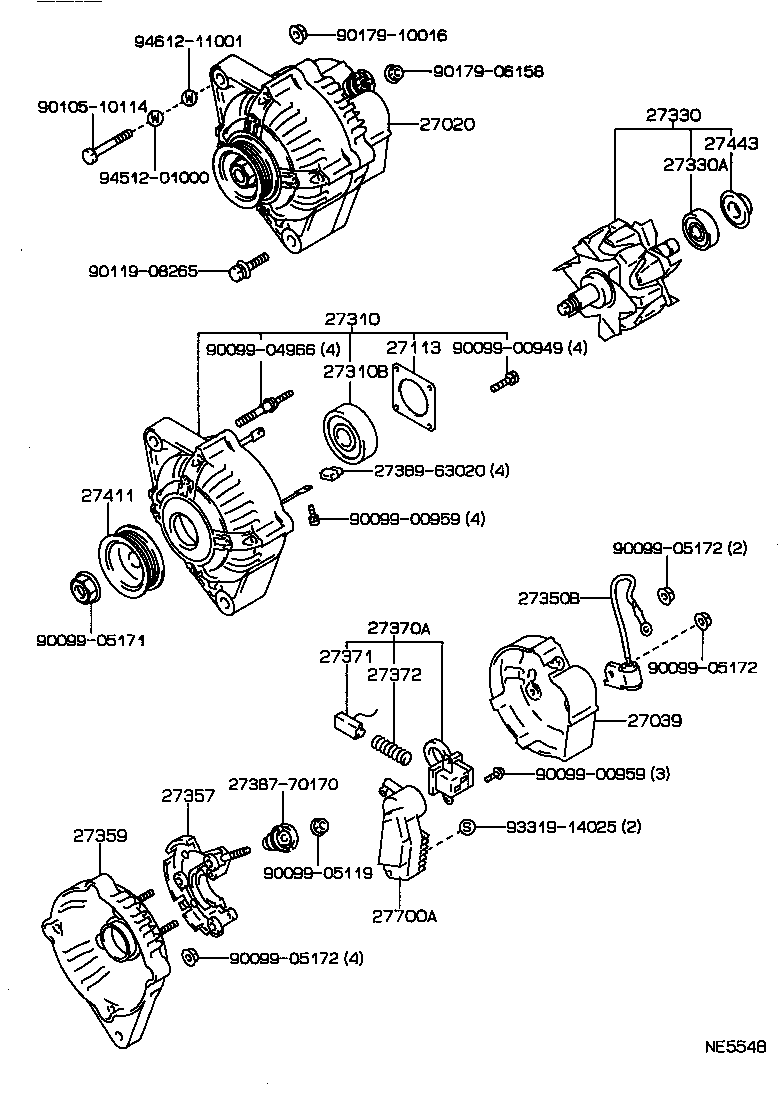

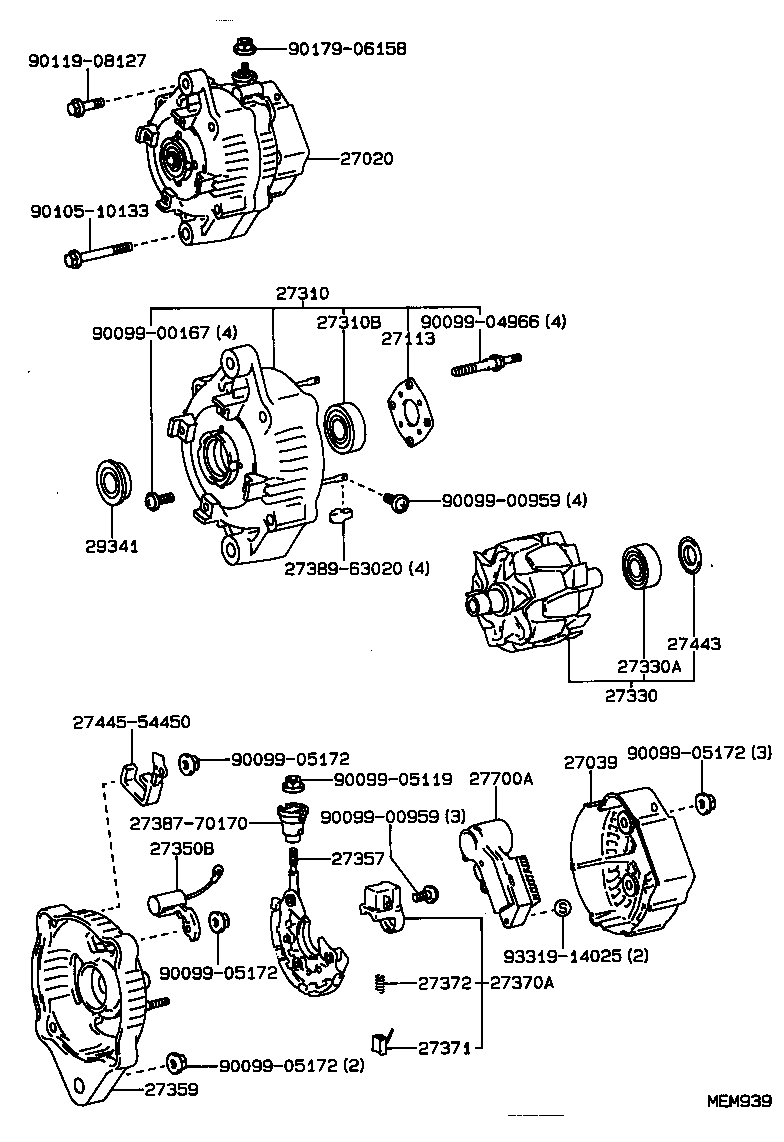

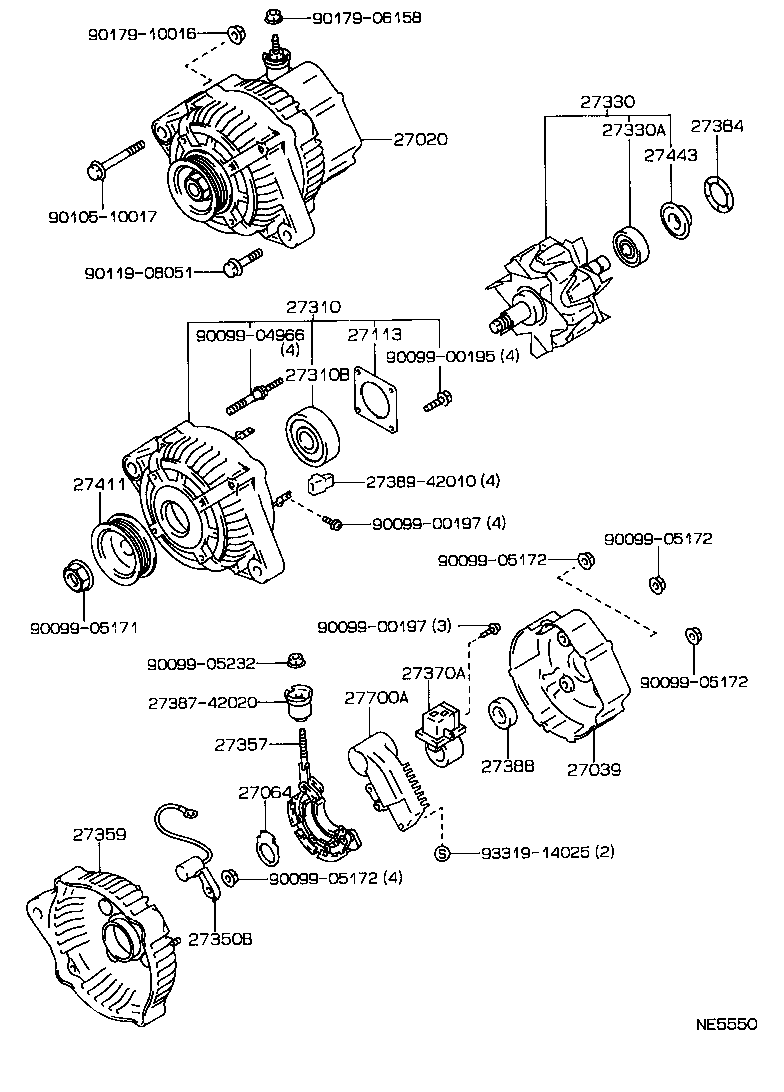

Figure MEJ417C MEJ417C 1987-09 → — Figure NE5548 NE5548 1988-12 → — Figure MEJ418A MEJ418A 1987-09 → 1988-09 Figure MEJ418A MEJ418A 1988-09 → 1989-08 Figure MEJ418A MEJ418A 1988-09 → — Figure MEJ418A MEJ418A 1989-08 → — Figure NE5550 NE5550 1988-09 → — Figure MEM945 MEM945 1989-08 → — Figure MEJ419A MEJ419A 1987-09 → 1989-08 Figure MEM939 MEM939 1989-08 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27113 Plate, Bearing Retainer, Alternator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27330C Ring, Snap
27333 Collar, Space(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27350B Condenser, Alternator
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27362 Rectifier Assy, W/Brush
27370A Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27384 Washer
27388 Cover, Alternator Brush
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412A Collar, Space(FOR ALTERNATOR DRIVE END FRAME)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
29341 Seal, Alternator Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
