Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

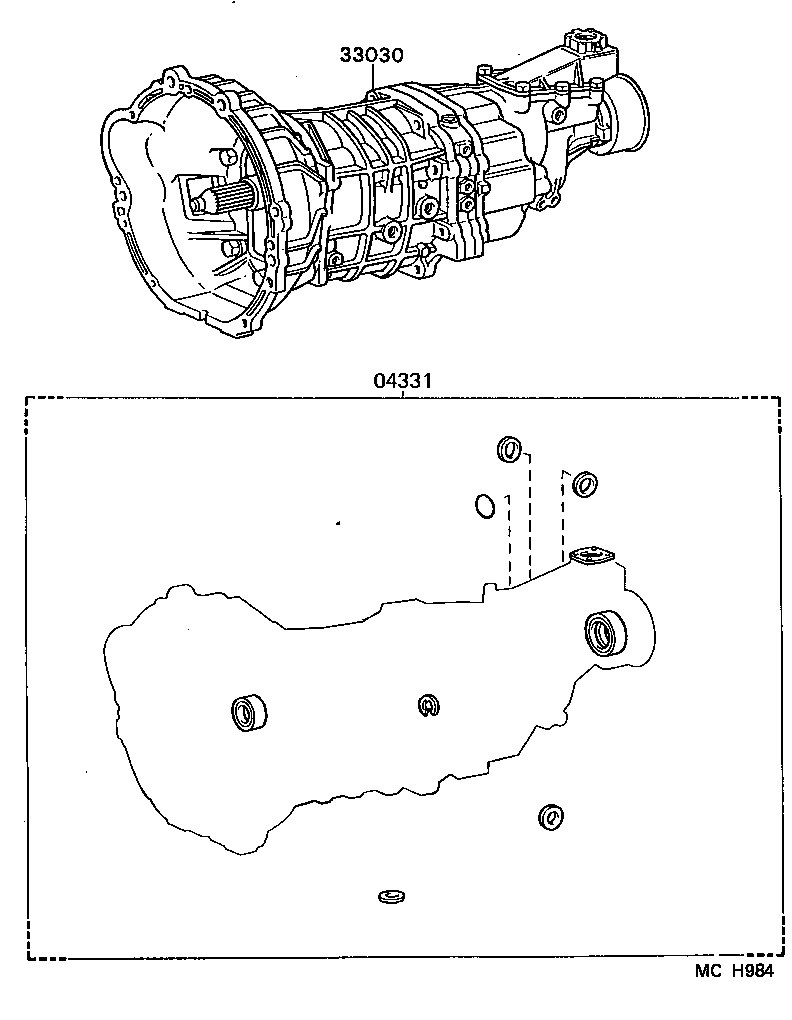

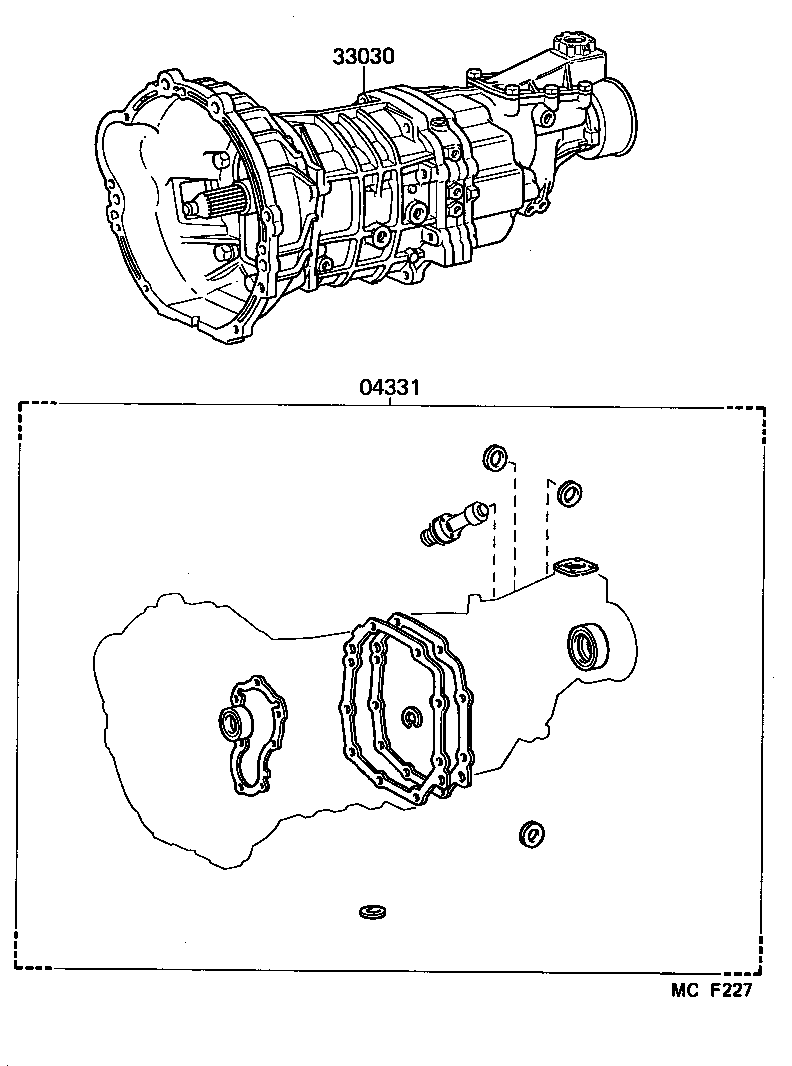

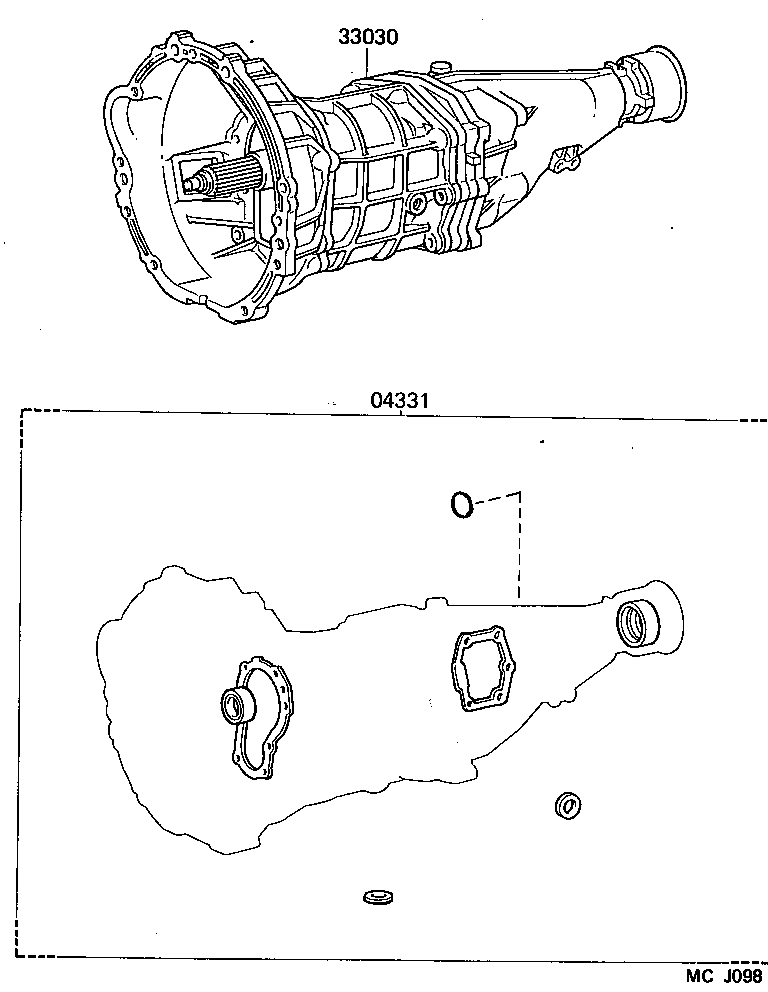

Figure MCF226 MCF226 1987-09 → 1989-08 Figure MCJ098 MCJ098 1989-08 → — Figure MCF227 MCF227 1987-09 → 1989-08 Figure MCH984 MCH984 1989-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
