Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

11 part groups · 2 illustrations

Illustrations

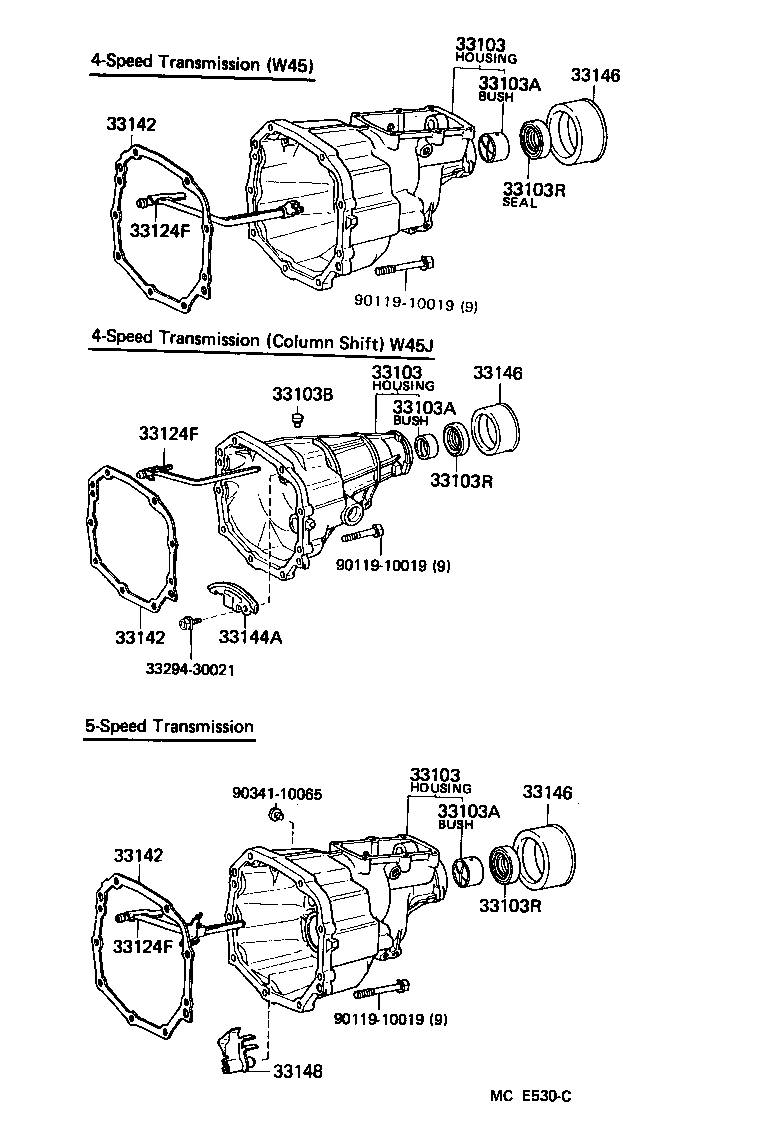

Figure MCE485B MCE485B 1987-09 → — Figure MCE530C MCE530C 1987-09 → —

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124A Clamp(FOR TRANSMISSION OIL RECEIVER PIPE)
33124F Pipe, Oil Receiver, NO.1(FOR EXTENSION HOUSING)
33124G Pipe, Oil Receiver, NO.2(FOR EXTENSION HOUSING)
33142 Gasket, Extension Housing(MTM)
33144A Deflector, Extension Housing Oil(MTM)
33146 Deflector, Extension Housing Dust(MTM)
33148 Shroud, Gear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
