Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

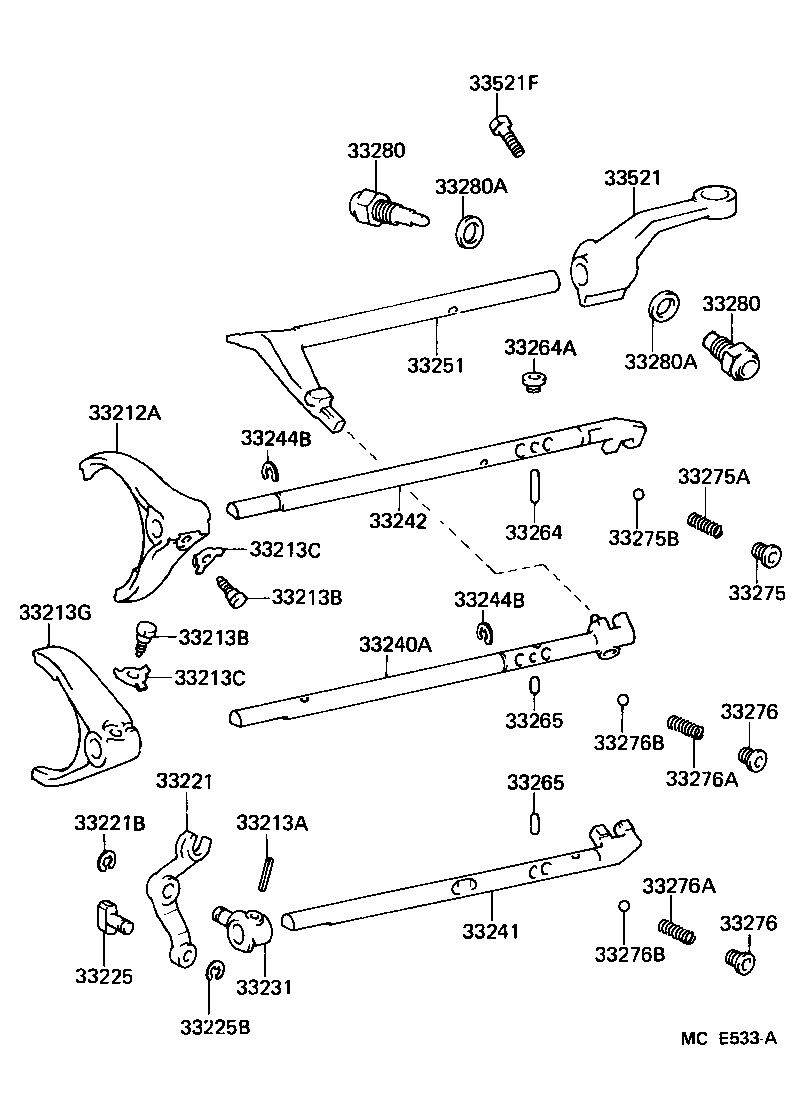

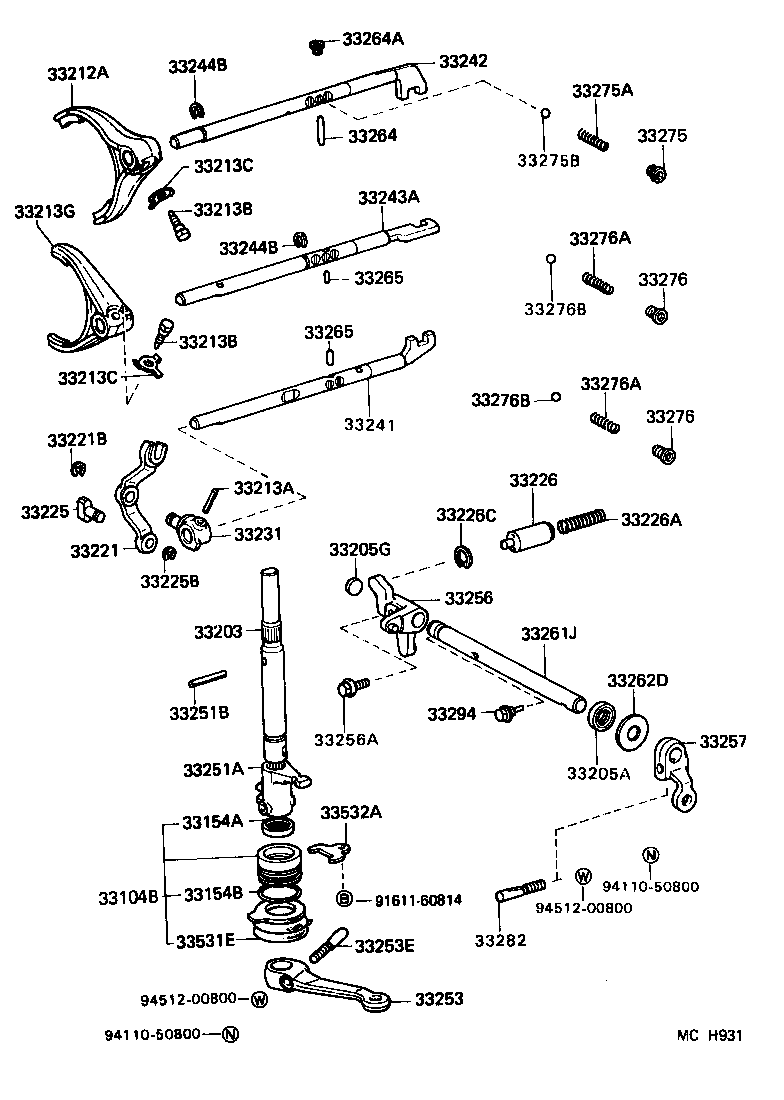

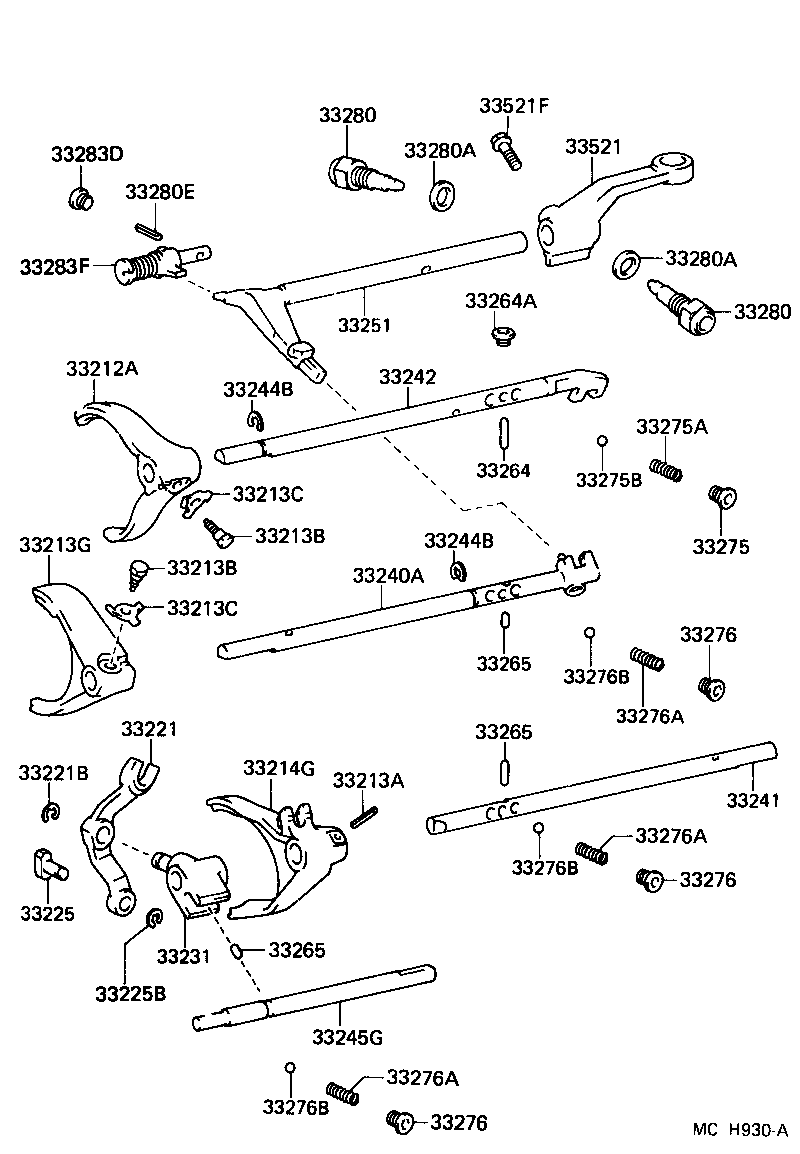

Gear Shift Fork & Lever Shaft (MTM)
68 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33027 | Shaft Set, Shift Lever |
| 33027A | Pin, Slotted Spring(FOR SHIFT LEVER SHAFT SET) |
| 33104B | Retainer Sub-assy, Oil Seal |
| 33154A | Seal, Type T Oil(FOR OIL SEAL RETAINER) |
| 33154B | Ring, O(FOR OIL SEAL RETAINER) |
| 33203 | Shaft Sub-assy, Shift Lever, NO.1 |
| 33203B | Seal, Oil(FOR SHIFT LEVER SHAFT) |
| 33205 | Shaft Sub-assy, Select Lever |
| 33205A | Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT) |
| 33205F | Spring, Compression(FOR SELECT RETURN) |
| 33205G | Plug, Tight(FOR SELECT LEVER SHAFT) |
| 33208 | Housing Sub-assy, Shift Lever Shaft |
| 33212A | Fork, Gear Shift, NO.1 |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213C | Washer, Lock(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33221 | Arm, Reverse Shift |
| 33221B | Ring, E(FOR REVERSE SHIFT ARM) |
| 33225 | Shoe, Shift Arm |
| 33225B | Ring, E(FOR SHIFT ARM SHOE) |
| 33226 | Plunger, Reverse Shift Return |
| 33226A | Spring, Compression(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33226C | Ring, Shaft Snap(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33231 | Head, Reverse Shift |
| 33240A | Shaft Assy, Gear Shift Fork, NO.2 |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33244G | Shaft, Gear Shift Fork, NO.3 |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33251 | Lever, Shift & Select |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251B | Pin, Slotted Spring (FOR SHIFT INNER LEVER) |
| 33253 | Lever, Shift Outer, NO.1 |
| 33253A | Pin, Lever Lock (FOR SHIFT OUTER LEVER) |
| 33253E | Pin, Lever Lock |
| 33256 | Lever, Select Inner |
| 33256A | Bolt, Set (FOR SELECT INNER LEVER) |
| 33257 | Lever, Select Outer |
| 33261J | Shaft, Shift Lever |
| 33262D | Washer, Plate (FOR SELECT LEVER SHAFT) |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264A | Plug, Interlock Hole |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33266B | Pin, Shift Interlock, NO.3 |
| 33272 | Gasket, Shift Lever Shaft Housing |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33276E | Seat, Select Spring, NO.1 |
| 33280 | Pin Assy, Reverse Restrict |
| 33280A | Gasket, Reverse Restrict Pin |
| 33280E | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33282 | Pin, Lever Lock, NO.2 |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283F | Pin, Reverse Restrict |
| 33294 | Bolt, Shaft Retaining |
| 33521 | Housing, Shift Lever |
| 33521F | Pin OR Bolt (FOR SHIFT LEVER HOUSING) |
| 33531E | Boot, Dust |
| 33532A | Plate, Dust Boot |
| 33555D | Boot, Shift Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
