Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

20 part groups · 3 illustrations

Illustrations

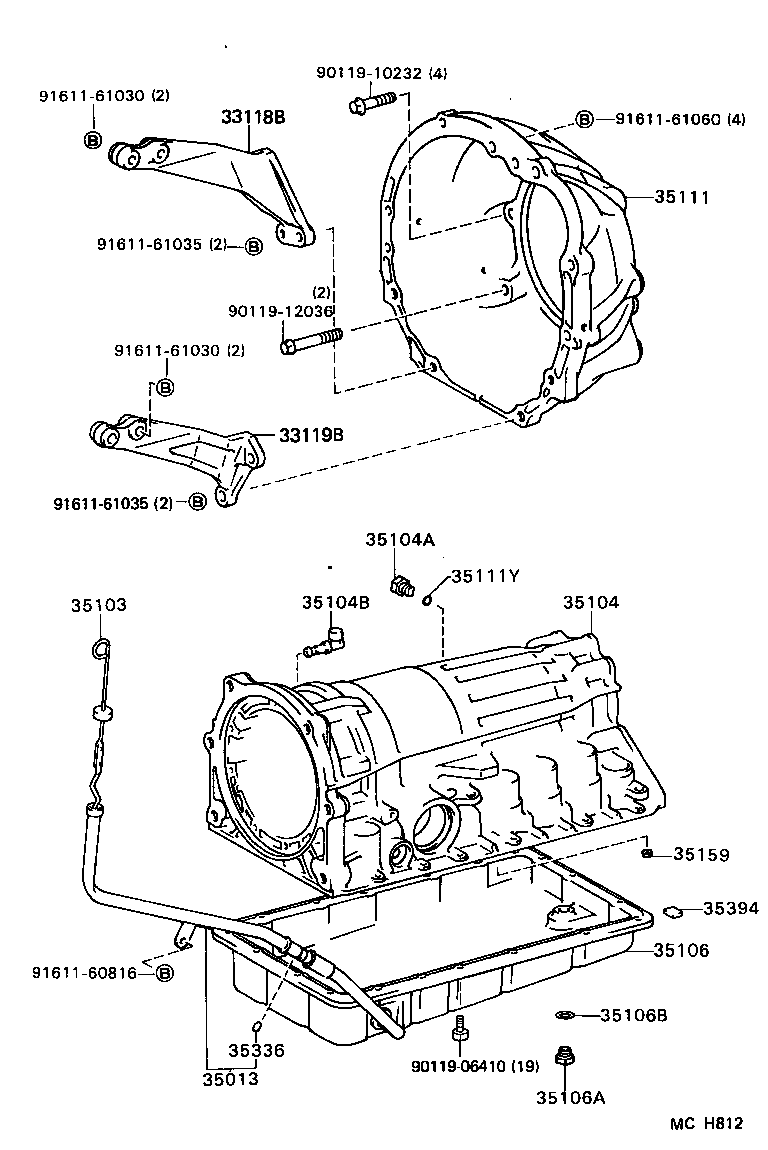

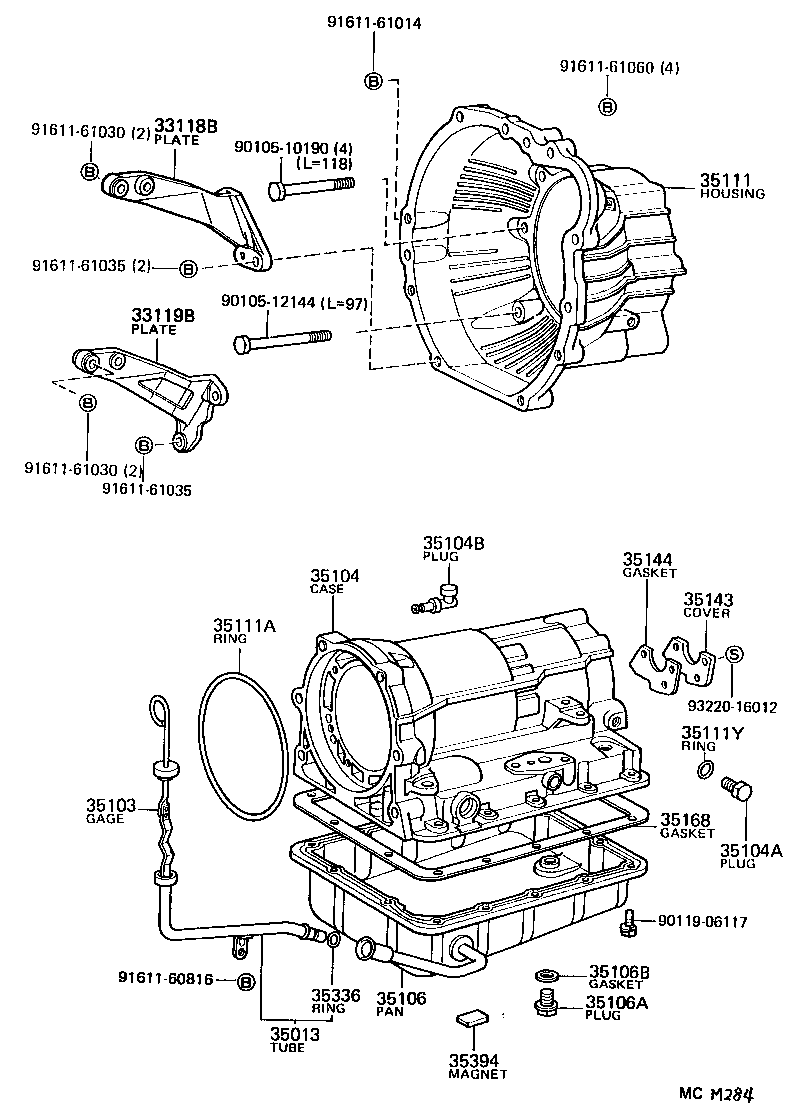

Figure MCF267B MCF267B 1988-12 → — Figure MCM284 MCM284 1987-09 → — Figure MCH812 MCH812 1987-09 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35111 Housing, Automatic Transmission
35111A Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35143 Cover, Transmission Case, Rear
35144 Gasket, Transmission Case Rear Cover
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35395A Strainer, Governor Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
