Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

19 part groups · 10 illustrations

Illustrations

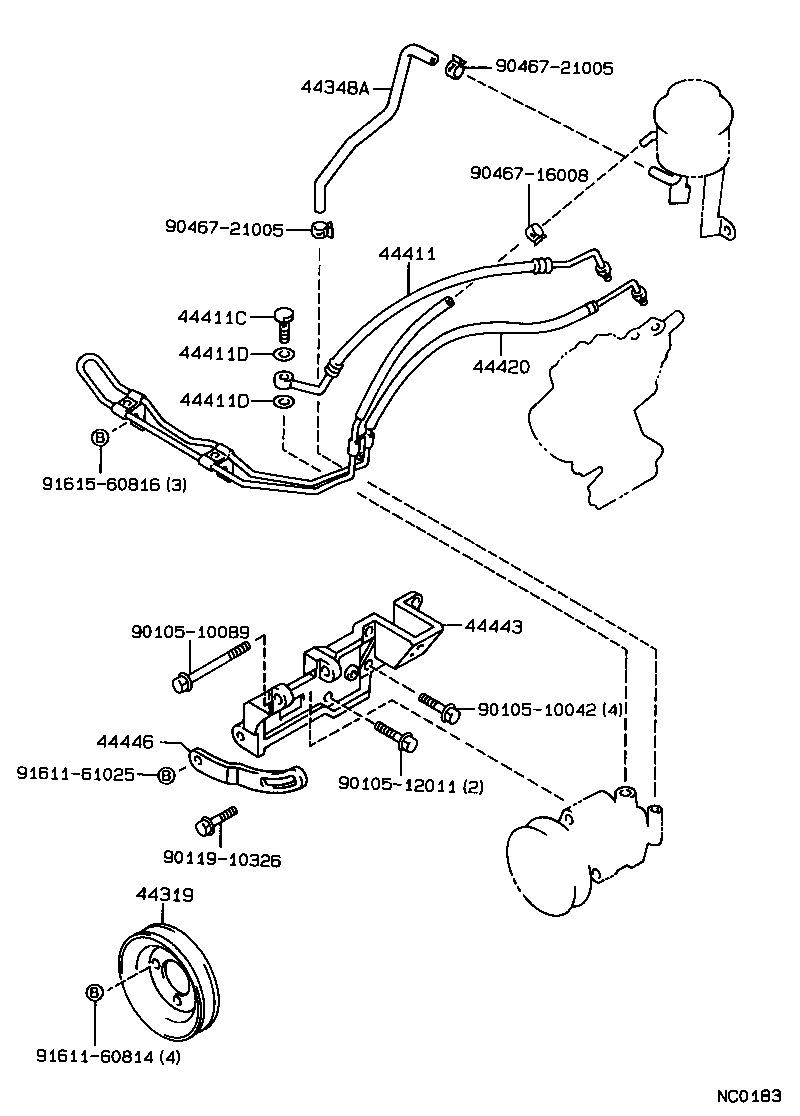

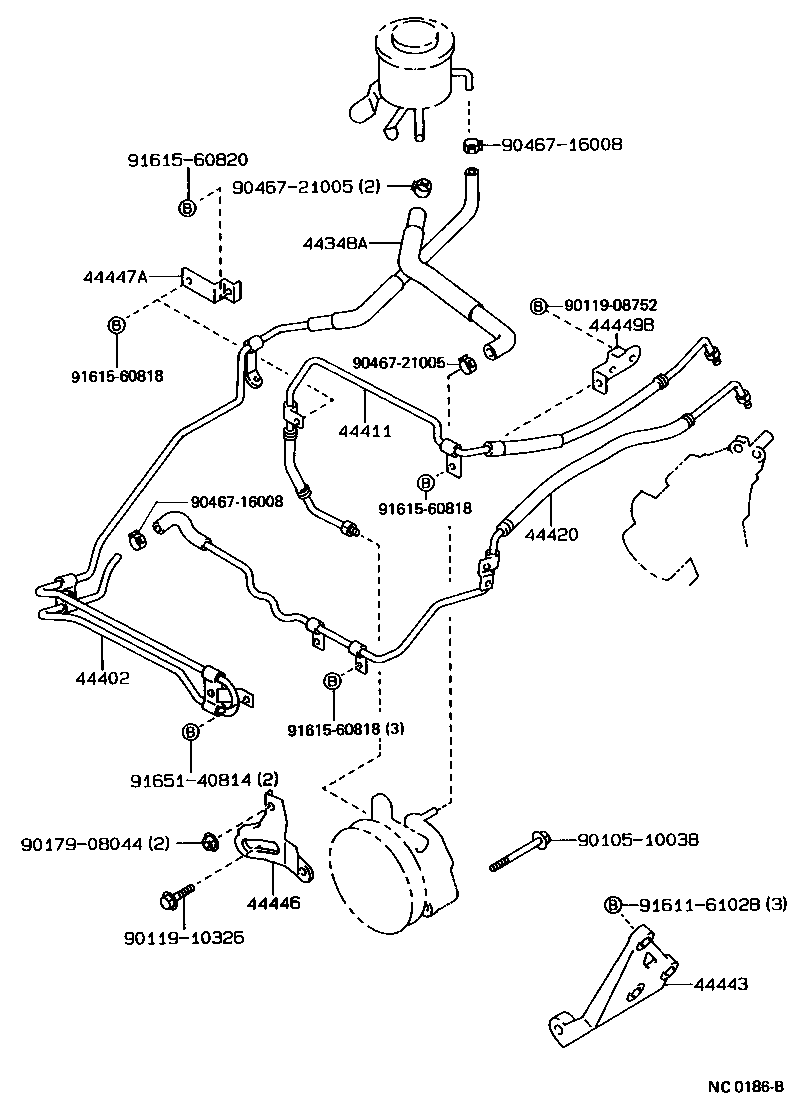

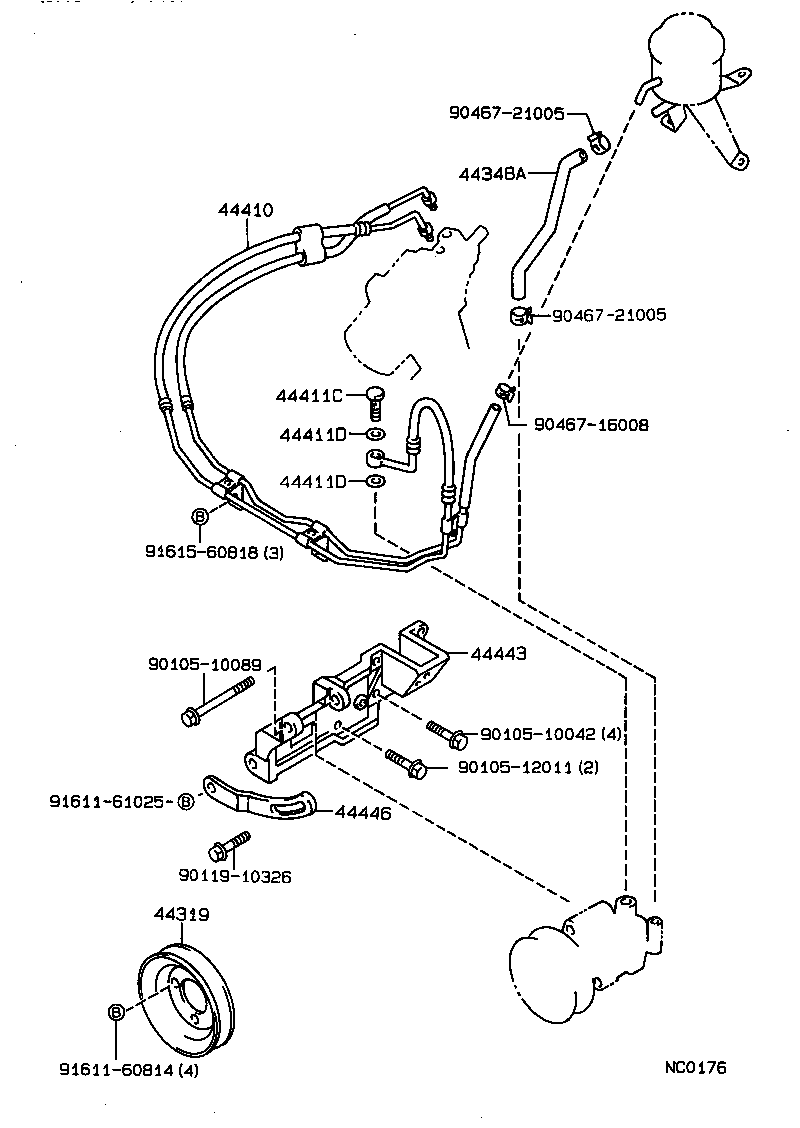

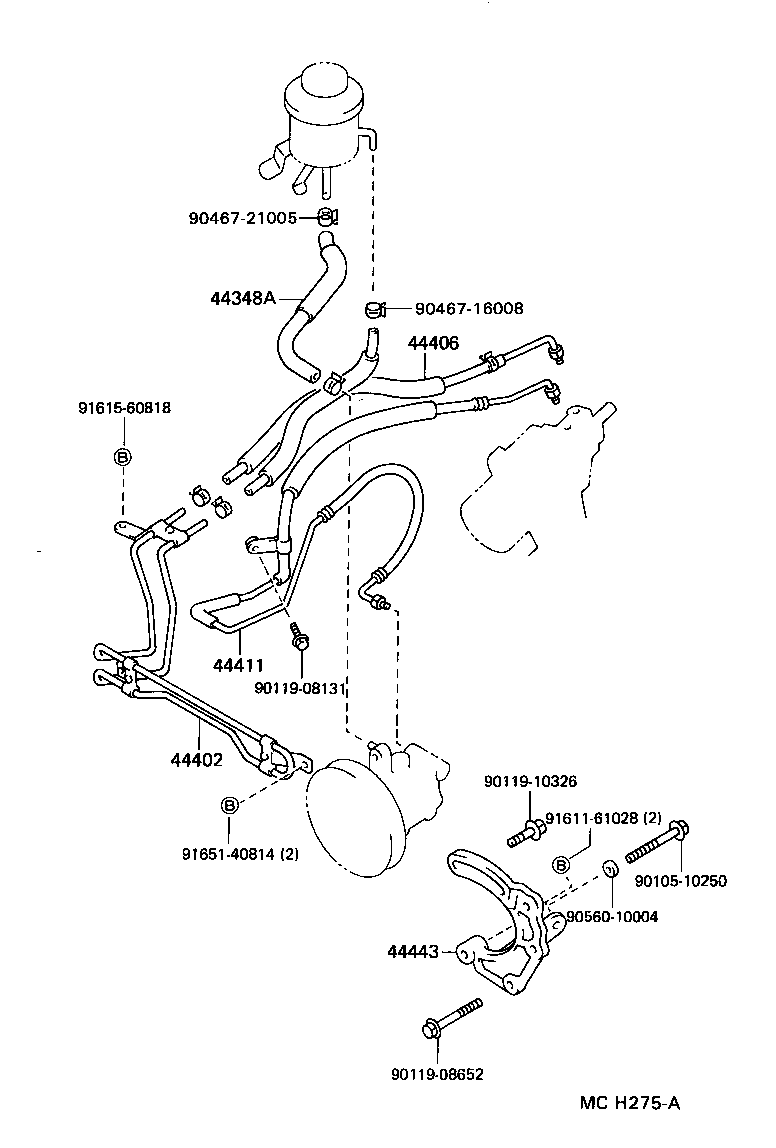

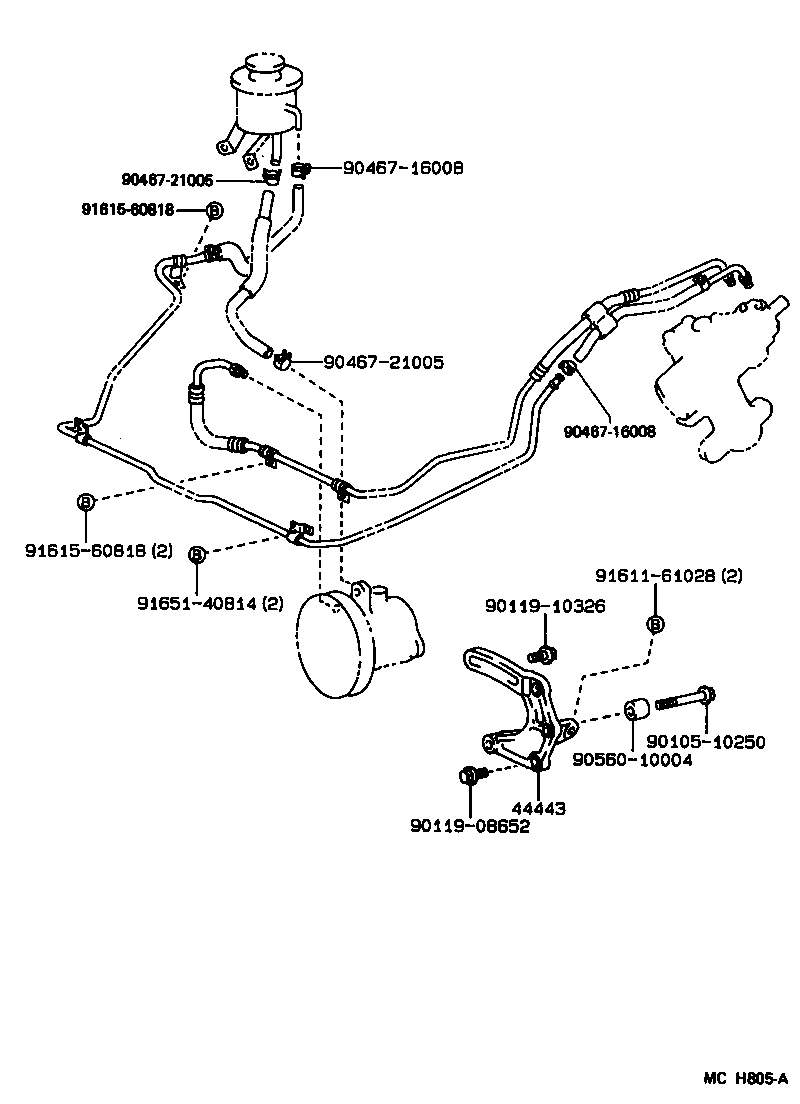

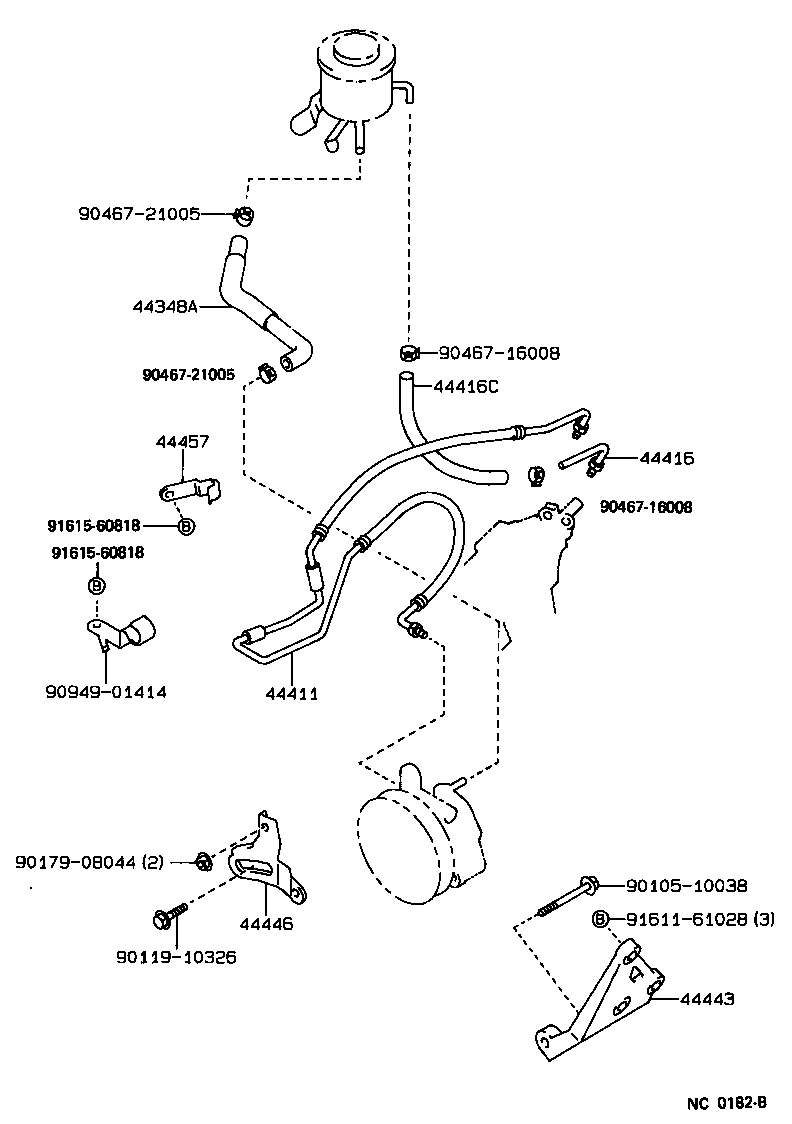

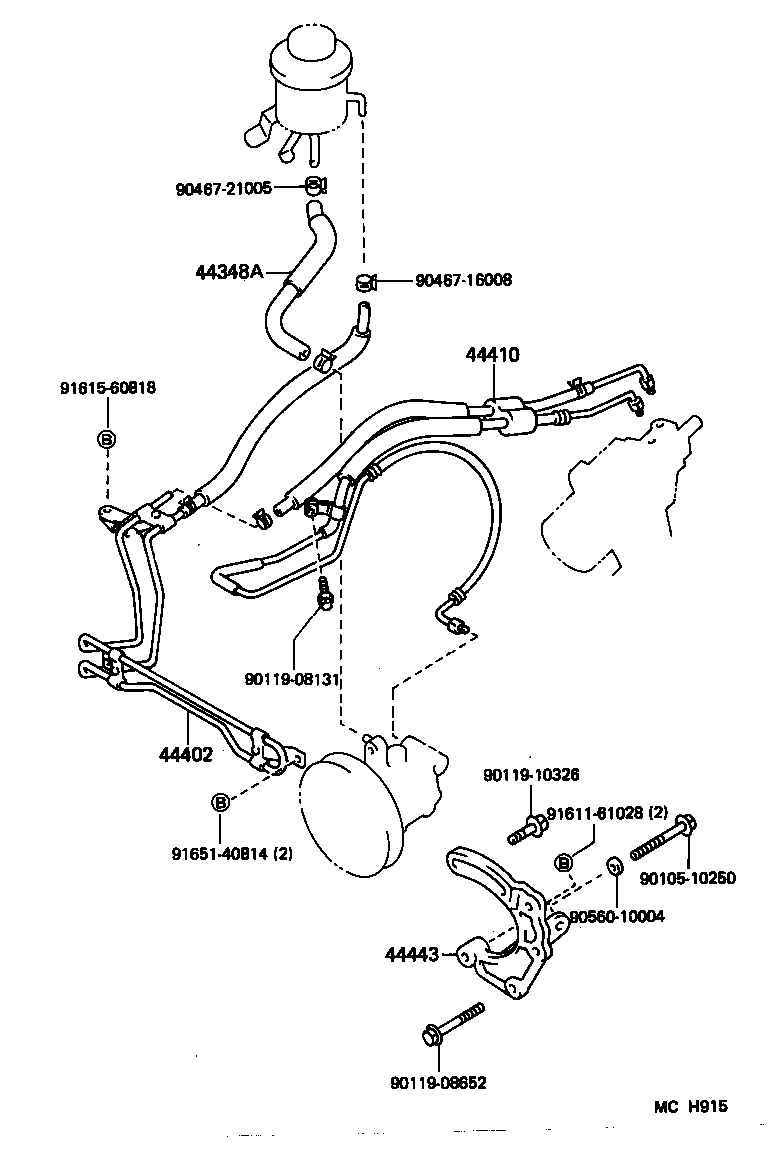

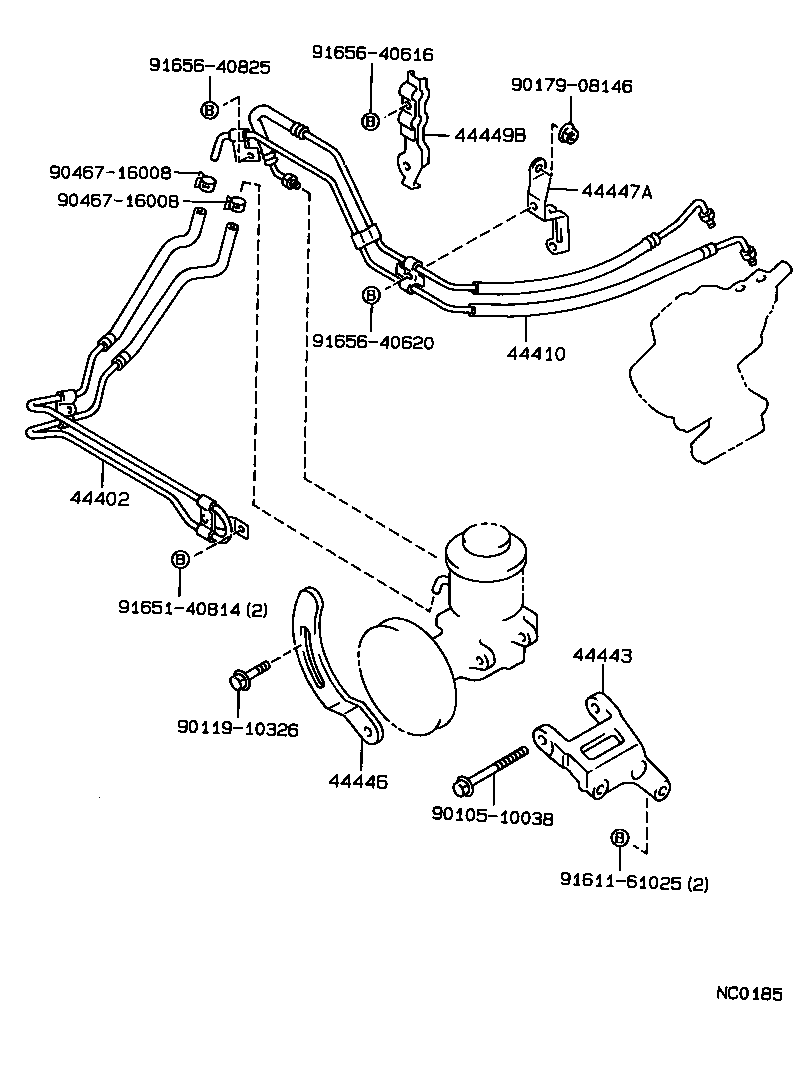

Figure NC0184A NC0184A 1987-09 → — Figure MCH275A MCH275A 1988-12 → 1989-08 Figure MCH915 MCH915 1989-08 → — Figure MCH805A MCH805A 1989-08 → — Figure NC0178 NC0178 1987-09 → — Figure NC0185 NC0185 1987-09 → — Figure NC0182B NC0182B 1987-09 → — Figure NC0186B NC0186B 1987-09 → — Figure NC0176 NC0176 1987-09 → — Figure NC0183 NC0183 1987-09 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44420 Cooler Assy, Oil
44443 Bracket, Pump
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
44449B Bracket, Hose Support, NO.3
44458 Bracket, Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
