Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 4 illustrations

Illustrations

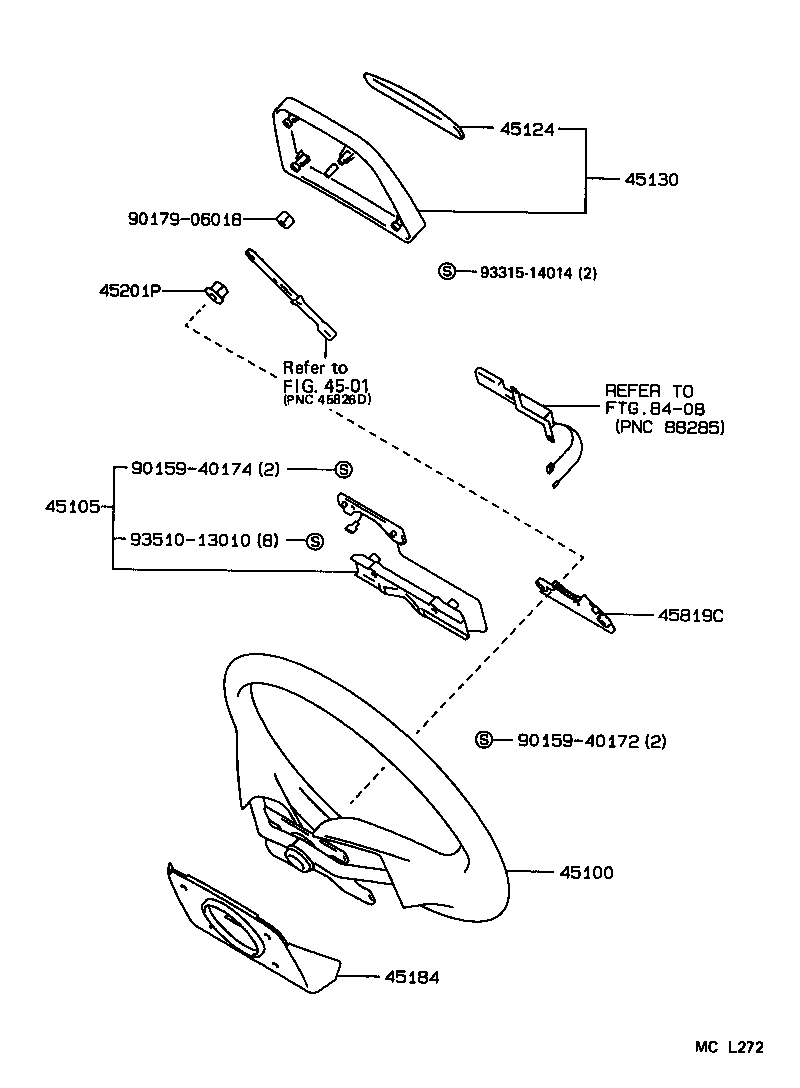

Figure NC0196B NC0196B 1987-09 → 1989-08 Figure NC0740B NC0740B 1989-08 → — Figure NC0193 NC0193 1987-09 → — Figure MCL272 MCL272 1987-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45124 Ornament, Steering Wheel Mark
45126 Plate, Steering Wheel Pad Set
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45819C Retainer, Telescopic Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
