Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Mounting

16 part groups · 6 illustrations

Illustrations

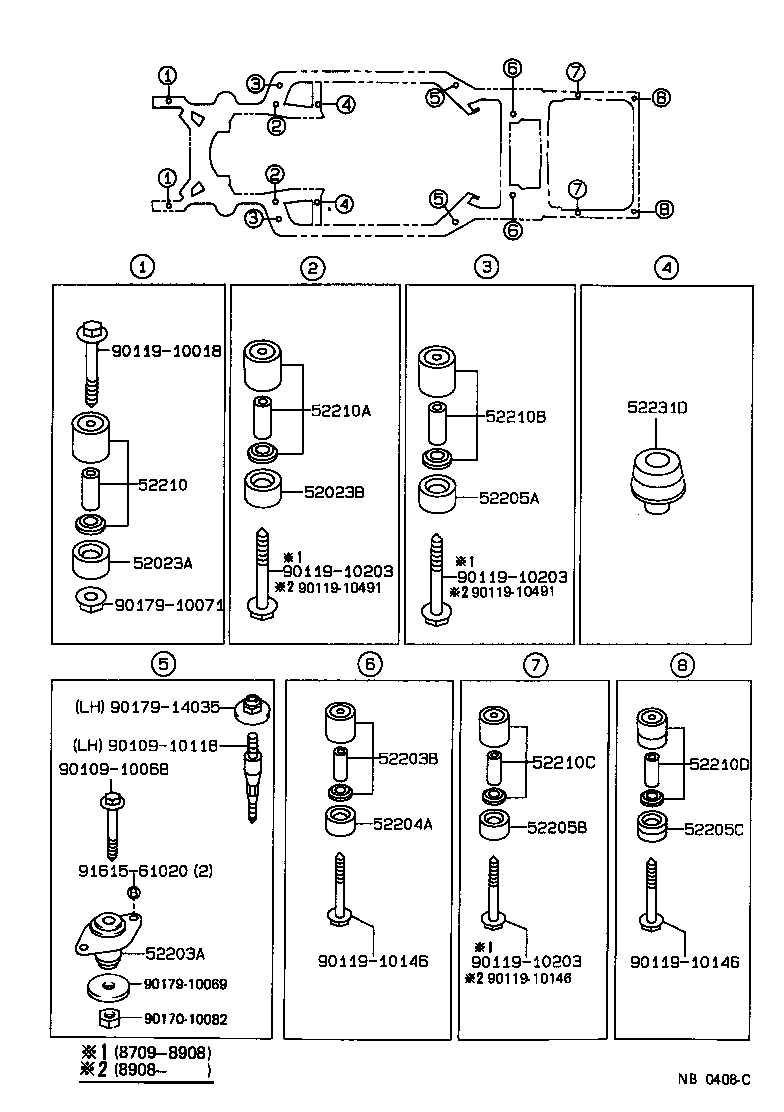

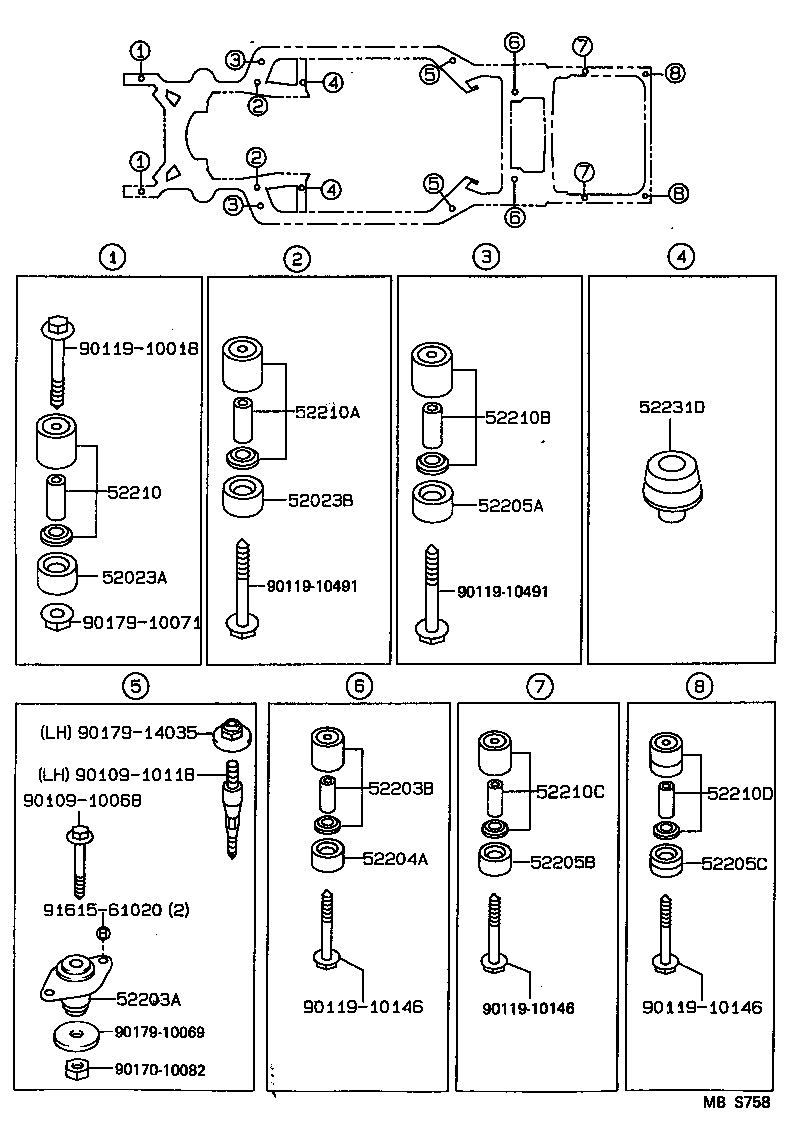

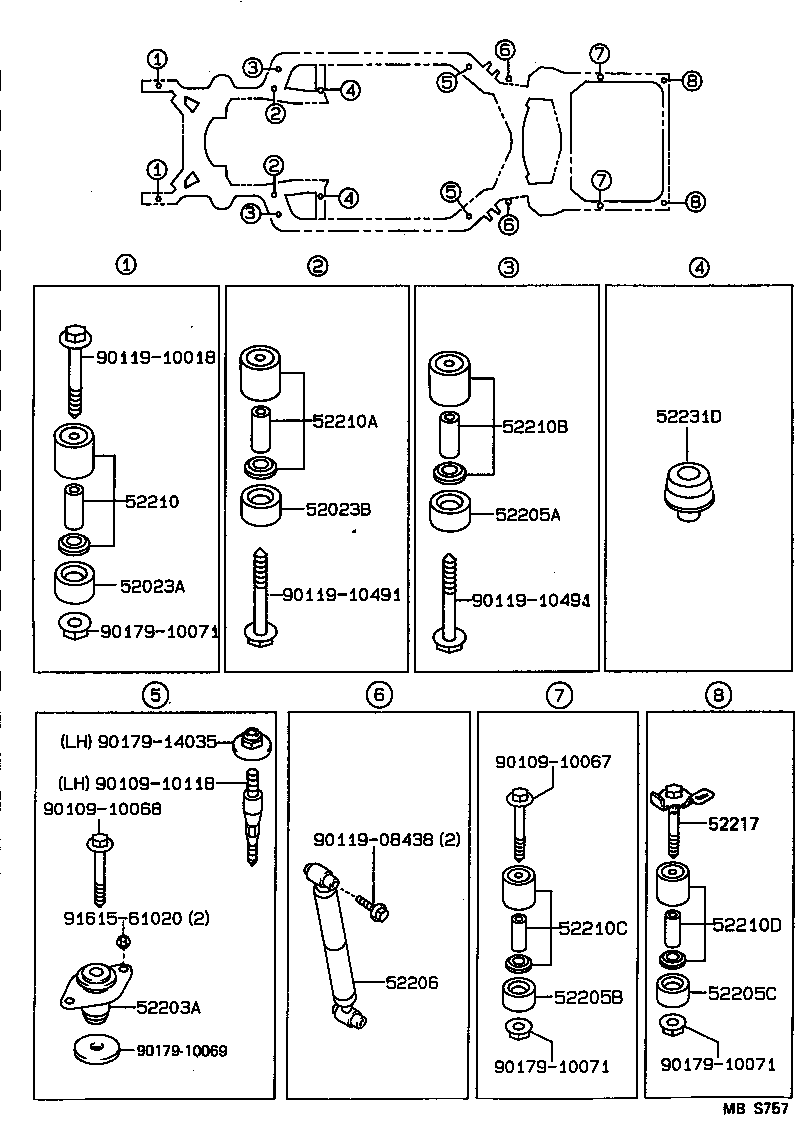

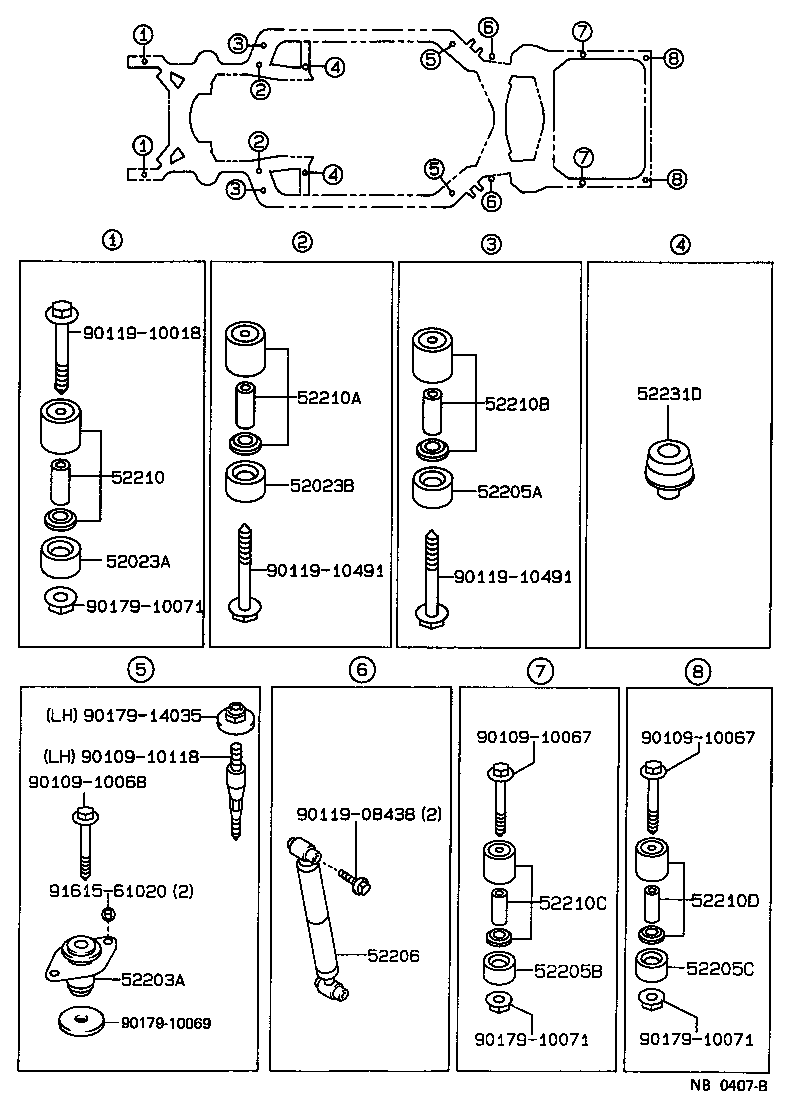

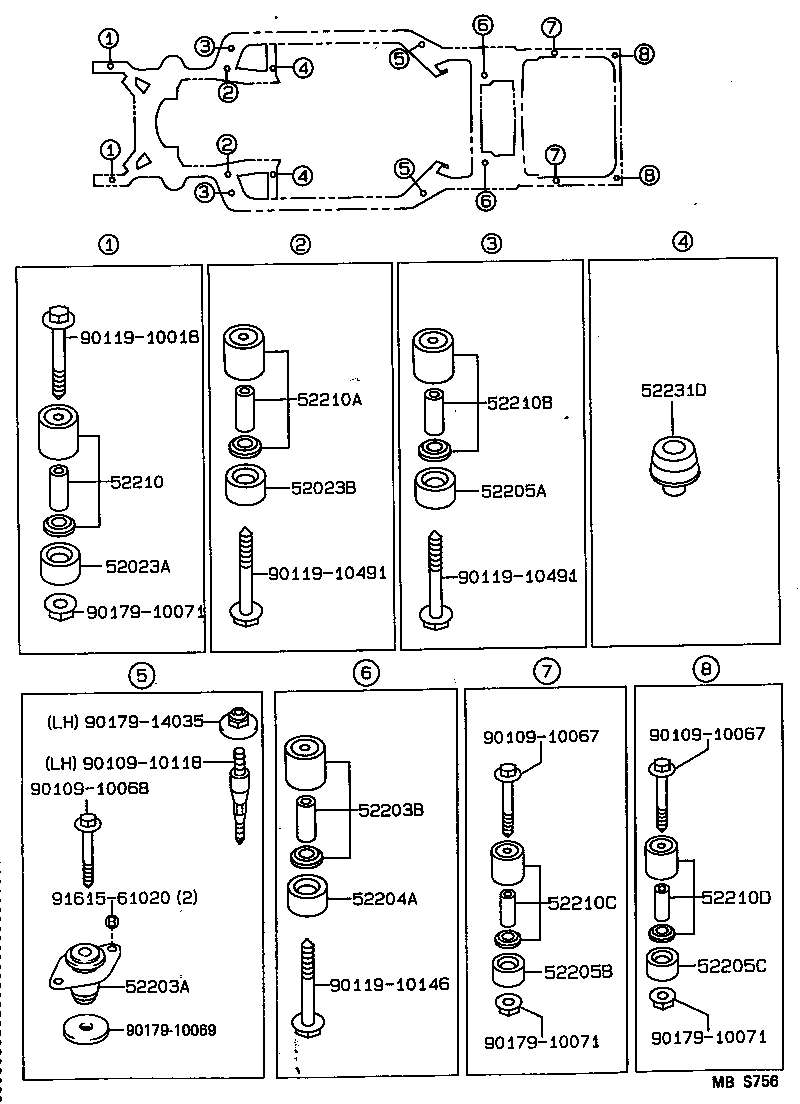

Figure NB0406A NB0406A 1987-09 → 1989-08 Figure MBS756 MBS756 1989-08 → — Figure NB0407B NB0407B 1987-09 → 1989-08 Figure MBS757 MBS757 1989-08 → — Figure NB0408C NB0408C 1987-09 → 1989-08 Figure MBS758 MBS758 1989-08 → —

Part groups

PNCDescription
52023A Cushion Sub-assy, Body Mounting, Rear Lower
52023B Cushion Sub-assy, Body Mounting, Rear Lower
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52203B Cushion Sub-assy, Body Mounting, Rear Upper
52204A Cushion Sub-assy, Body Mounting, Rear Lower
52205A Cushion Sub-assy, Body Mounting, Lower
52205B Cushion Sub-assy, Body Mounting, Lower
52205C Cushion Sub-assy, Body Mounting, Lower
52206 Absorber Sub-assy, Body Mounting
52210 Cushion Assy, Body Mounting, Upper
52210A Cushion Assy, Body Mounting, Upper
52210B Cushion Assy, Body Mounting, Upper
52210C Cushion Assy, Body Mounting, Upper
52210D Cushion Assy, Body Mounting, Upper
52217 Bolt, Body Mounting
52231D Cushion, Body Mounting, Rear Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
