Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

33 part groups · 8 illustrations

Illustrations

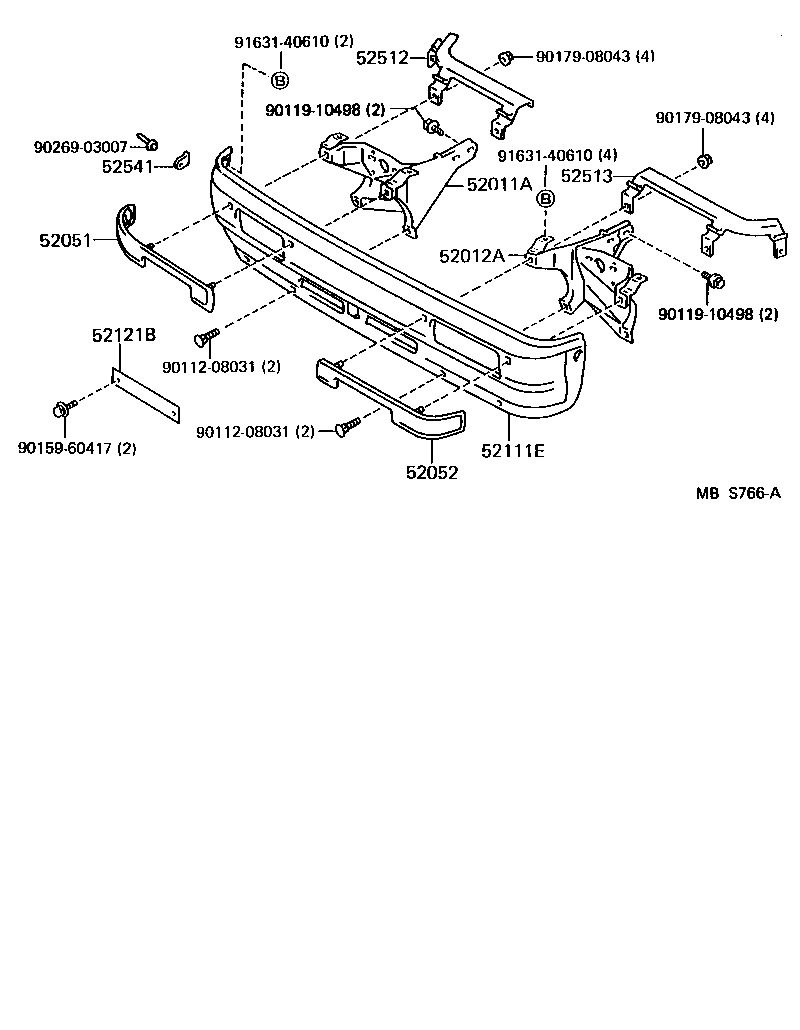

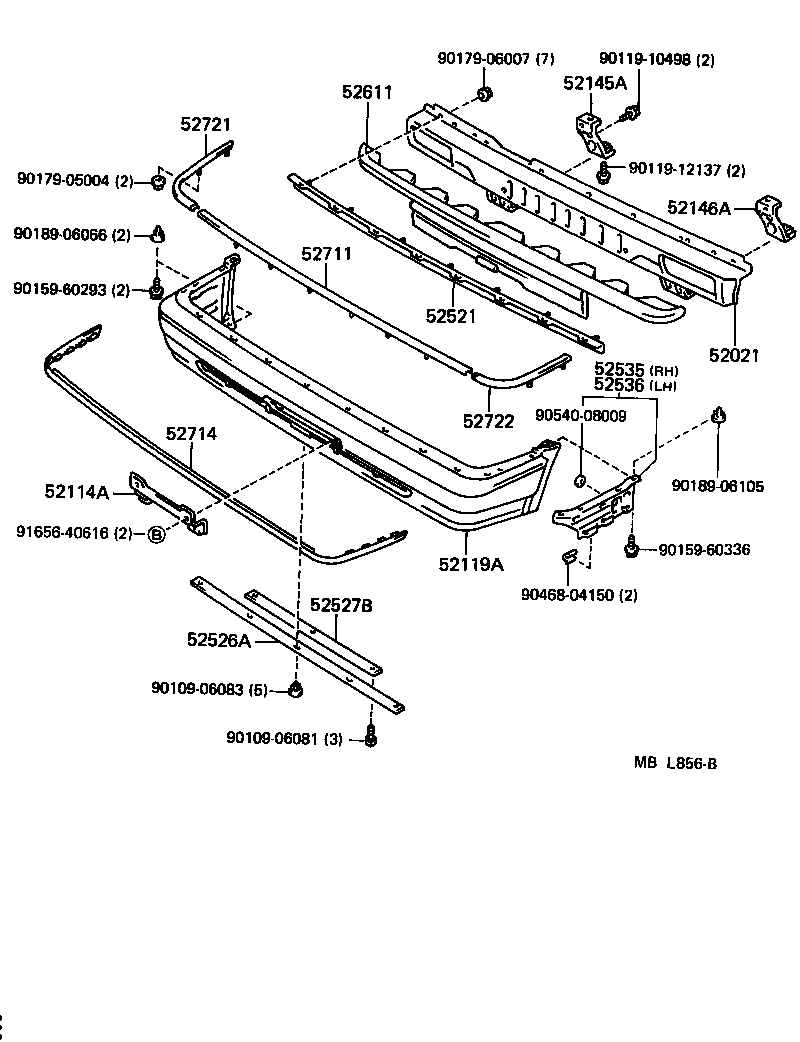

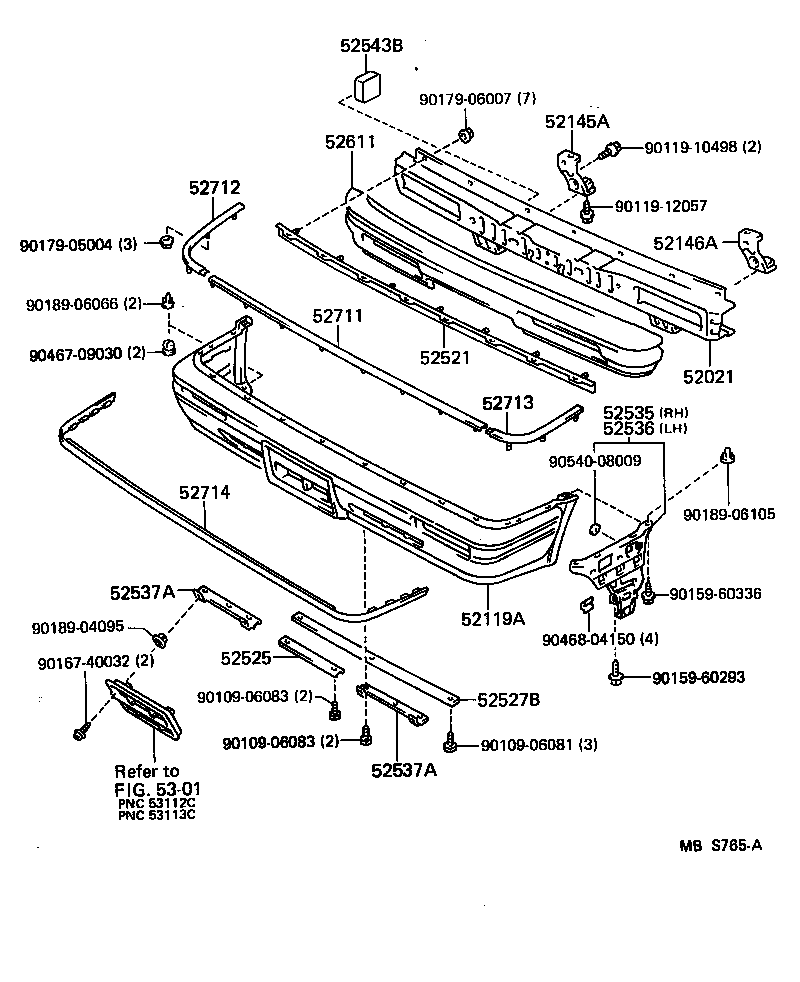

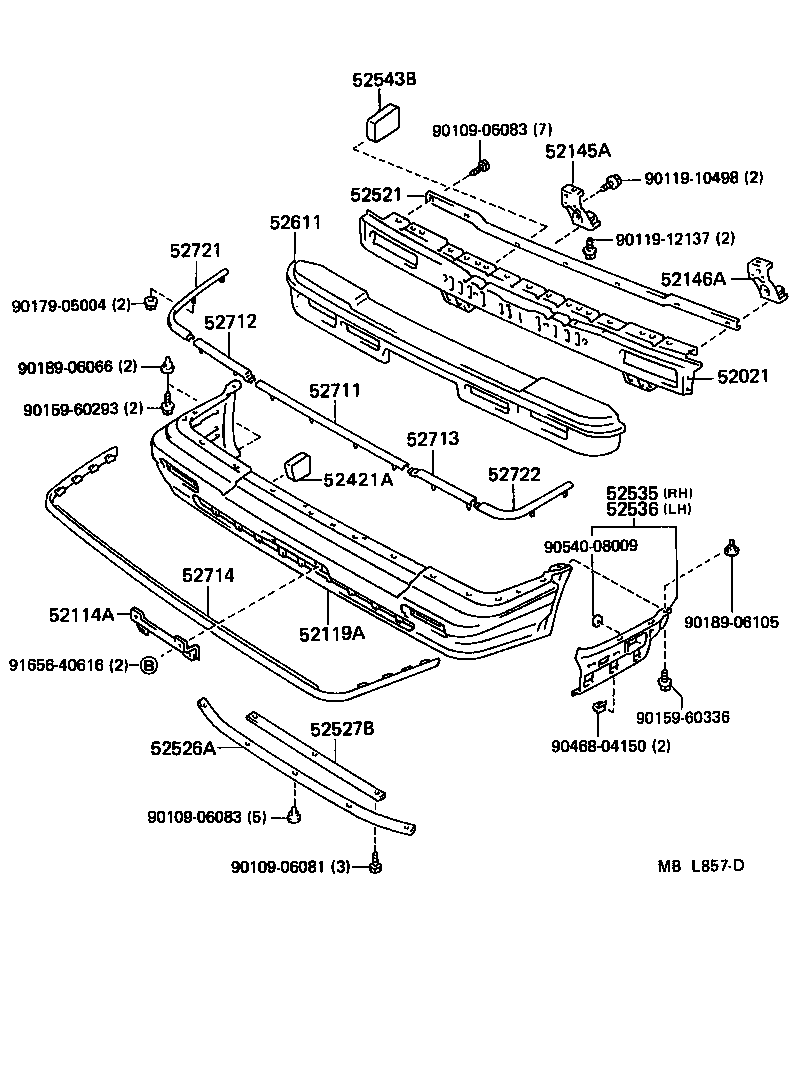

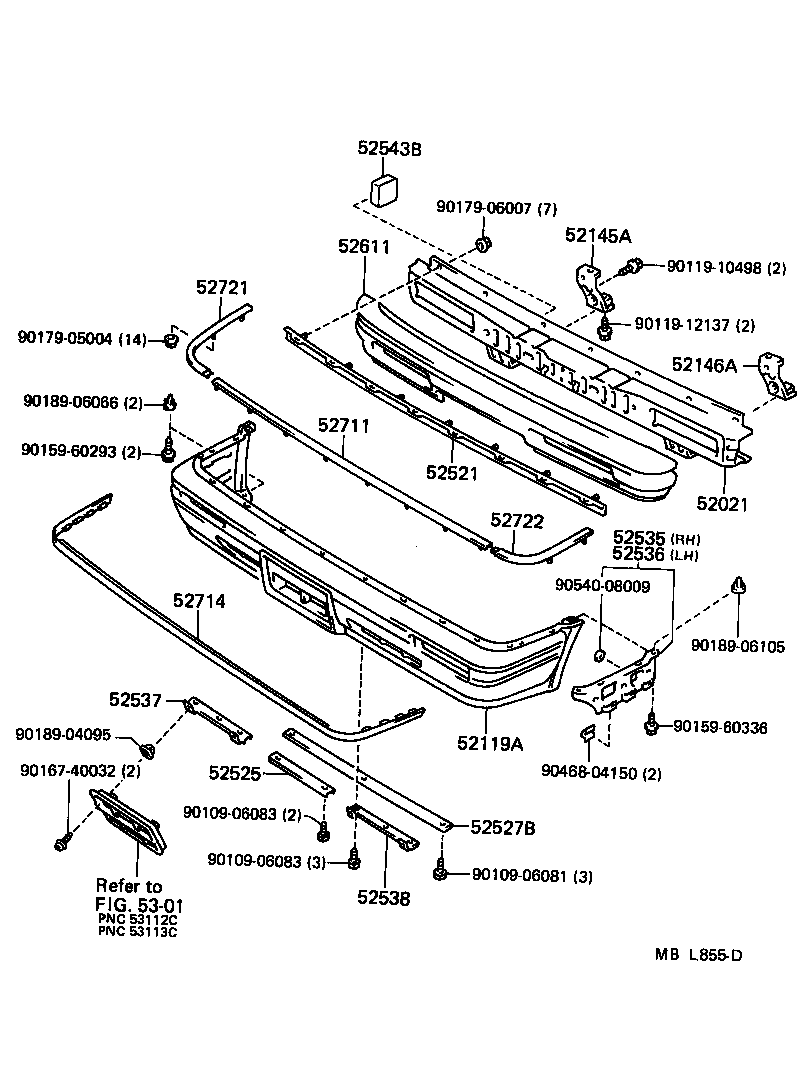

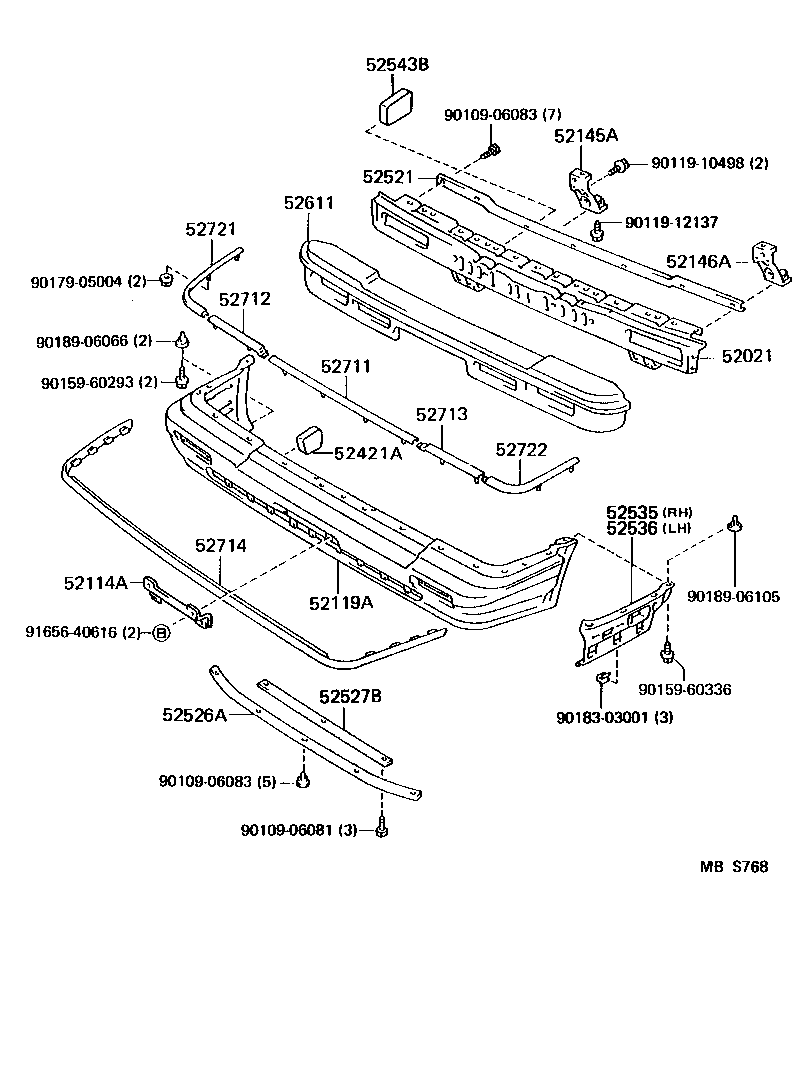

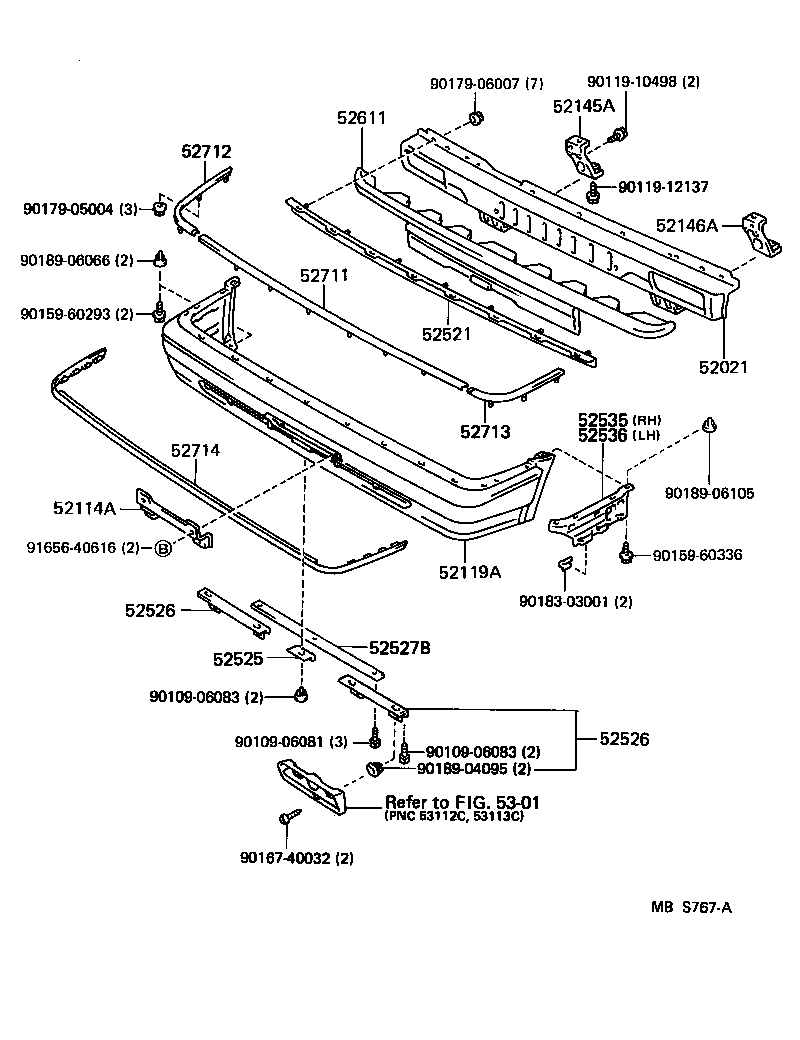

Figure MBM808A MBM808A 1987-09 → 1989-08 Figure MBS766A MBS766A 1989-08 → — Figure MBL856B MBL856B 1987-09 → 1989-08 Figure MBS767A MBS767A 1989-08 → — Figure MBL857D MBL857D 1987-09 → 1989-08 Figure MBS768 MBS768 1989-08 → — Figure MBL855D MBL855D 1987-09 → 1989-08 Figure MBS765A MBS765A 1989-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52421A Pad, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52526A Retainer, Front Bumper, Lower NO.1
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52537A Retainer, Front Bumper Side, NO.2
52538 Retainer, Front Bumper End, LH
52541 Protector, Front Bumper
52543B Seal, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
52714 Plug, Front Bumper Moulding, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
