Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

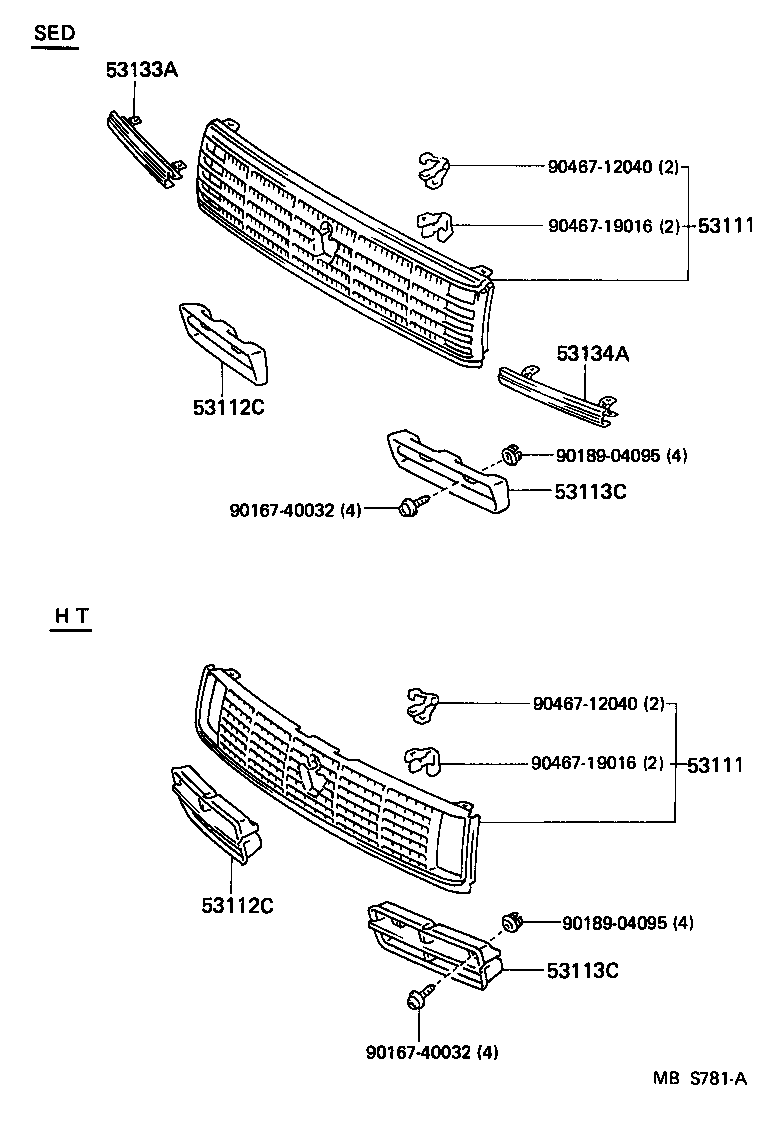

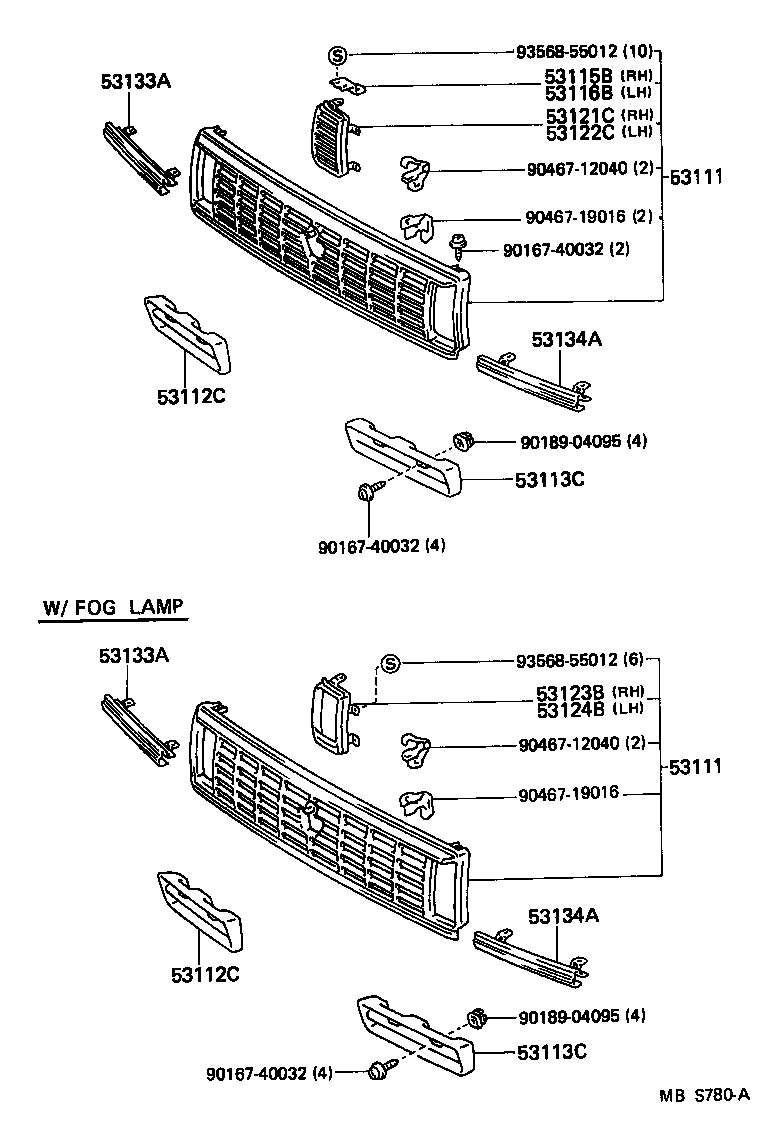

Radiator Grille
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53112C | Grille, Radiator, Lower RH |
| 53113C | Grille, Radiator, Lower LH |
| 53115B | Bracket, Radiator Grille |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53121C | Plate, Radiator Grille Finish, RH |
| 53122C | Plate, Radiator Grille Finish, LH |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
| 53133A | Door, Headlamp, Lower RH |
| 53134A | Door, Headlamp, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
