Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

27 part groups · 2 illustrations

Illustrations

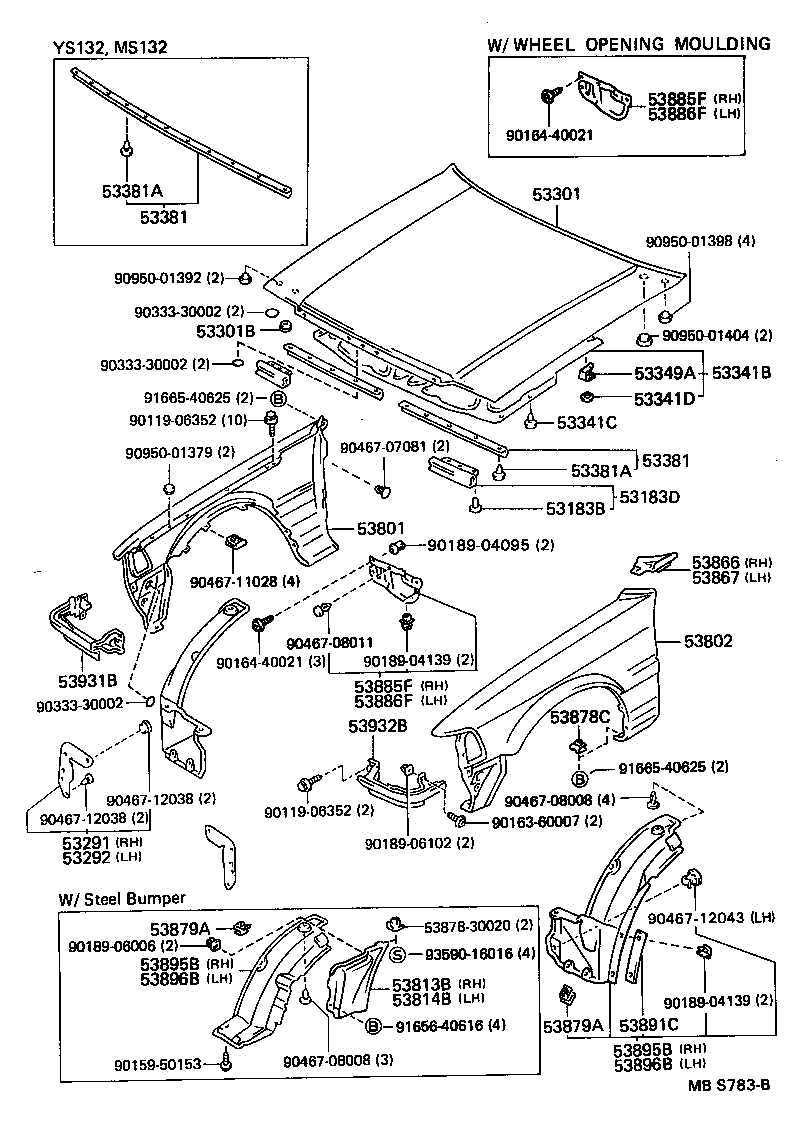

Figure MBL937G MBL937G 1987-09 → 1989-08 Figure MBS783B MBS783B 1989-08 → —

Part groups

PNCDescription
53183B Clip(FOR HEADLAMP COVER SEAL)
53183D Seal, Headlamp Cover TO Hood
53291 Seal, Radiator Support TO Frame, RH
53292 Seal, Radiator Support TO Frame, LH
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53341D Clip(FOR HOOD INSULATER)
53349A Retainer, Hood Insulator
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53878C Spacer, Front Fender
53879A Retainer, Front Fender Liner
53885F Shield, Front Fender Splash, Rear RH
53886F Shield, Front Fender Splash, Rear LH
53891C Seal, Front Fender Splash Sheild, Front
53895B Shield, Front Fender Splash, Front RH
53896B Shield, Front Fender Splash, Front LH
53931B Panel, Front End, RH
53932B Panel, Front End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
