Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

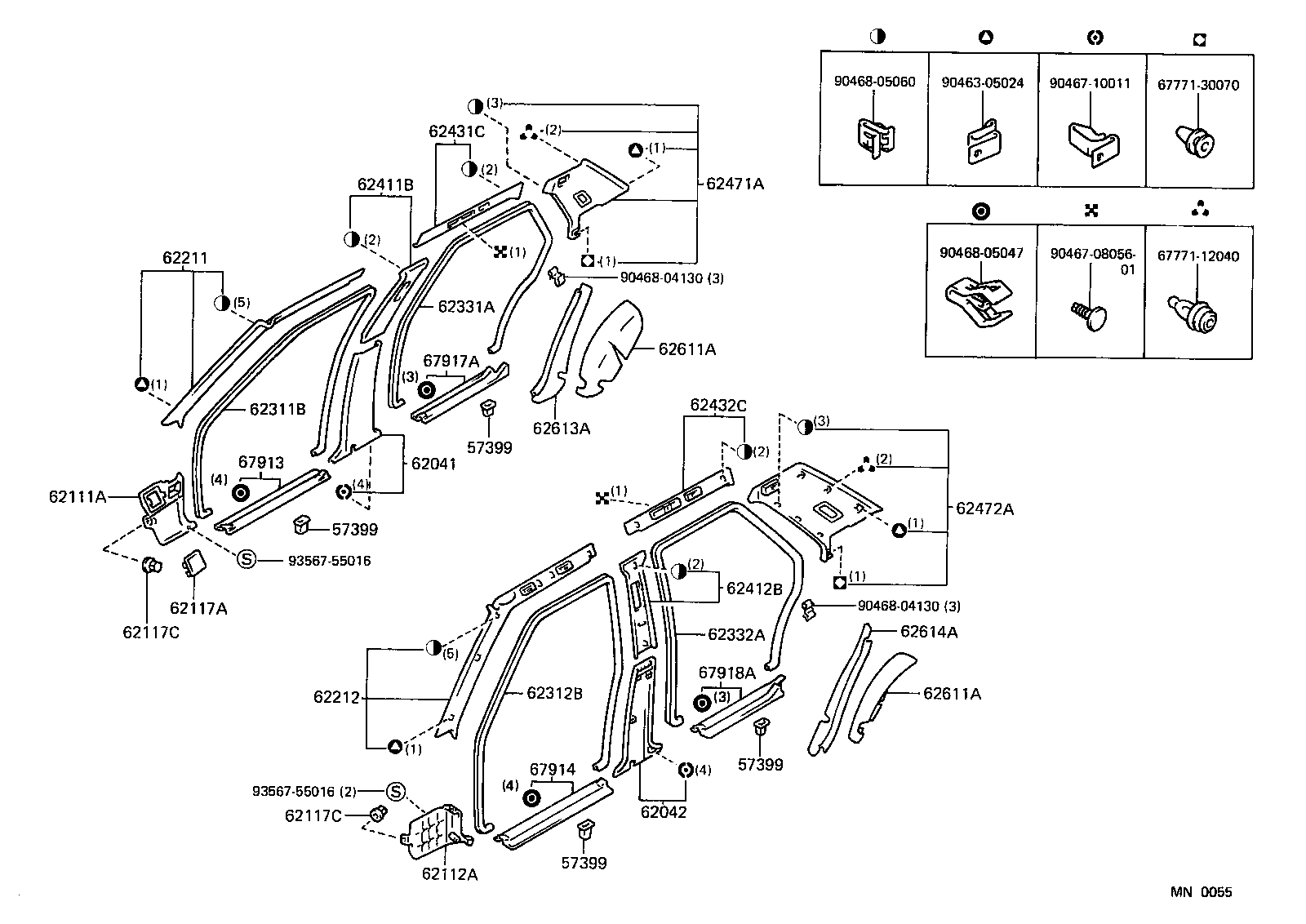

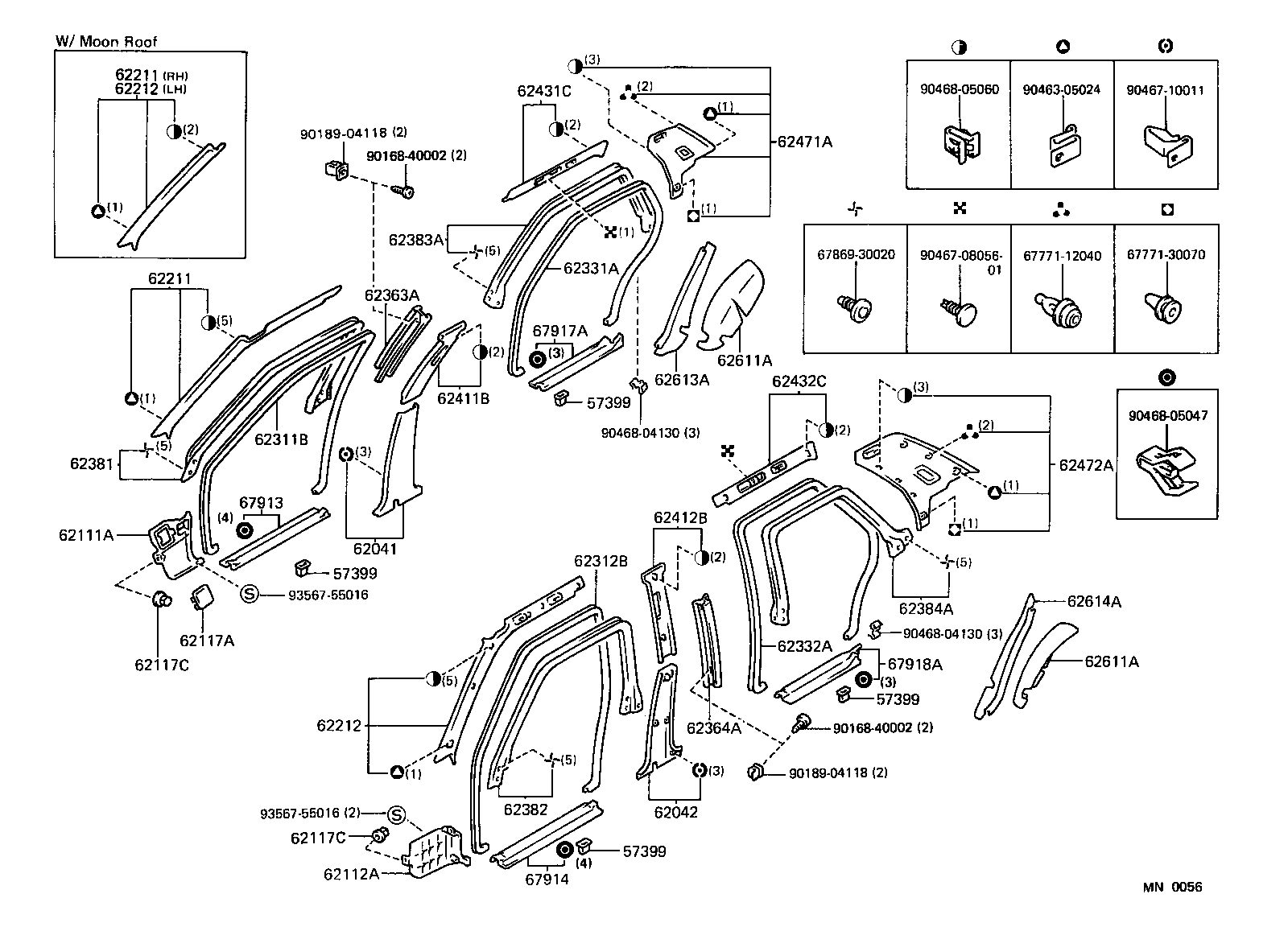

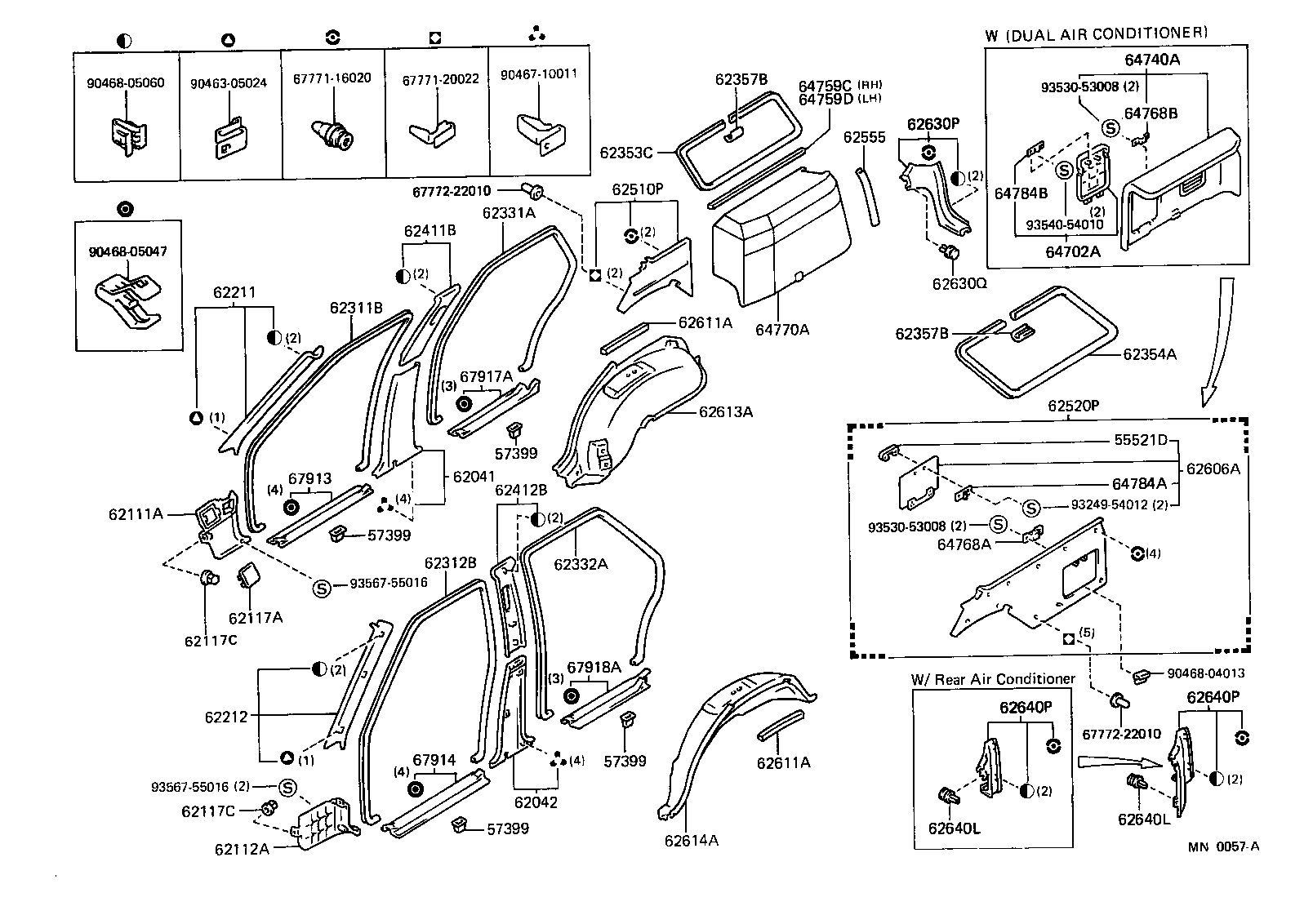

Inside Trim Board & Door Opening Trim Moulding
58 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55521D | Knob, Quarter Trim Lid |
| 57399 | Cover, Front Step Hole |
| 62041 | Panel Sub-assy, Center Pillar Garnish, Lower RH |
| 62042 | Panel Sub-assy, Center Pillar Garnish, Lower LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62353C | Trim, Quarter Window Inside, RH |
| 62354A | Trim, Quarter Window Inside, LH |
| 62357B | Cover, Quarter Window Inside Trim |
| 62363A | Retainer, Roof Side Rail Weatherstrip, NO.3 |
| 62364A | Retainer, Roof Side Rail Weatherstrip, NO.4 |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62383A | Weatherstrip, Roof Side Rail, Rear RH |
| 62384A | Weatherstrip, Roof Side Rail, Rear LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411D | Plug, Hole (FOR CENTER PILLAR GARNISH) |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62555 | Trim, Back Side |
| 62606A | Lid Sub-assy, Quarter Trim, LH |
| 62611A | Pad, Quarter Wheel House |
| 62613A | Cover, Quarter Wheel House, RH |
| 62614A | Cover, Quarter Wheel House, LH |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62640L | Clip(FOR QUARTER TRIM) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 64702A | Cover Sub-assy, Deck Trim Side Service Hole |
| 64740A | Panel Assy, Deck Trim Side, LH |
| 64759C | Silencer, Spare Wheel Cover End, RH |
| 64759D | Silencer, Spare Wheel Cover End, LH |
| 64768A | Stopper, Quarter Trim Lid |
| 64768B | Stopper, Quarter Trim Lid |
| 64770A | Cover Assy, Spare Wheel |
| 64784A | Hook, Quarter Trim Lid |
| 64784B | Hook, Quarter Trim Lid |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
