Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

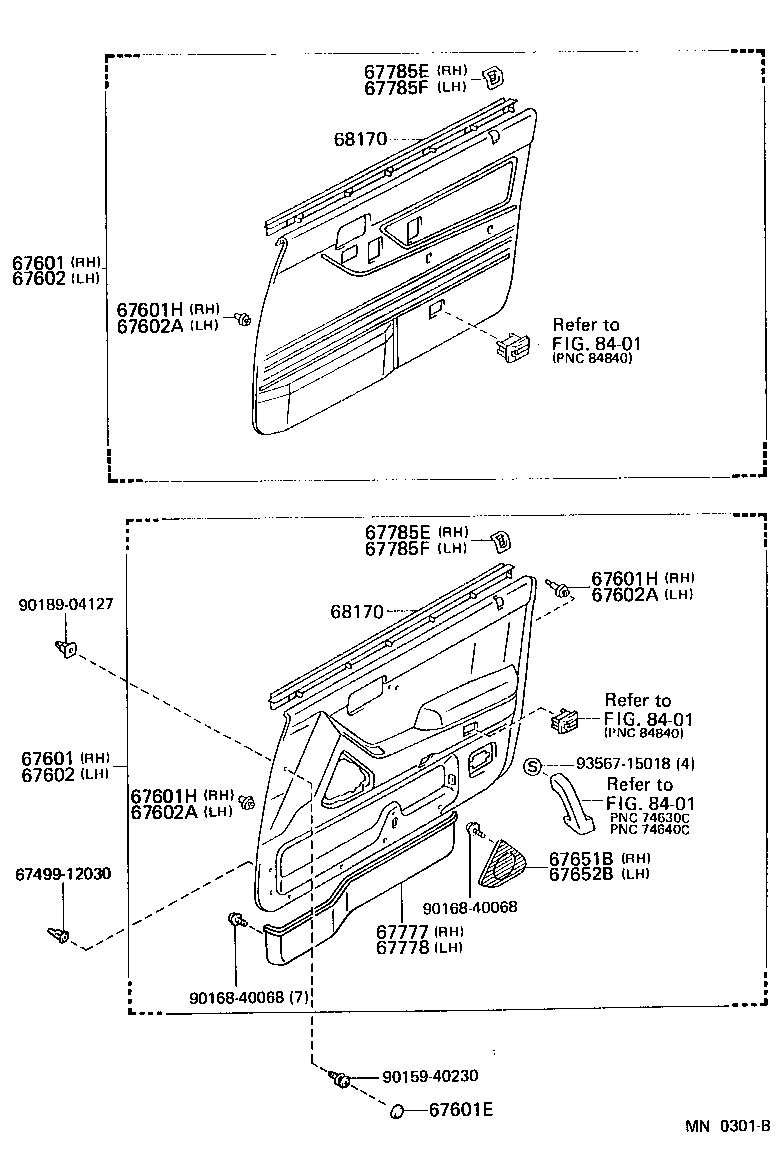

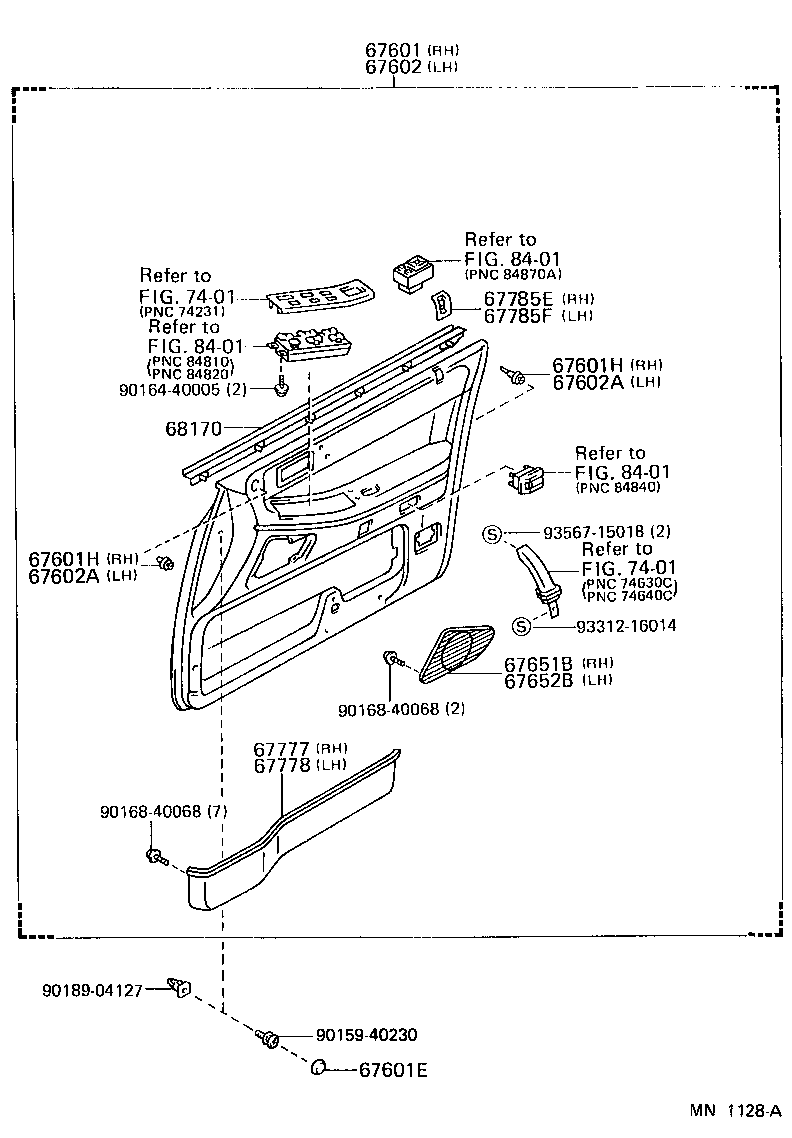

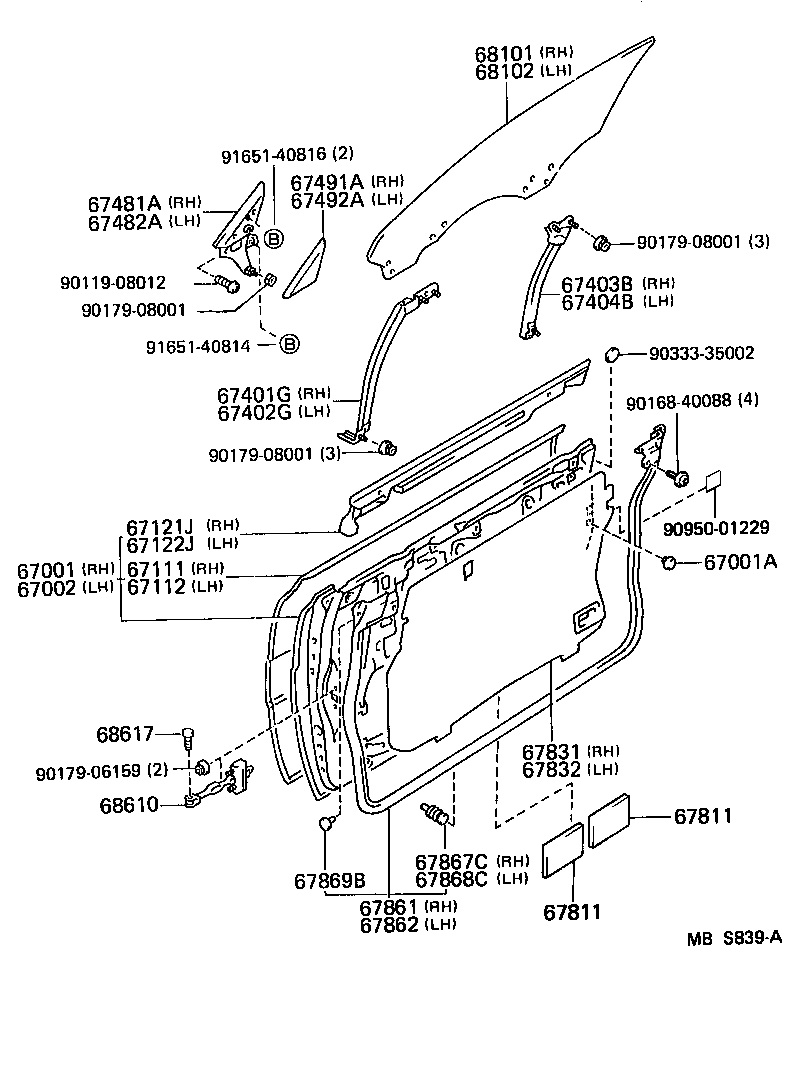

Front Door Panel & Glass
45 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67121J | Reinforcement, Front Door Outside Panel, RH |
| 67122J | Reinforcement, Front Door Outside Panel, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67401G | Guide Sub-assy, Front Door Window, Front RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67402G | Guide Sub-assy, Front Door Window, Front LH |
| 67403B | Guide Sub-assy, Front Door Window, Rear RH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404B | Guide Sub-assy, Front Door Window, Rear LH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601E | Cap(FOR FRONT DOOR TRIM BOARD) |
| 67601H | Retainer, Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67651B | Grille, Speaker Door, RH |
| 67652B | Grille, Speaker Door, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67785E | Holder, Front Door Lock Control Knob, RH |
| 67785F | Holder, Front Door Lock Control Knob, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
