Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

19 part groups · 2 illustrations

Illustrations

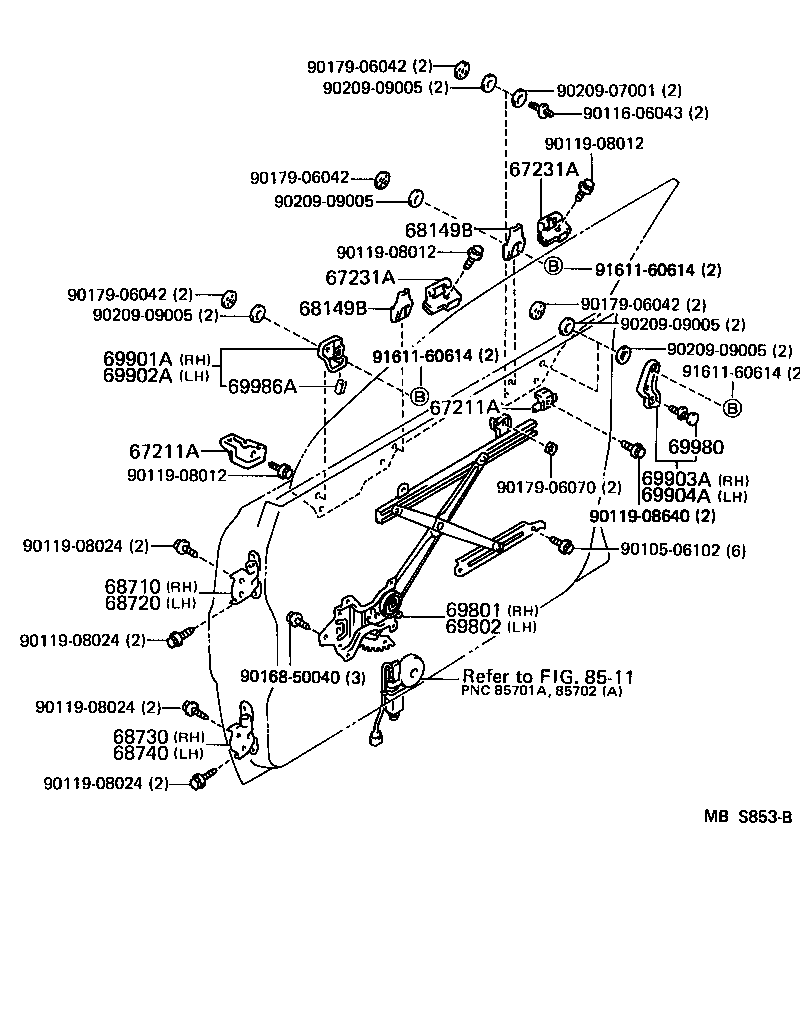

Figure MBM112C MBM112C 1987-09 → — Figure MBS853B MBS853B 1987-09 → —

Part groups

PNCDescription
67211A Stop, Front Door Window, Upper
67231A Support, Front Door Trim
68149B Stabilizer, Front Door Glass Male
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69839A Pad, Front Door Window Regulator
69901A Bracket Sub-assy, Front Door Glass, RH
69902A Bracket Sub-assy, Front Door Glass, LH
69903A Bracket Sub-assy, Front Door Glass, Rear RH
69904A Bracket Sub-assy, Front Door Glass, Rear LH
69980 Roller Assy, Front Door Glass Guide
69986A Piece, Front Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
