Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

37 part groups · 6 illustrations

Illustrations

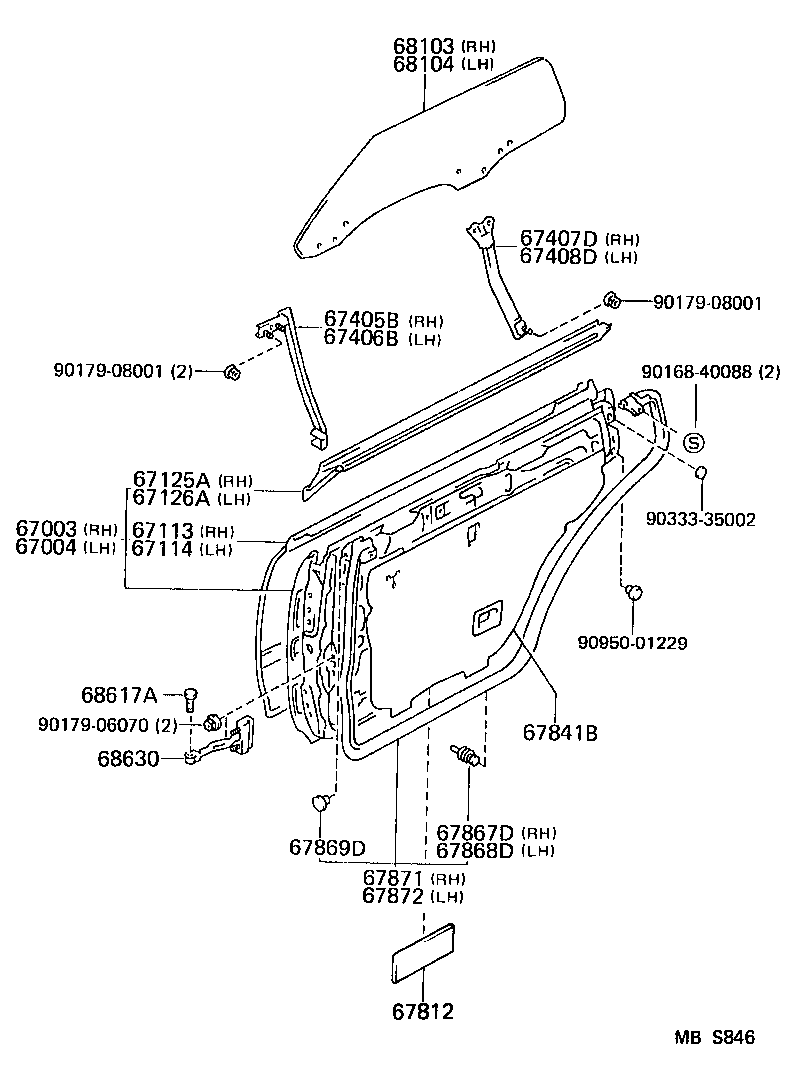

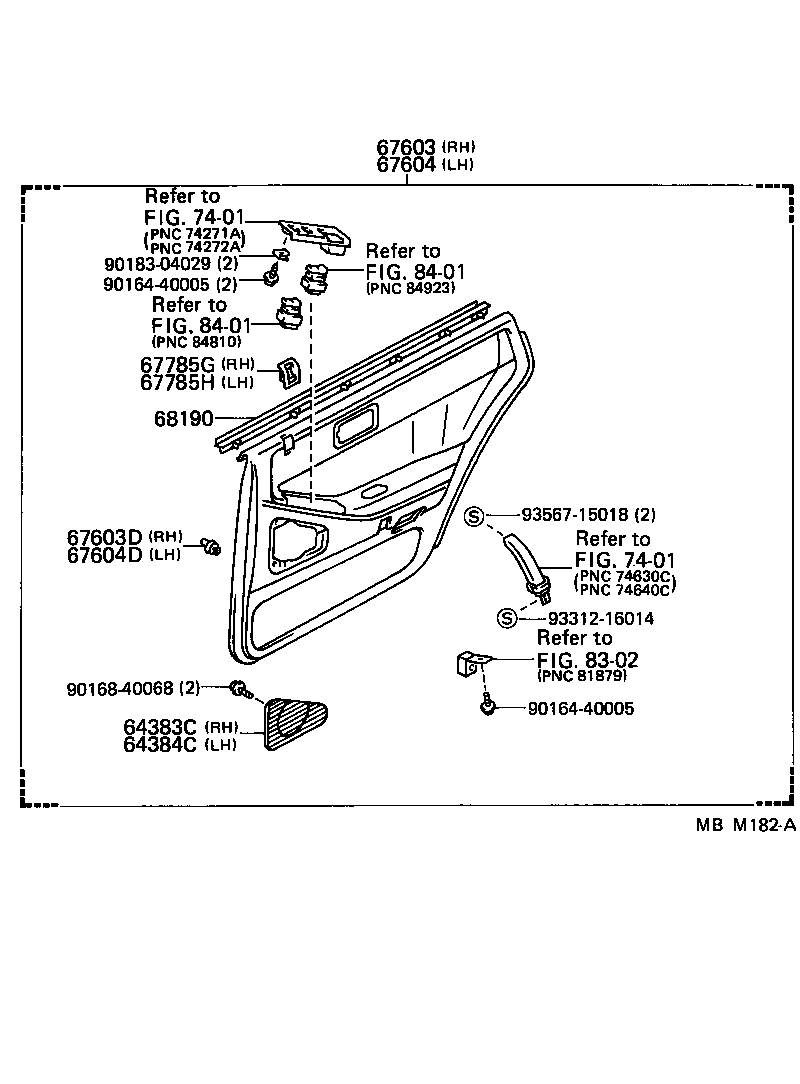

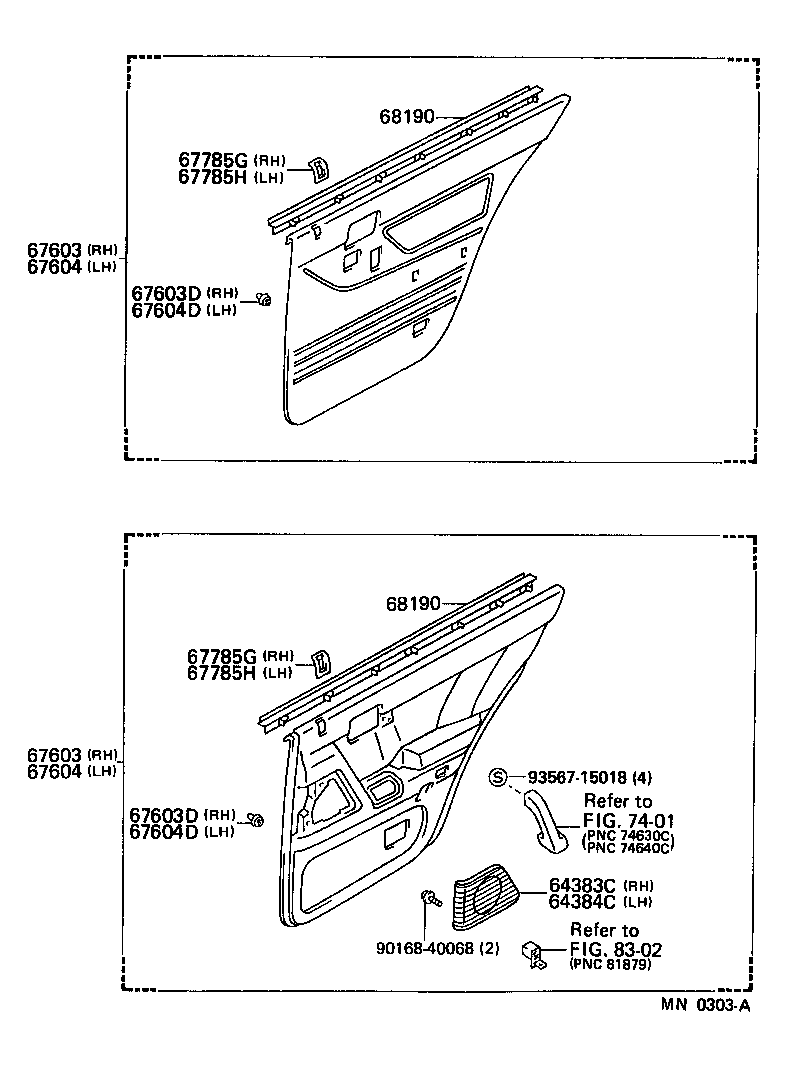

Figure MBS844 MBS844 1987-09 → — Figure MN0303A MN0303A 1987-09 → — Figure MBS846 MBS846 1987-09 → — Figure MBM182A MBM182A 1987-09 → — Figure MN1780A MN1780A 1987-09 → 1989-08 Figure MN1781A MN1781A 1989-08 → —

Part groups

PNCDescription
64383C Grille, Rear Door Speaker, RH
64384C Grille, Rear Door Speaker, LH
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67125A Reinforcement, Rear Door Outside Panel, RH
67126A Reinforcement, Rear Door Outside Panel, LH
67405B Guide Sub-assy, Rear Door Window, Front RH
67406B Guide Sub-assy, Rear Door Window, Front LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67407E Bar Sub-assy, Rear Door Window Division, RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67408E Bar Sub-assy, Rear Door Window Division, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603D Retainer, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67604D Retainer, Rear Door Trim, LH
67785G Holder, Rear Door Lock Control Knob, RH
67785H Holder, Rear Door Lock Control Knob, LH
67812 Pad, Rear Door Silencer
67841B Cover, Rear Door Service Hole
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68123 Glass, Rear Door Window, RH
68124 Glass, Rear Door Window, LH
68142 Run, Rear Door Glass
68188 Weatherstrip, Rear Door Quarter Window, RH
68189 Weatherstrip, Rear Door Quarter Window, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68617A Pin, Rear Door Check
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
