Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

16 part groups · 2 illustrations

Illustrations

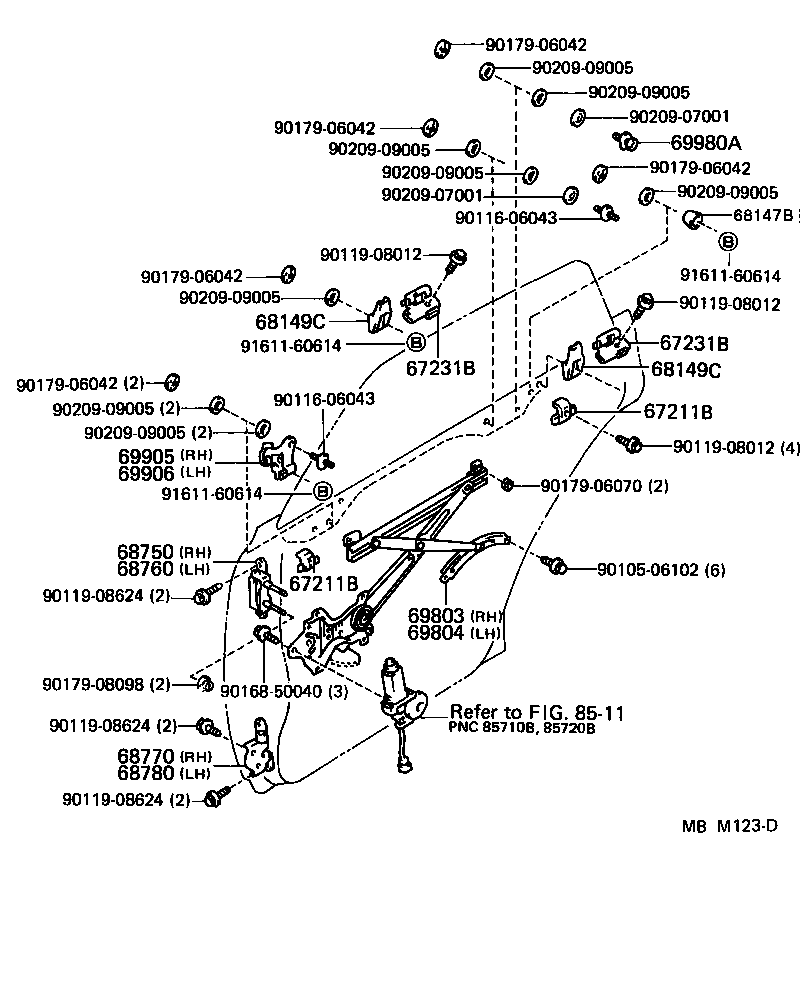

Figure MBS858 MBS858 1987-09 → — Figure MBM123D MBM123D 1987-09 → —

Part groups

PNCDescription
67211B Stop, Rear Door Window, Upper
67231B Support, Rear Door Trim
68147B Stop, Rear Door Glass, Upper
68149C Stabilizer, Rear Door Glass Male
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69260E Handle Assy, Rear Door Window Regulator
69260F Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272B Plate, Rear Door Regulator Inside Handle
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69905 Bracket Sub-assy, Rear Door Glass, RH
69906 Bracket Sub-assy, Rear Door Glass, LH
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
