Toyota Crown
1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General
Discontinued model
Data version 1992-06

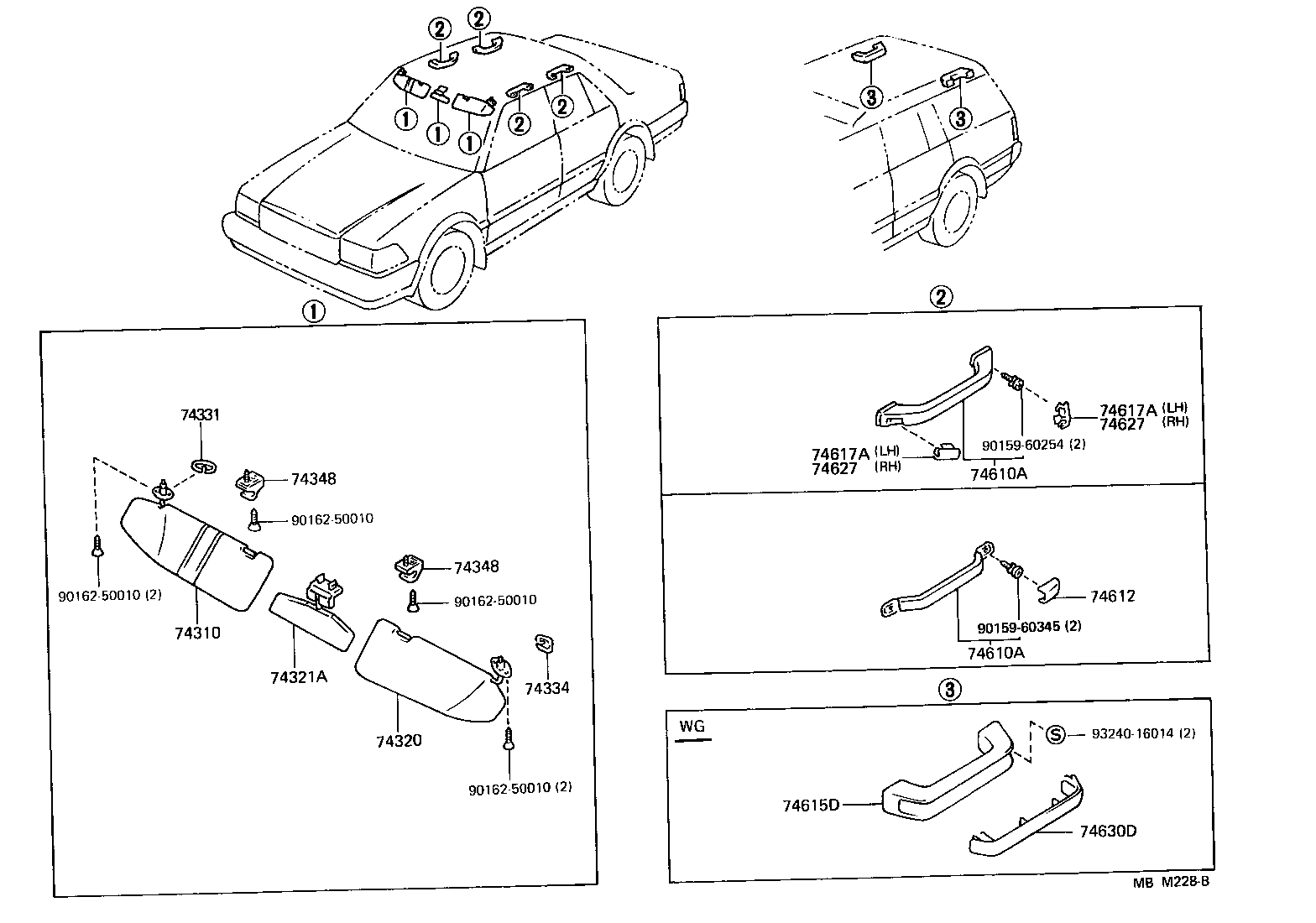

Armrest & Visor
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74237B | Cap, Door Armrest Base |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74321A | Visor, Front |
| 74331 | Case, Visor Arm, RH |
| 74334 | Case, Visor Arm, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74615D | Escutcheon, Door Assist Grip |
| 74617A | Plug, Assist Grip |
| 74627 | Plug, Rear Assist Grip |
| 74630C | Grip Assy, Door Assist, RH |
| 74630D | Escutcheon, Door Assist Grip |
| 74640C | Grip Assy, Door Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
