Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

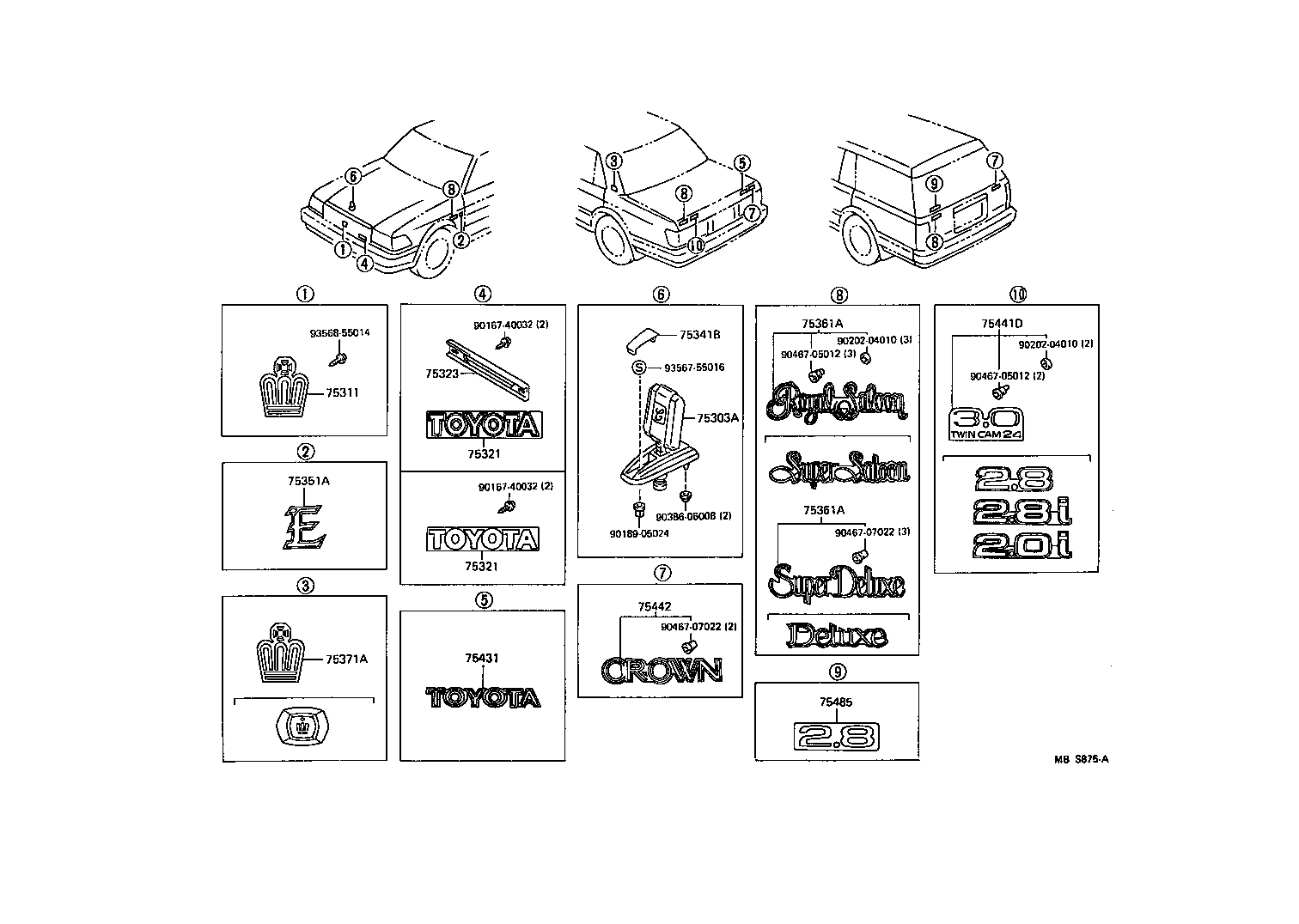

Figure MBM140A MBM140A 1987-09 → 1989-08 Figure MBS875A MBS875A 1989-08 → —

Part groups

PNCDescription
75303A Emblem Sub-assy, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75341B Plate, Hood Name
75351A Emblem, Front Fender
75361A Plate, Front Fender Name, NO.1
75371A Emblem, Quarter Panel
75431 Emblem, Luggage Compartment Door
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
