Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

18 part groups · 3 illustrations

Illustrations

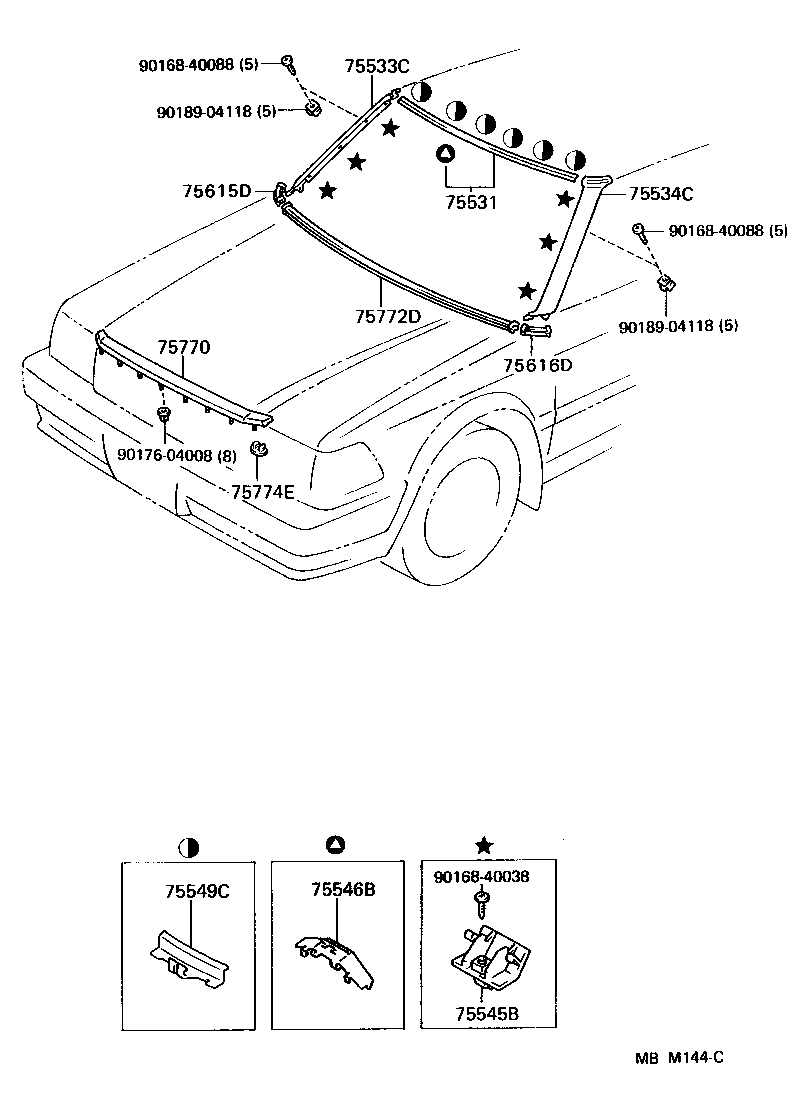

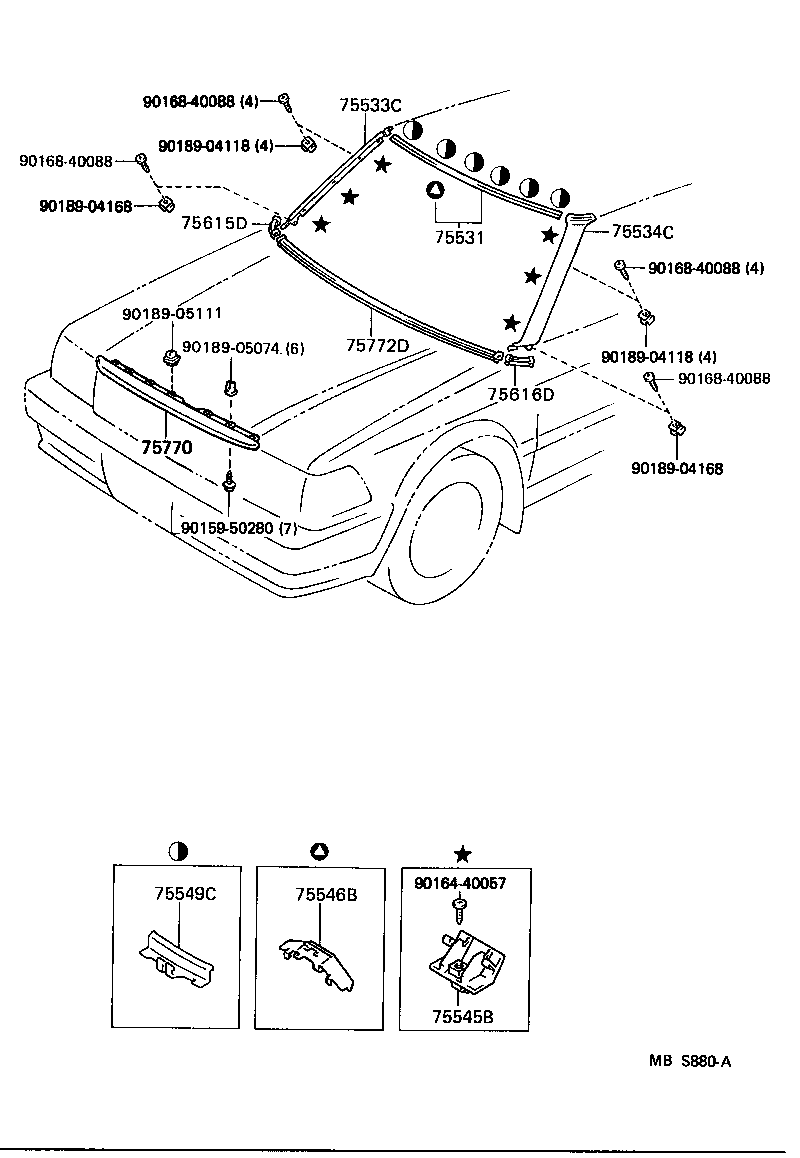

Figure MBS879A MBS879A 1987-09 → — Figure MBM144C MBM144C 1987-09 → 1989-08 Figure MBS880A MBS880A 1989-08 → —

Part groups

PNCDescription
75397C Clip, Outside Moulding, NO.3
75498C Seal, Outside Moulding, NO.2
75531 Moulding, Windshield, Outer Upper
75533C Garnish, Front Pillar, Outer RH
75534C Garnish, Front Pillar, Outer LH
75545B Clip, Windshield Outside Moulding, NO.1
75546B Clip, Windshield Outside Moulding, NO.2
75549C Fastener, Windshield Outside Moulding, NO.2
75615D Moulding, Front Fender, Rear RH
75616D Moulding, Front Fender, Rear LH
75770 Moulding Assy, Hood, Front
75772D Moulding, Hood, Rear
75774E Spacer, Hood Moulding
75786B Retainer, Hood Front Moulding
75961 Clip, Windshield Outside Moulding, NO.4
75962 Clip, Windshield Outside Moulding, NO.5
75963A Clip, Front Pillar Outer Garnish, NO.3
75964A Clip, Front Pillar Outer Garnish, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
